Mirror Component Views

Fig 1: View Of Roof/Headliner Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Inside Rearview Mirror

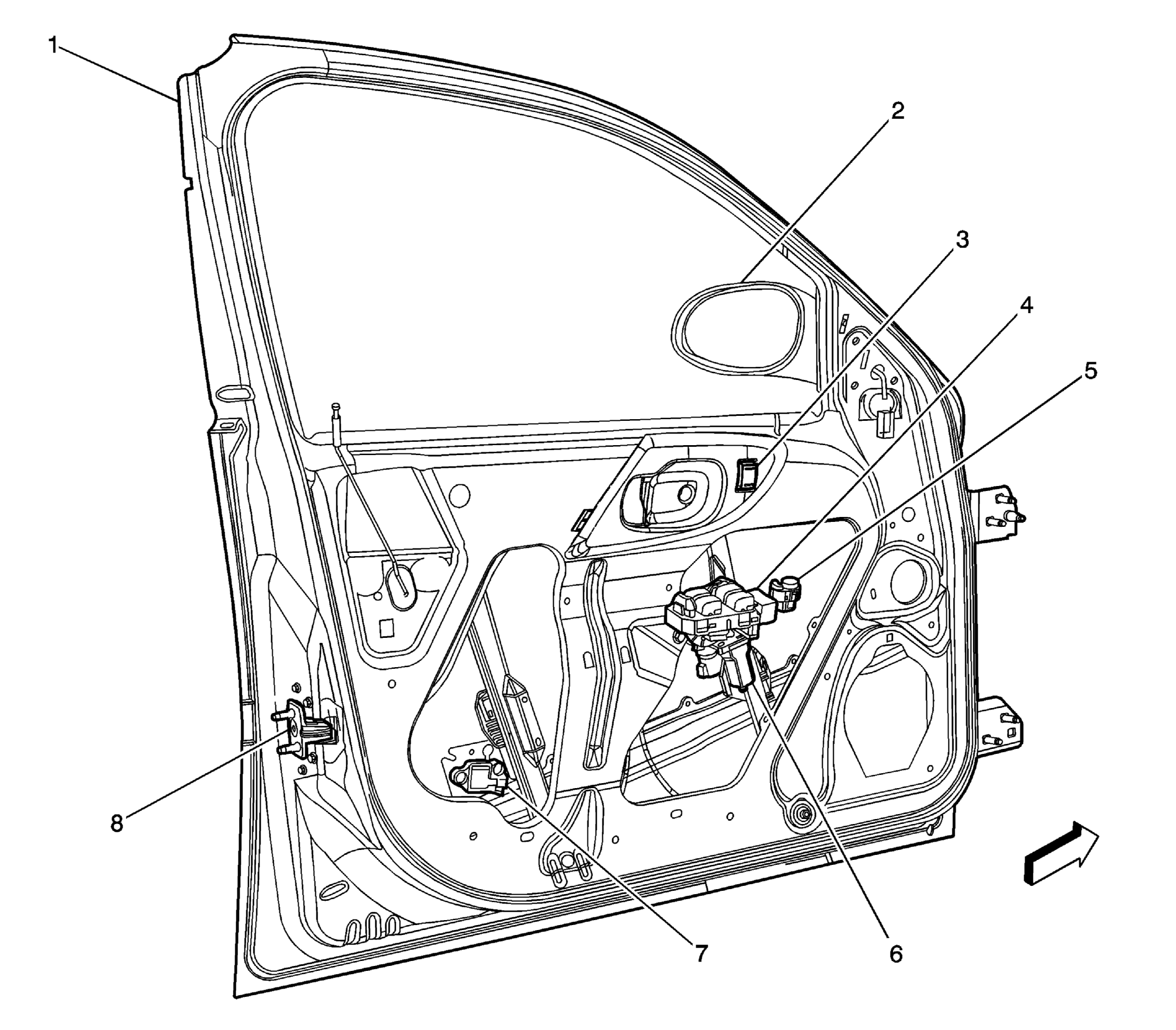

Fig 2: View Of Driver Door (Sedan)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Door Frame
2	Outside Rearview Mirror - Driver
3	Door Lock Switch - Driver
4	Window Switch - Driver
5	Outside Rearview Mirror Switch
6	Window Motor - Driver
7	Inflatable Restraint Side Impact Sensor (SIS) Left (AY1)
8	Door Lock - Driver

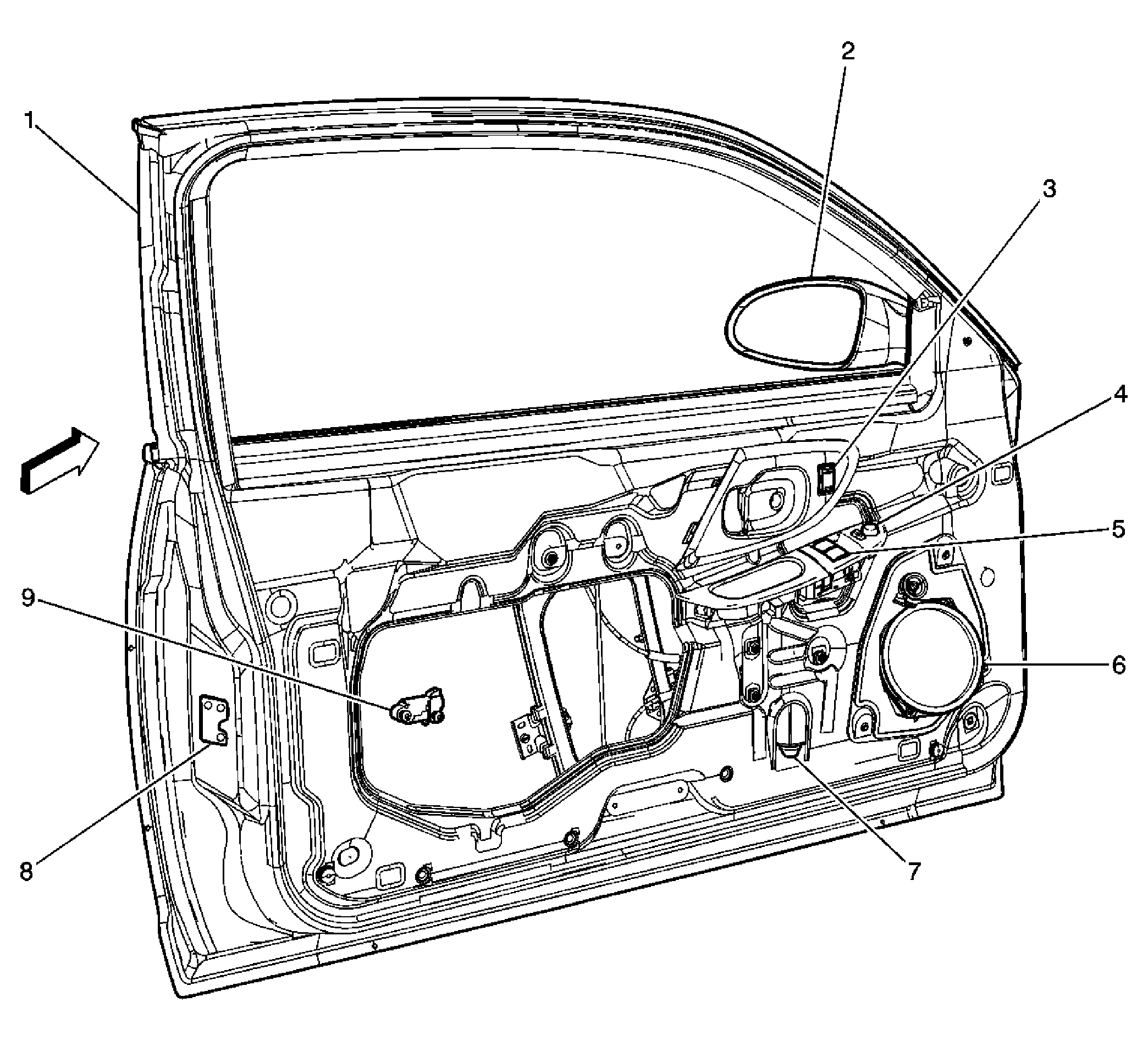

Fig 3: View Of Left Front Door Components (Coupe)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Door Frame
2	Outside Rearview Mirror - Driver
3	Door Lock Switch - Driver
4	Outside Rearview Mirror Switch
5	Window Switch - Driver
6	Speaker - LF Door
7	Window Motor - Driver
8	Door Lock Actuator - Driver
9	Inflatable Restraint Side Impact Sensor (SIS) Left (AJ7)

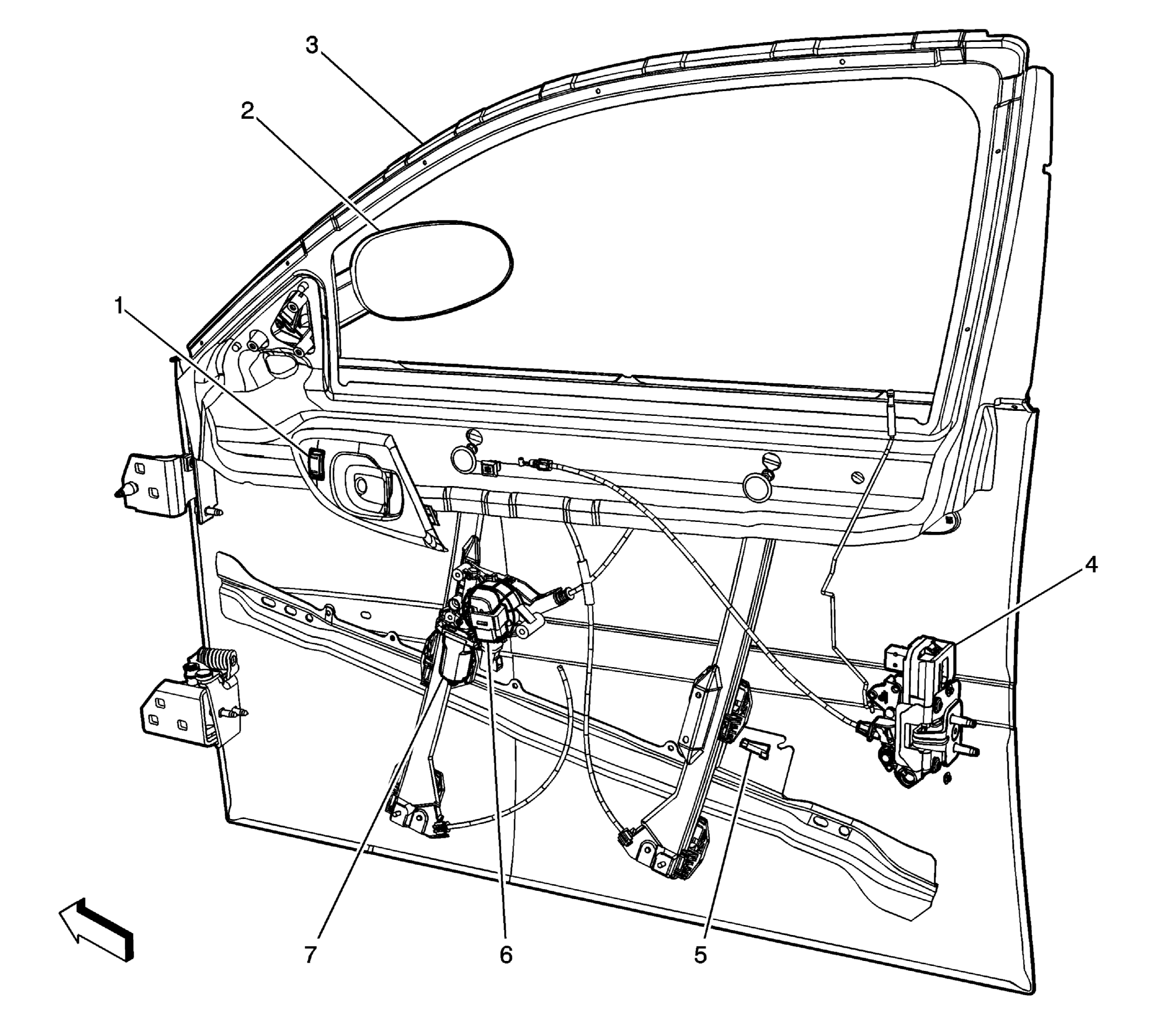

Fig 4: Identifying Passenger Door (Sedan)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Door Lock Switch - Front Passenger
2	Outside Rearview Mirror - Passenger
3	Door Frame
4	Door Lock - Front Passenger
5	Inflatable Restraint Side Impact Sensor (SIS) Right (AY1)
6	Window Switch - Front Passenger
7	Window Motor - Front Passenger

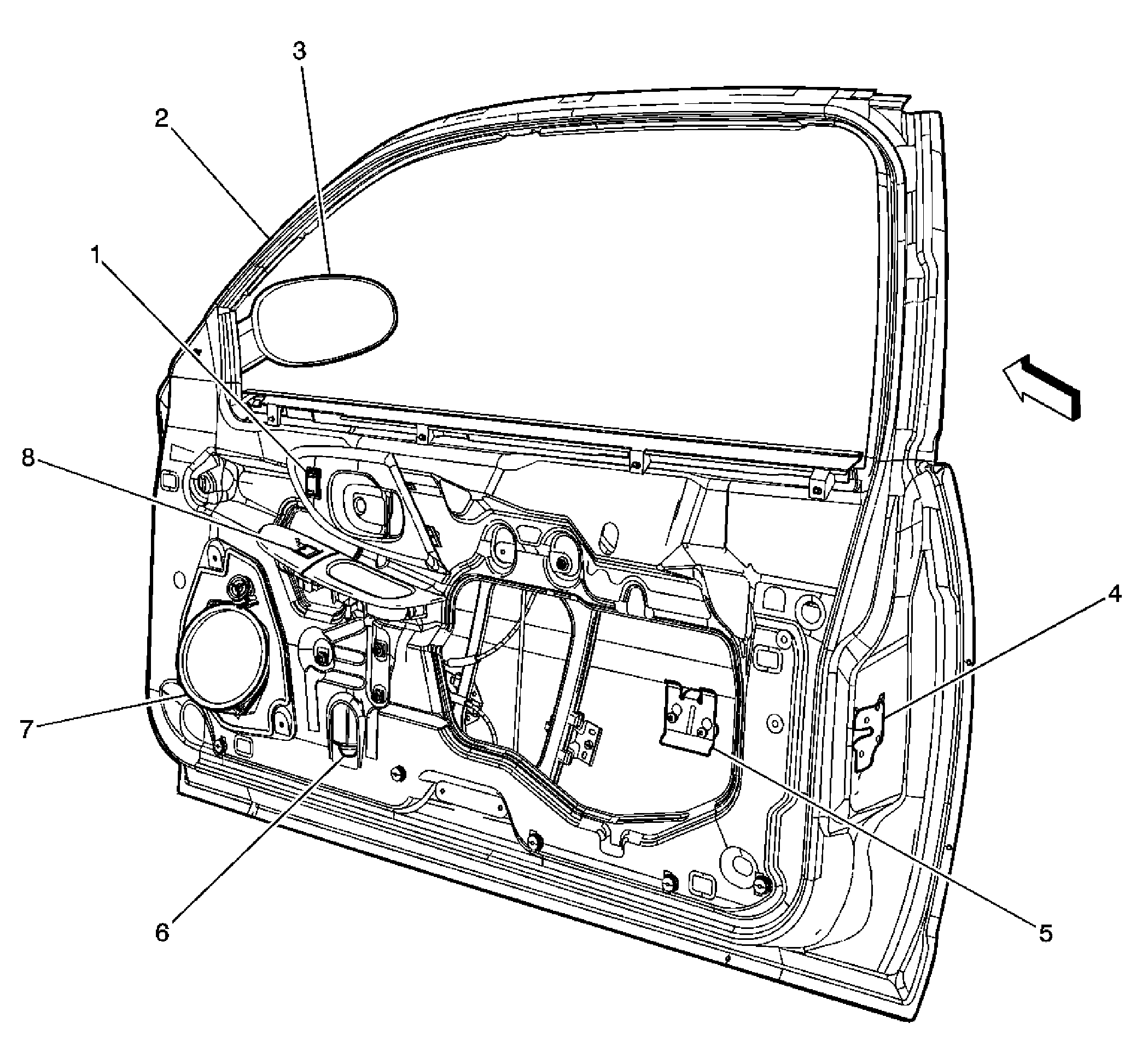

Fig 5: View Of Right Front Door Components (Coupe)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Door Lock Switch - Passenger
2	Door Frame
3	Outside Rearview Mirror - Passenger
4	Door Lock Actuator - Passenger
5	Inflatable Restraint Side Impact Sensor (SIS) Right (AJ7)
6	Window Motor - Front Passenger
7	Speaker - RF Door
8	Window Switch - Passenger

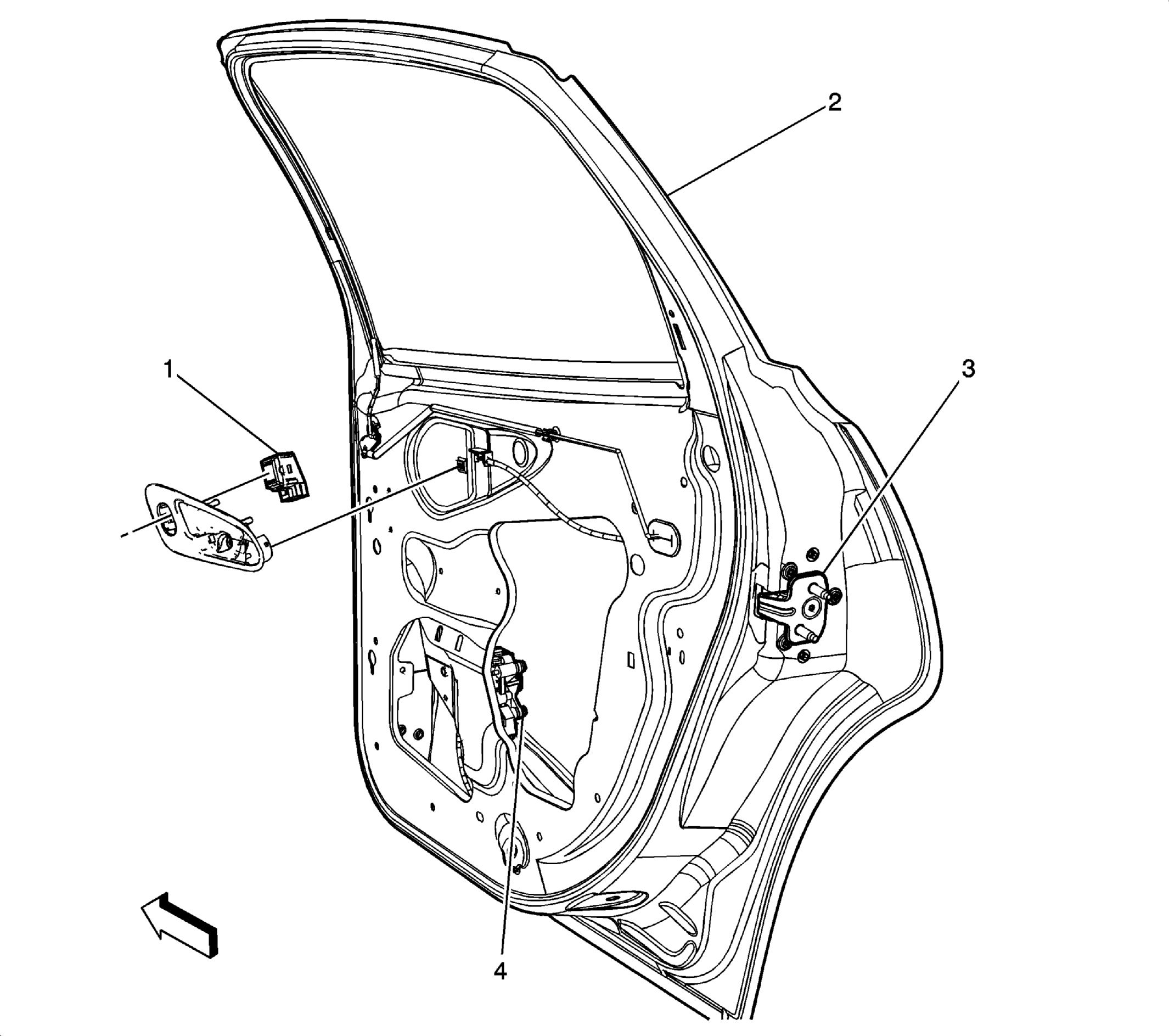

Fig 6: View Of LR Door - Sedan

Courtesy of GENERAL MOTORS CORP.

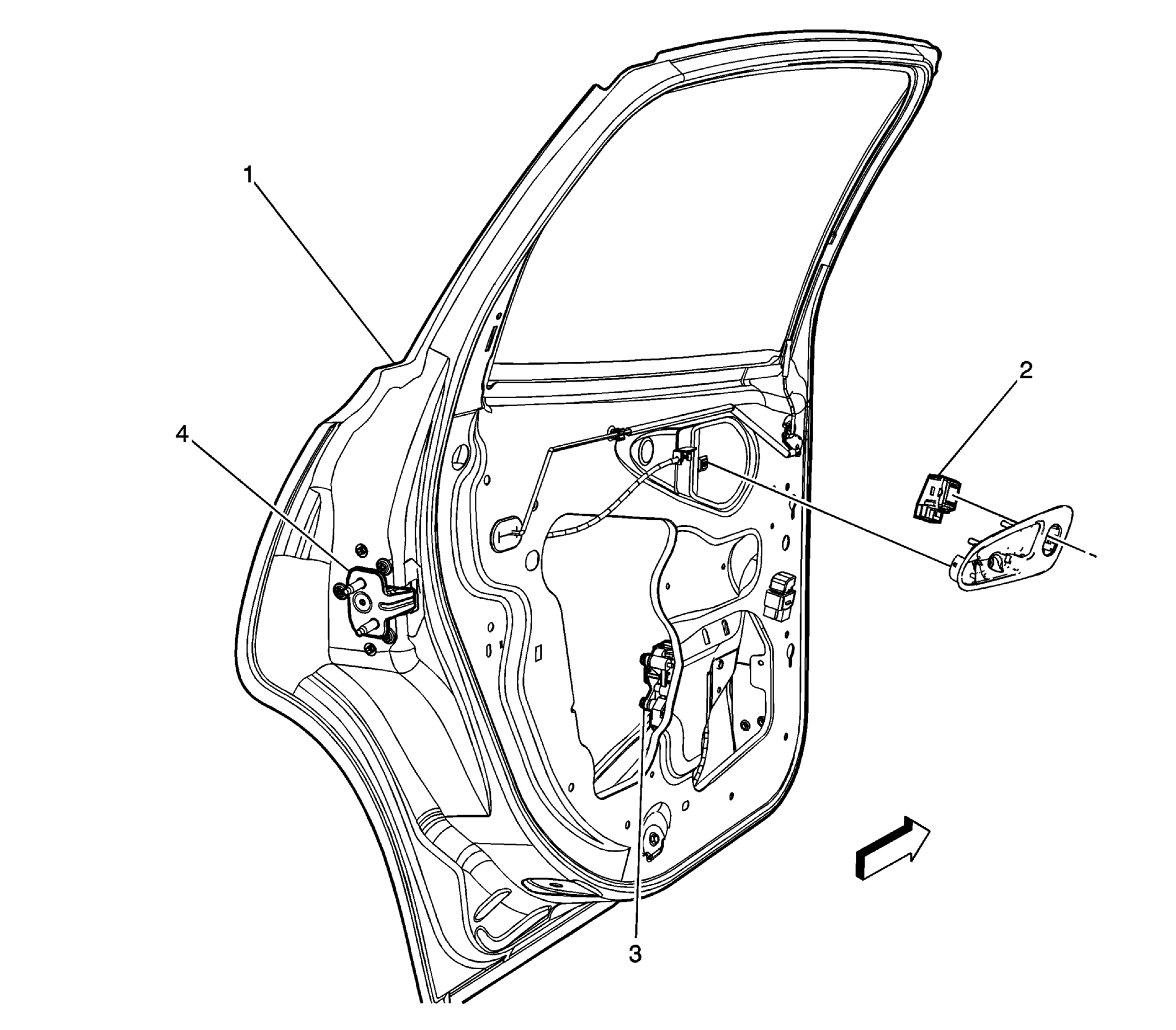

Fig 7: View Of RR Door - Sedan

Courtesy of GENERAL MOTORS CORP.
