Moveable Window Schematics

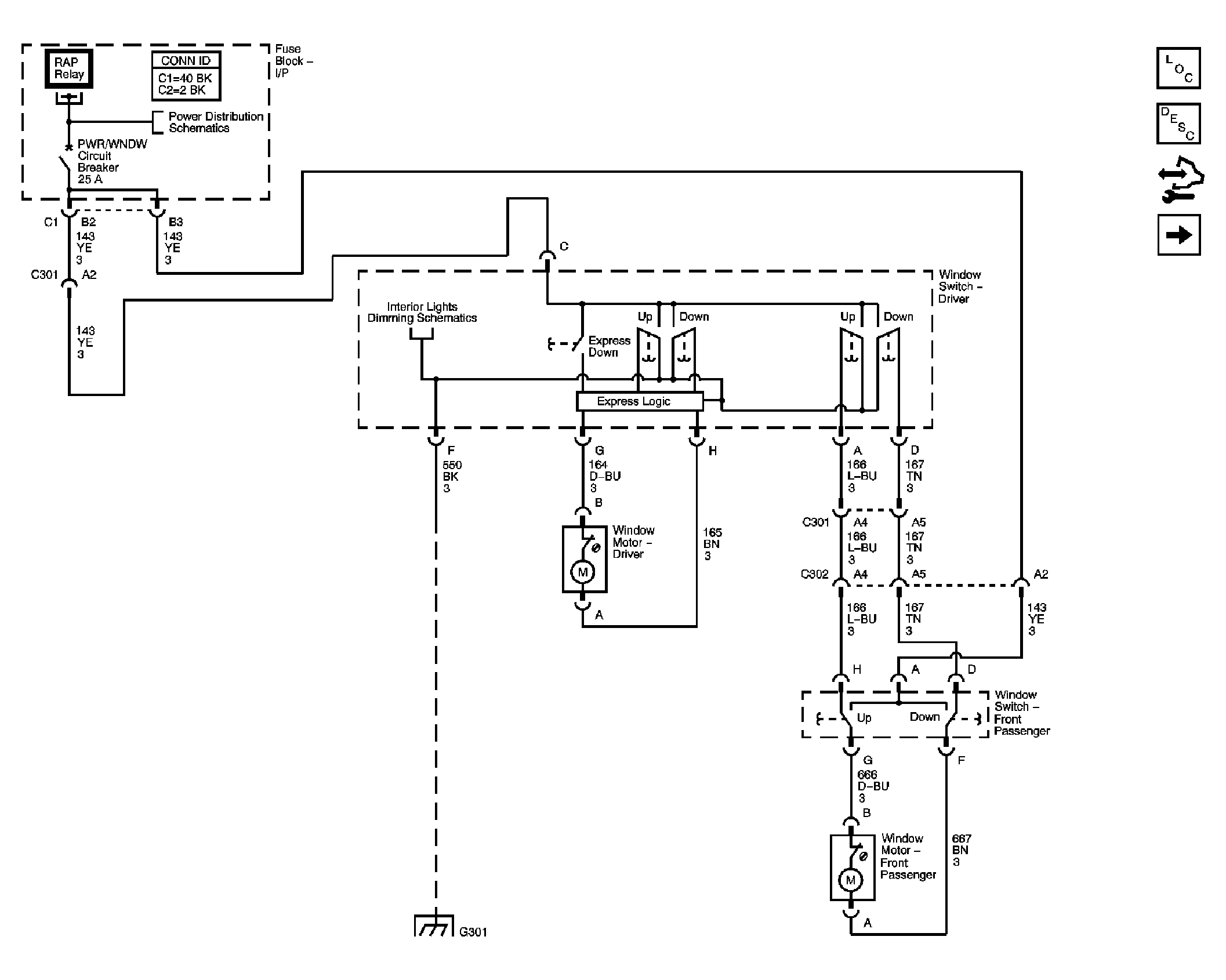

Fig 1: Moveable Window (Coupe) Schematics
GM1761985Courtesy of GENERAL MOTORS CORP.

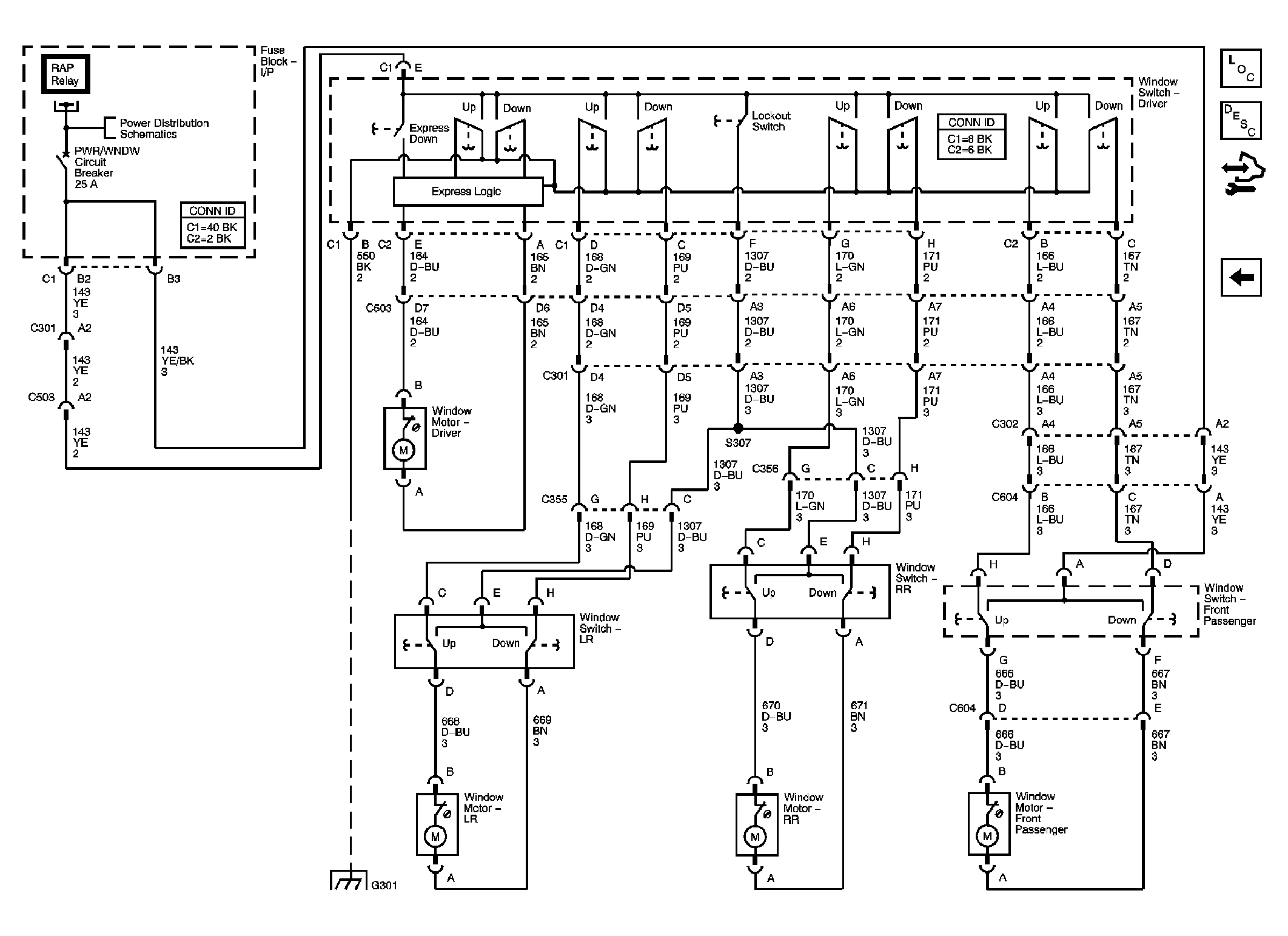

Fig 2: Moveable Window (Sedan) Schematics
GM1761986Courtesy of GENERAL MOTORS CORP.
