Power Seat Systems Component Views
WARNING: This page is about a different car, the 2005 Buick LaCrosse and 2005 Buick Allure. However, it is still accessible from the selected car via links, so may be relevant.
| Callout | Component Name |
|---|---|
| 1 | Lamp Switch Assembly - Fog Lamp |
| 2 | Instrument Panel Cluster (IPC) |
| 3 | Ignition Switch |
| 4 | Air Temperature Sensor - Inside |
| 5 | Sunload Sensor Assembly (CJ2) or Ambient Light Sensor (C67) |
| 6 | Theft LED |
| 7 | Driver Information Center (DIC) |
| 8 | Radio |
| 9 | HVAC Control Module |
| 10 | Heated Seat Switch - Front Passenger |
| 11 | Cigar Lighter |
| 12 | Heated Seat Switch - Driver |
| 13 | Steering Wheel Controls - Right |
| 14 | Cruise Control Switch |
| 15 | Voice Recorder / Cruise Switch Assembly |
| 16 | Steering Wheel Controls - Left |
| 17 | Turn Signal / Multifunction Switch |
| 18 | I/P Dimmer Switch |
| 19 | Lamp Switch Assembly - Interior Lamps |

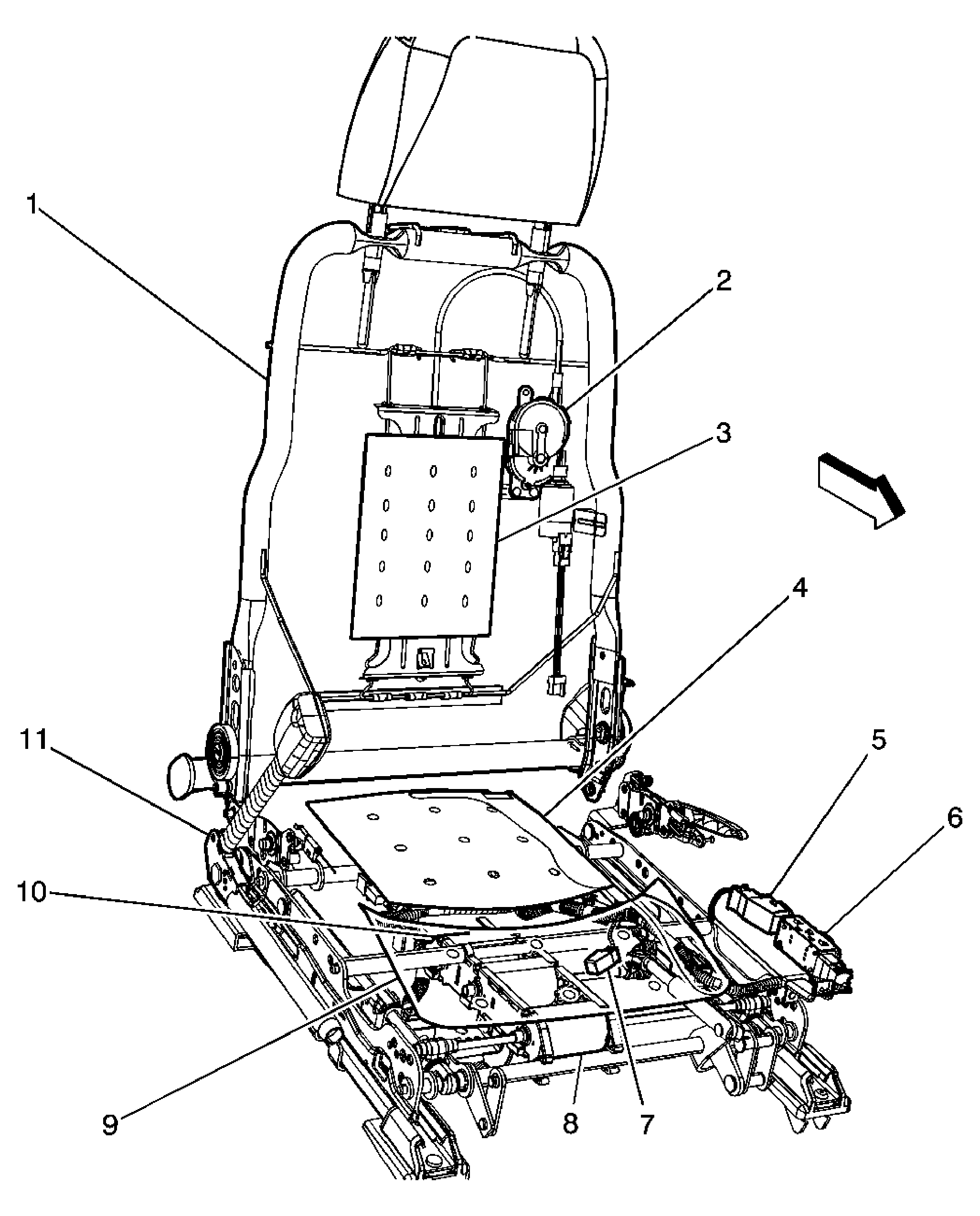

| Callout | Component Name |
|---|---|
| 1 | Seat Frame |
| 2 | Seat Lumbar Motor - Driver (AL9) |
| 3 | Heated Seat Element - Driver Back |
| 4 | Heated Seat Element - Driver Cushion |
| 5 | Seat Lumbar Switch - Driver (AL9) |
| 6 | Seat Adjuster Switch - Driver |
| 7 | Heated Seat Relay |
| 8 | Horizontal Motor (part of the Adjuster Assembly) |
| 9 | Front Vertical Motor (part of the Adjuster Assembly) |
| 10 | Rear Vertical Motor (part of the Adjuster Assembly) |
| 11 | Seat Belt Pretensioner - Left |

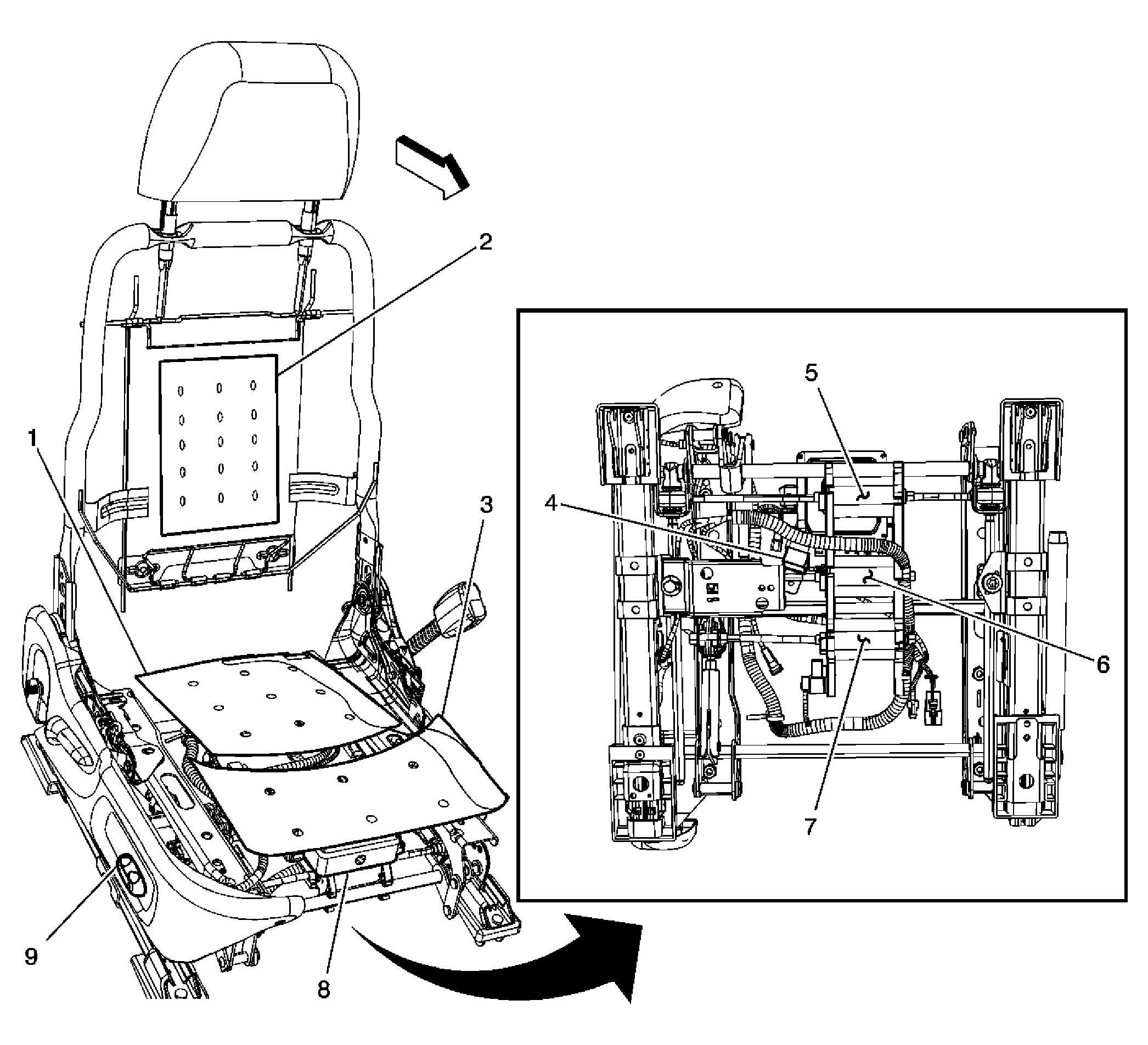

| Callout | Component Name |
|---|---|
| 1 | Heated Seat Element - Passenger Cushion |
| 2 | Heated Seat Element - Passenger Back |
| 3 | Passenger Presence Seat Sensor |
| 4 | Heated Seat Relay |
| 5 | Horizontal Motor (part of the Adjuster Assembly) |
| 6 | Front Vertical Motor (part of the Adjuster Assembly) |
| 7 | Rear Vertical Motor (part of the Adjuster Assembly) |
| 8 | Inflatable Restraint Front Passenger Presence System (PPS) Module |
| 9 | Seat Adjuster Switch - Passenger |
