Installation Procedure

WARNING: This page is about a different car, the 2006 Chevrolet Monte Carlo and 2006 Chevrolet Impala. However, it is still accessible from the selected car via links, so may be relevant.
    Fig 1: Removing/Installing Radiator Hoses To/From Radiator
    GM455227Courtesy of GENERAL MOTORS CORP.
  1. Install the radiator to the lower mounts.
    Fig 2: Condenser Hold Down Bracket & Mount Tabs
    GM1202952Courtesy of GENERAL MOTORS CORP.
    IMPORTANT: Verify that the condenser is fully seated in the radiator mounting tabs.
  2. Install the condenser to the mounting tabs on the radiator (2).
  3. Install the condenser hold down bracket (1) to the radiator and condenser.
  4. Install the lower radiator hose to the radiator.
  5. Use J 38185  to install the lower radiator hose clamp to the radiator.

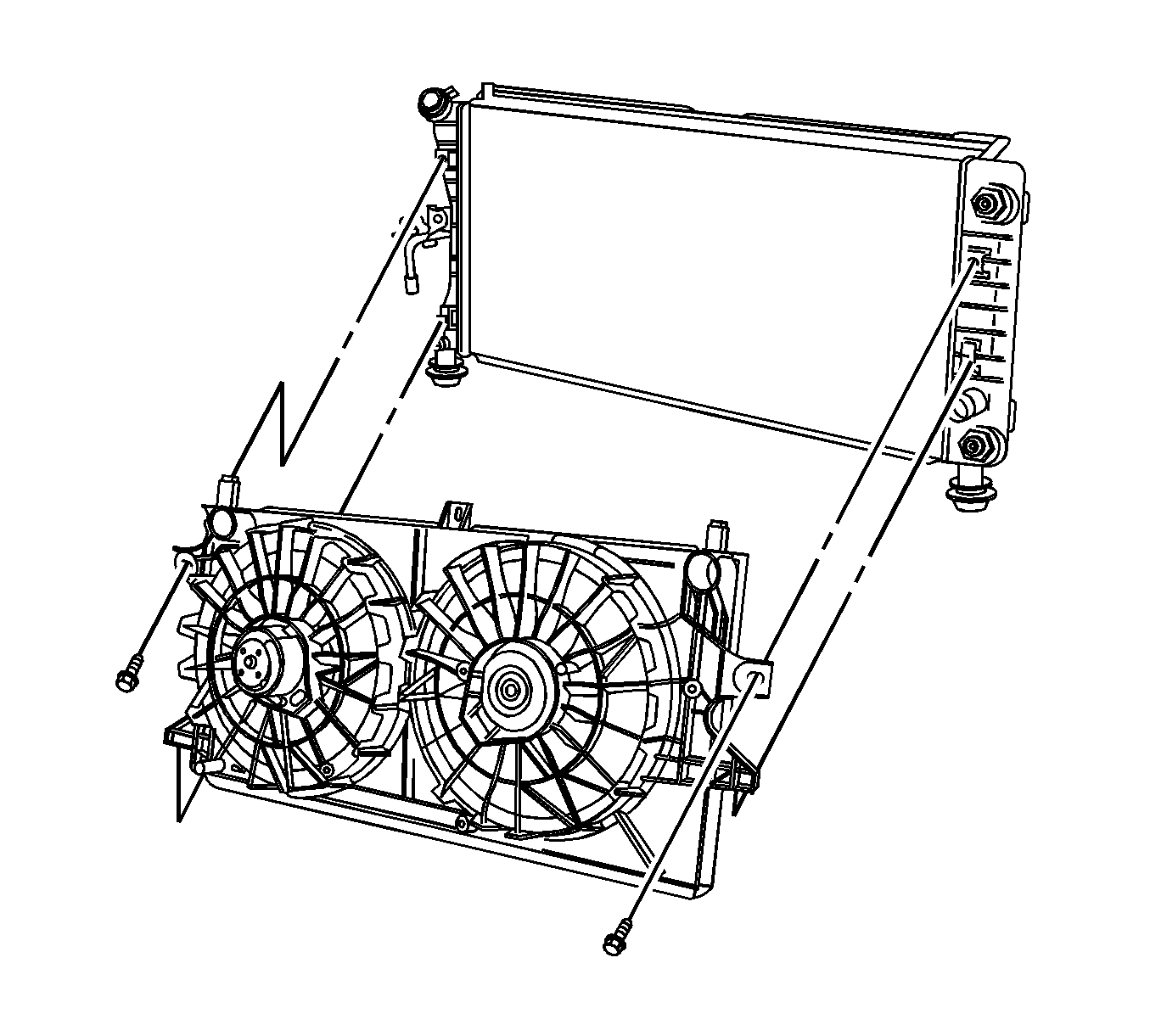

    Fig 3: Cooling Fan Shroud Bolts
    GM1653094Courtesy of GENERAL MOTORS CORP.
    IMPORTANT: Ensure the right and left edge of the fan shroud engages the radiator slots.
  6. Install the cooling fan shroud.
    NOTE: Refer to Fastener Notice .
  7. Install the condenser tubes bracket bolt to the fan shroud.

    Tighten:  Tighten the bolts to 10 N.m (89 lb in).

  8. Install the cooling fan motors electrical harness to the fan shroud clips.
  9. Connect the engine cooling fan motors electrical connectors.
  10. Install the cooling fan shroud bolts.

    Tighten:  Tighten the bolts to 10 N.m (89 lb in).

  11. Connect the transaxle oil cooler pipes to the radiator. Refer to Transmission Fluid Cooler Line Quick Connect Fitting .
    12. Fig 4: View Of Fan Shroud To Radiator Upper Support Brackets
    GM1202856Courtesy of GENERAL MOTORS CORP.
  12. Install the radiator upper support brackets and bolts that connect to the fan shroud.

    Tighten:  Tighten the bolts to 6 N.m (53 lb in).

    13. Fig 5: Identifying Fan Shroud To Condenser Hold Down Bracket Bolt
    GM1202860Courtesy of GENERAL MOTORS CORP.
  13. Install the bolt that connects the fan shroud to the condenser hold down bracket.

    Tighten:  Tighten the bolt to 6 N.m (53 lb in).

  14. Install the PCM harness clip on to the fan shroud.
  15. Install the upper radiator hose to the radiator.
  16. Use J 38185  to install the upper radiator hose clamp to the radiator.
  17. Install the air cleaner assembly. Refer to Air Cleaner Assembly Replacement for the 3.5L engine or to Air Cleaner Assembly Replacement for the 3.9L engine or to Air Cleaner Assembly Replacement for the 5.3L engine.
  18. Install the coolant reservoir hose to the fan shroud.
  19. Install the radiator vent hose to the right upper radiator tank and fill neck.
  20. Install the engine mount struts. Refer to Engine Mount Strut Replacement for the 3.5L engine or to Engine Mount Strut Replacement for the 3.9L engine or to Engine Mount Strut Replacement for the 5.3L engine.
  21. Fill the cooling system. Refer to Draining and Filling Cooling System (LS4 Static Fill)  or Draining and Filling Cooling System (LZE, LZ4, LZ9 Static Fill)  or Draining and Filling Cooling System (9C1, 9C3 Static Fill)  or Draining and Filling Cooling System (LS4 GE 47716 Fill)  or Draining and Filling Cooling System (LZE, LZ4, LZ9, 9C1, 9C3 GE 4771 Fill) .
  22. Connect the negative battery cable. Refer to Battery Negative Cable Disconnect/Connect Procedure (RPOs LZE/LZ4/LZ9) or Battery Negative Cable Disconnect/Connect Procedure (RPO LS4) .
    NOTE: Do NOT overfill the transaxle. The overfilling of the transaxle causes foaming, loss of fluid, shift complaints, and possible damage to the transaxle.
  23. Adjust the transaxle fluid level.
