Immobilizer Component Views

WARNING: This page is about a different car, the 2007 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

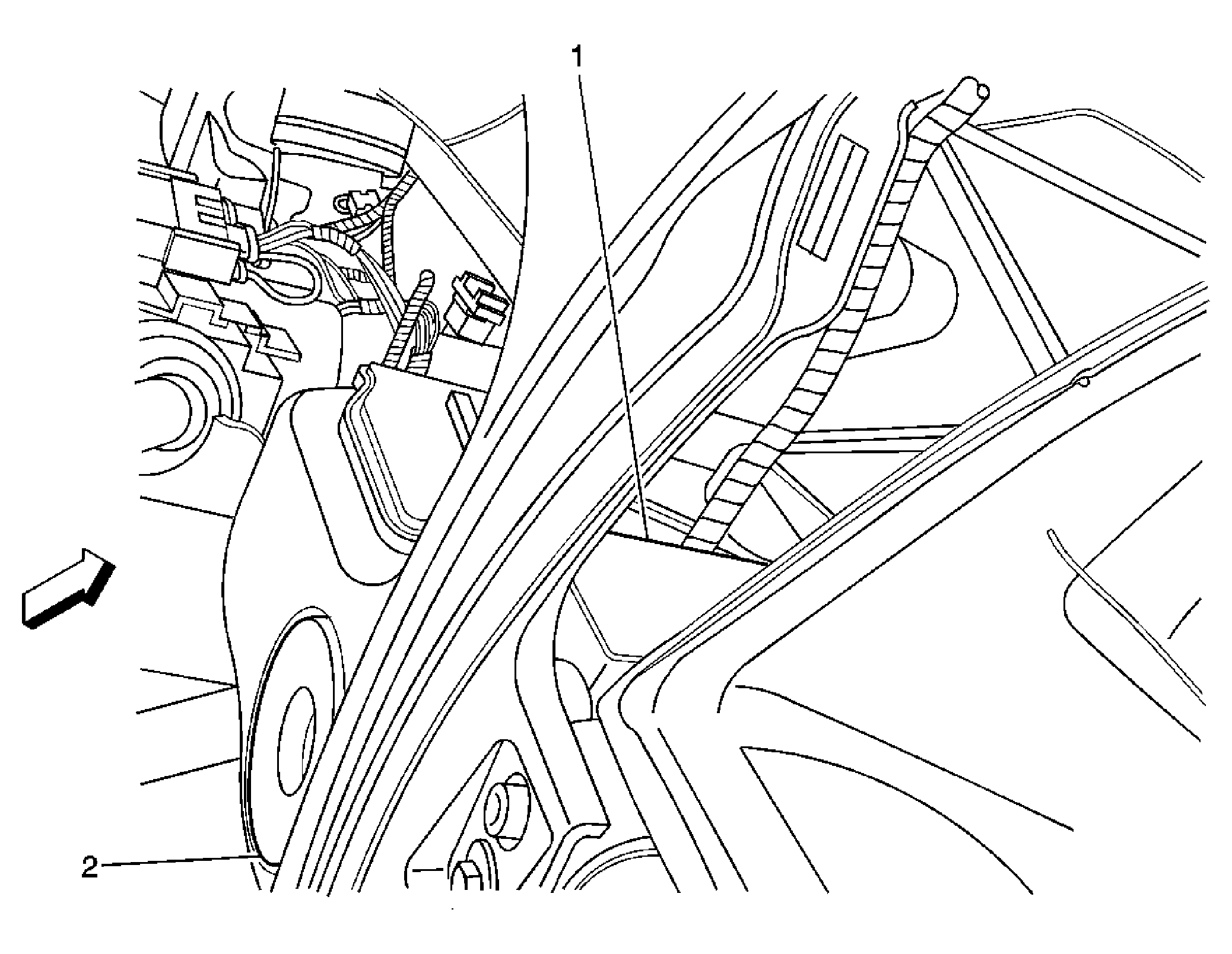

Fig 1: Locating Theft Deterrent Control Module
GM1394540Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Theft Deterrent Control Module
2 Ignition Switch
