Radio Replacement

WARNING: This page is about a different car, the 2007 Saturn Sky. However, it is still accessible from the selected car via links, so may be relevant.

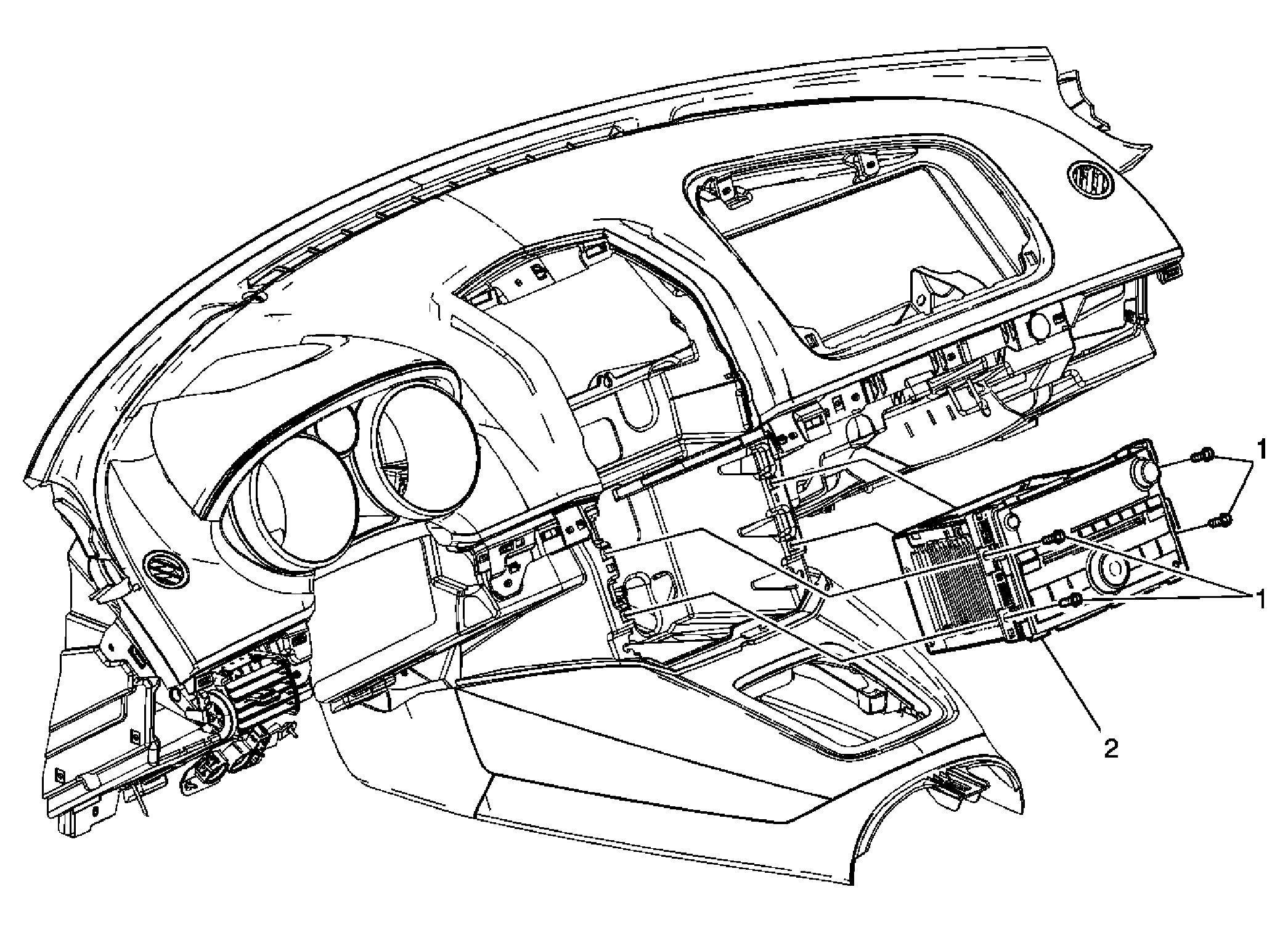

Fig 1: Radio

Courtesy of GENERAL MOTORS CORP.

Radio Replacement

Callout	Component Name
Preliminary Procedures Remove the instrument panel lower trim panel. Refer# to Instrument Panel Lower Trim Panel Replacement . Program the radio after replacement. Refer# to Control Module References .
1	Radio Bolt (Qty: 4) NOTE: Refer# to Fastener Notice . Tighten: 2 N.m (18 lb in)
2	AM/FM Stereo Radio Assembly

Callout

Component Name

Preliminary Procedures

Remove the instrument panel lower trim panel. Refer# to Instrument Panel Lower Trim Panel Replacement .
Program the radio after replacement. Refer# to Control Module References .

Radio Bolt (Qty: 4)

NOTE: Refer# to Fastener Notice .

Tighten: 2 N.m (18 lb in)

AM/FM Stereo Radio Assembly
