Front Disc Brake Hardware Replacement

WARNING: This page is about a different car, the 2007 Saturn Sky. However, it is still accessible from the selected car via links, so may be relevant.

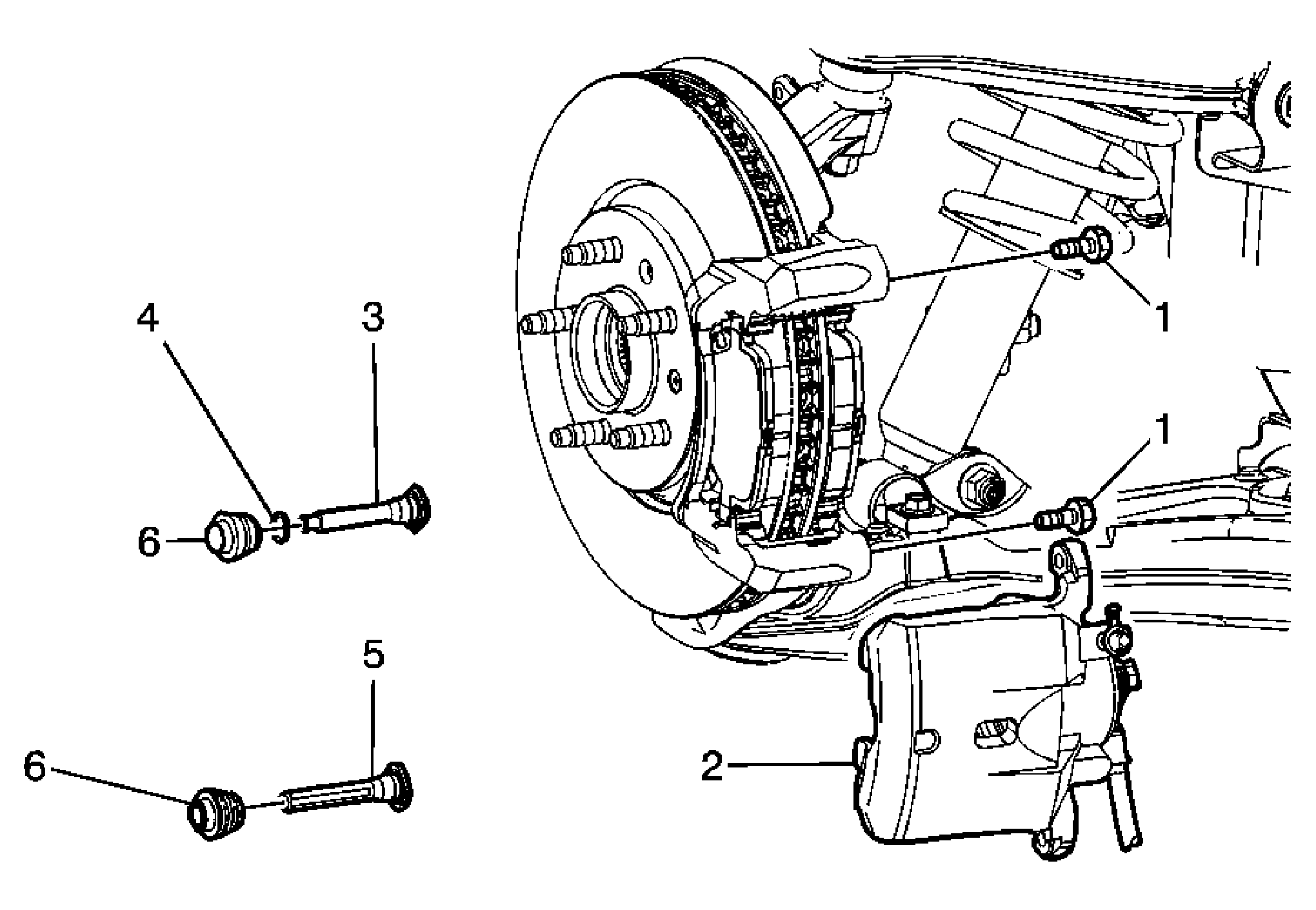

Fig 1: Front Disc Brake Hardware

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
CAUTION: Refer to Brake Dust Caution . NOTE: Support the brake caliper with heavy mechanic wire, or equivalent, whenever it is separated from its mount and the hydraulic flexible brake hose is still connected. Failure to support the caliper in this manner will cause the flexible brake hose to bear the weight of the caliper, which may cause damage to the brake hose and in turn may cause a brake fluid leak. Preliminary Procedures Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle . Remove the tire and wheel assembly. Refer to Tire and Wheel Removal and Installation .
1	Bolt, Front Brake Caliper Guide Pin (Qty: 2) NOTE: Refer to Fastener Notice . Tighten: 30 N.m (22 lb ft)
2	Caliper, Front Brake
3	Pin, Front Brake Caliper Upper Guide IMPORTANT: Ensure there is not a build up of lubricant at the end of the guide pin, ahead of the bushing. Tip: Apply a light coating of high temperature silicone brake lubricant to the guide pin, the bushing and in the bore for the of the bracket.
4	Seal, Front Brake Caliper Upper Guide Pin Tip: Ensure the lip of the seal is fully seated in the groove of the guide pin.
5	Pin, Front Brake Caliper Lower Guide Tip: Apply a light coating of high temperature silicone brake lubricant to the guide pin, the bushing and in the bore for the of the bracket.
6	Seal, Front Brake Caliper Guide Pin (Qty: 2) Tip: Apply a light coating of high temperature silicone brake lubricant to the inside of the seals before installing the seals to the bracket.
