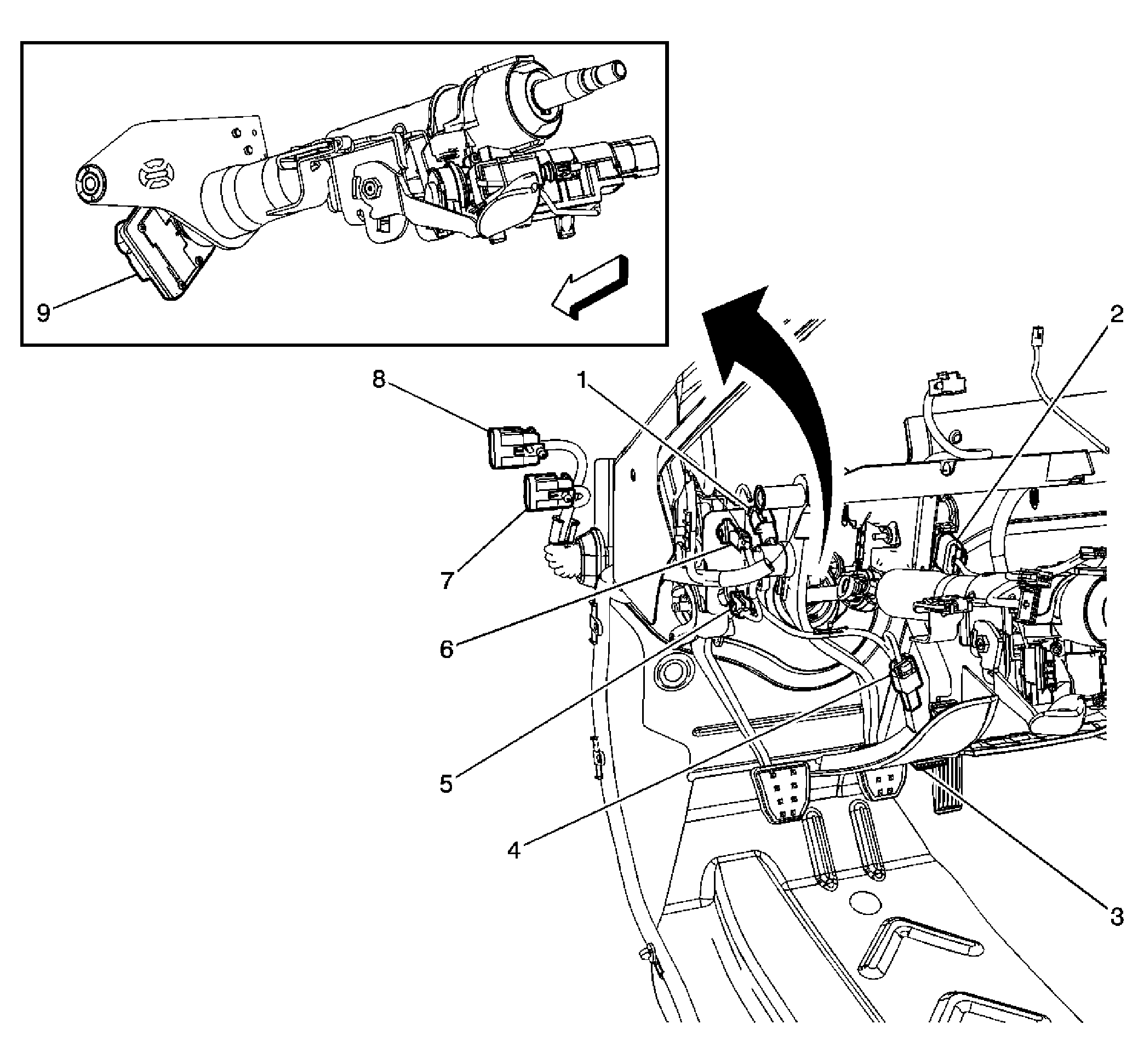

Data Communication Component Views
WARNING: This page is about a different car, the 2007 Saturn Sky. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of GENERAL MOTORS CORP.
| Callout |
Component Name |
| 1 |
Brake Pedal Position Sensor |
| 2 |
Accelerator Pedal Position (APP) Sensor |
| 3 |
Data Link Connector (DLC) |
| 4 |
Data Link Connector (DLC) Resistor |
| 5 |
Clutch Pedal Position (CPP) Switch |
| 6 |
Clutch Start Switch |
| 7 |
C500 |
| 8 |
C501 |
| 9 |
Steering Angle Sensor (JL4) |
