Body Control System Schematics

WARNING: This page is about a different car, the 2007 Saturn Sky. However, it is still accessible from the selected car via links, so may be relevant.

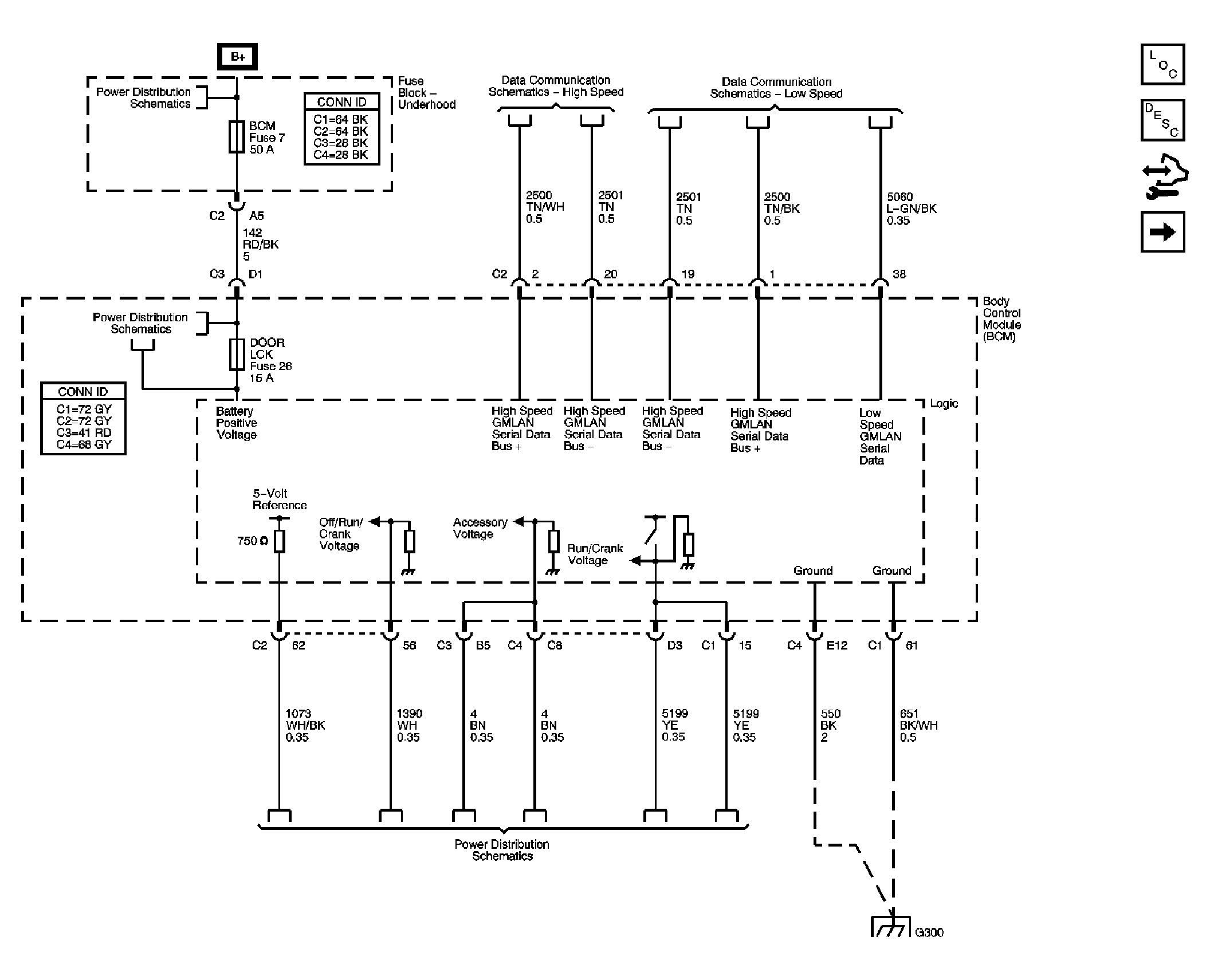

Fig 1: Data Link, Ground, and Power

Courtesy of GENERAL MOTORS CORP.

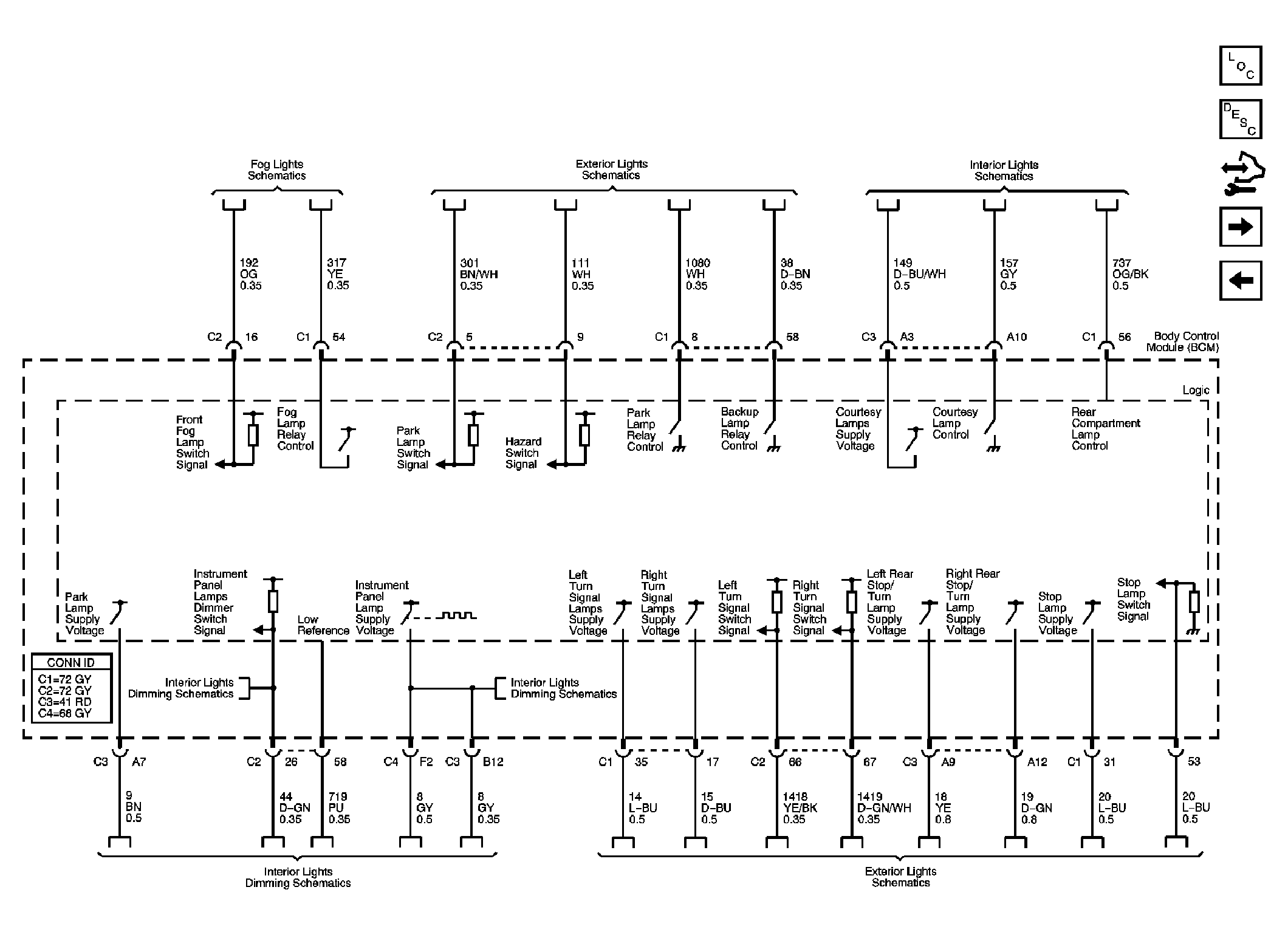

Fig 2: Lighting System References

Courtesy of GENERAL MOTORS CORP.

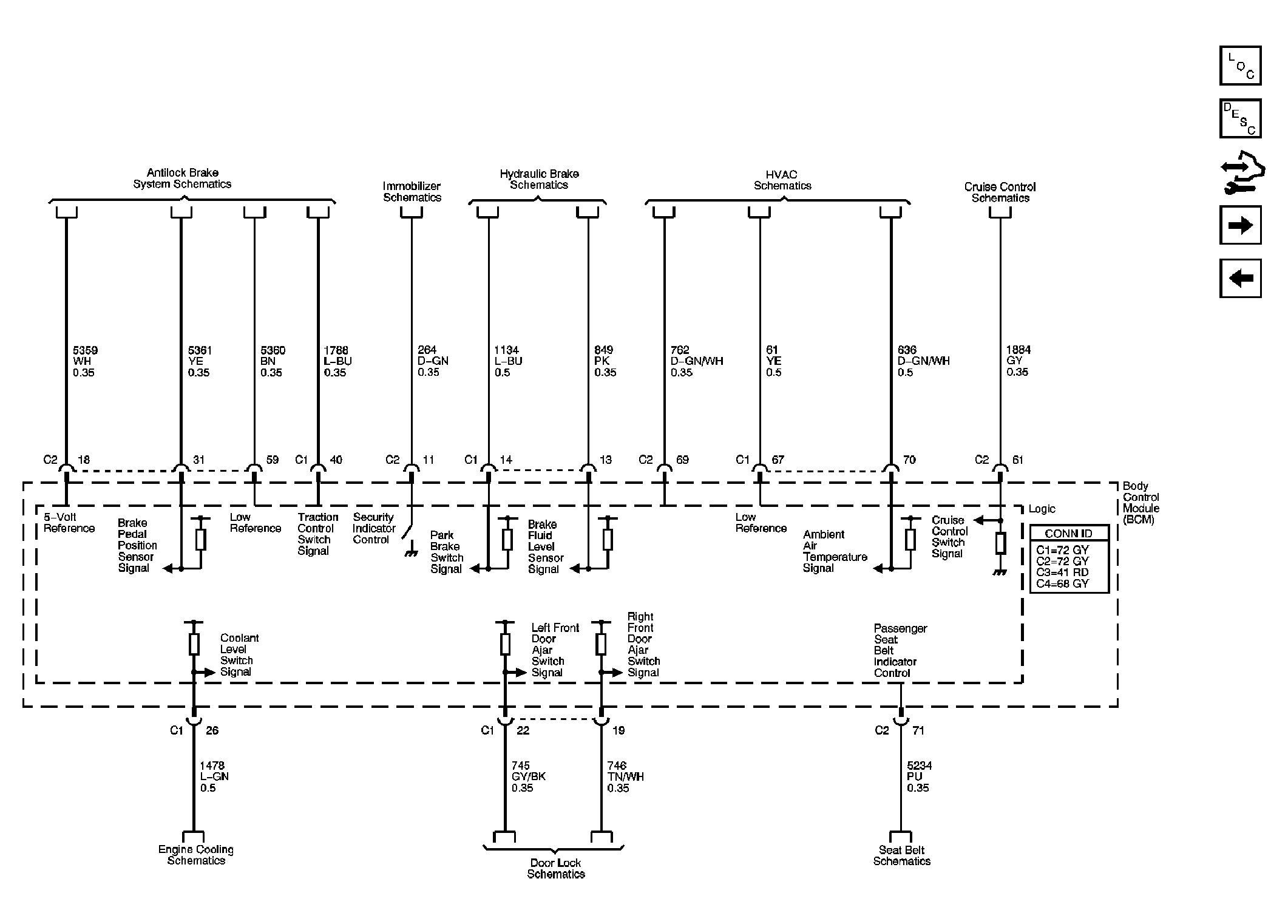

Fig 3: Brakes, Cooling System, Cruise, Door Lock, Immobilizer, and Seat Belt References

Courtesy of GENERAL MOTORS CORP.

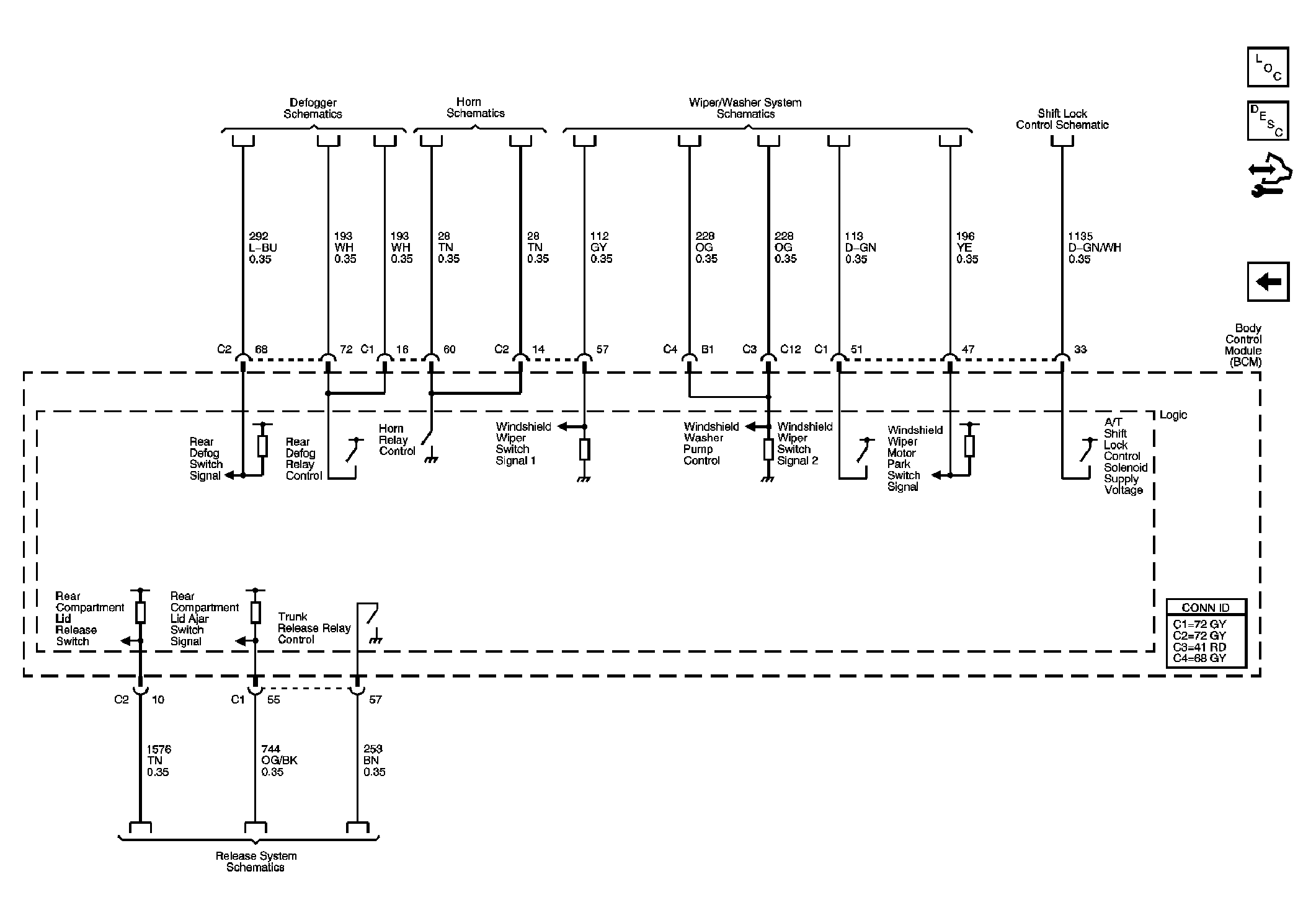

Fig 4: Defogger, Horn, Release System, Shift Lock, and Wiper/Washer References

Courtesy of GENERAL MOTORS CORP.
