Entertainment/Communication Component Views

WARNING: This page is about a different car, the 2007 Buick Lucerne. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Instrument Panel (I/P) Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Inflatable Restraint Steering Wheel Module
2	Instrument Panel Cluster (IPC)
3	Sunload Twilight Sensor
4	Speaker - Front Center (UQA)
5	Hazard Switch
6	Inflatable Restraint I/P Module
7	Radio
8	HVAC Control Module
9	Auxiliary Power Outlet-Console (A51)/Cigar Lighter (DT4 w/A51)
10	Traction Control Switch
11	Steering Wheel Controls
12	Data Link Connector (DLC)
13	Air Temperature Sensor-Inside (CJ2)
14	Headlamp Switch
15	Turn Signal/Multifunction Switch
16	Driver Information Display Switch

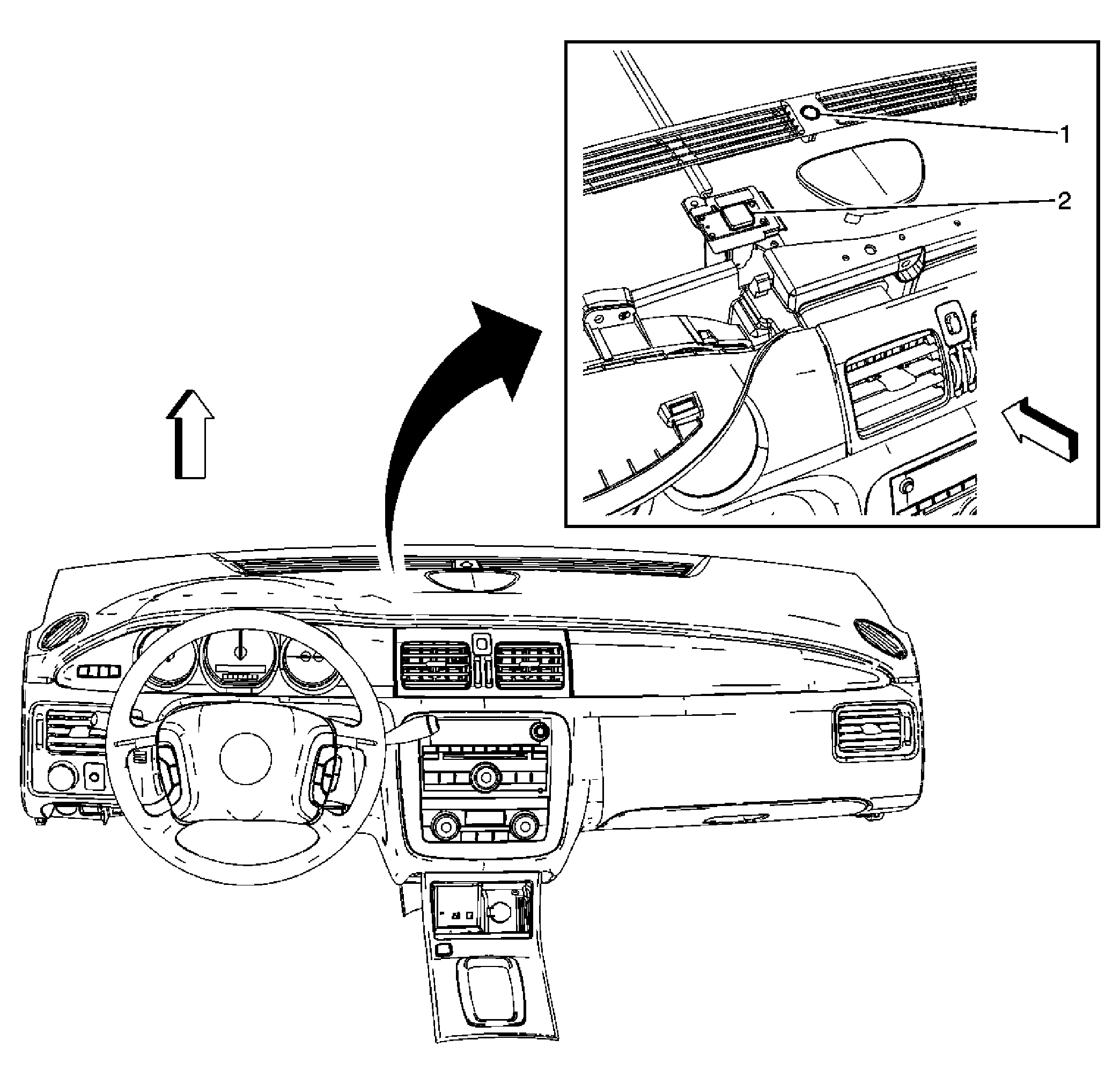

Fig 2: View Under Underneath Center Dash Panel

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Sunload Twilight Sensor
2	Global Positioning System (GPS) Antenna (U3U)

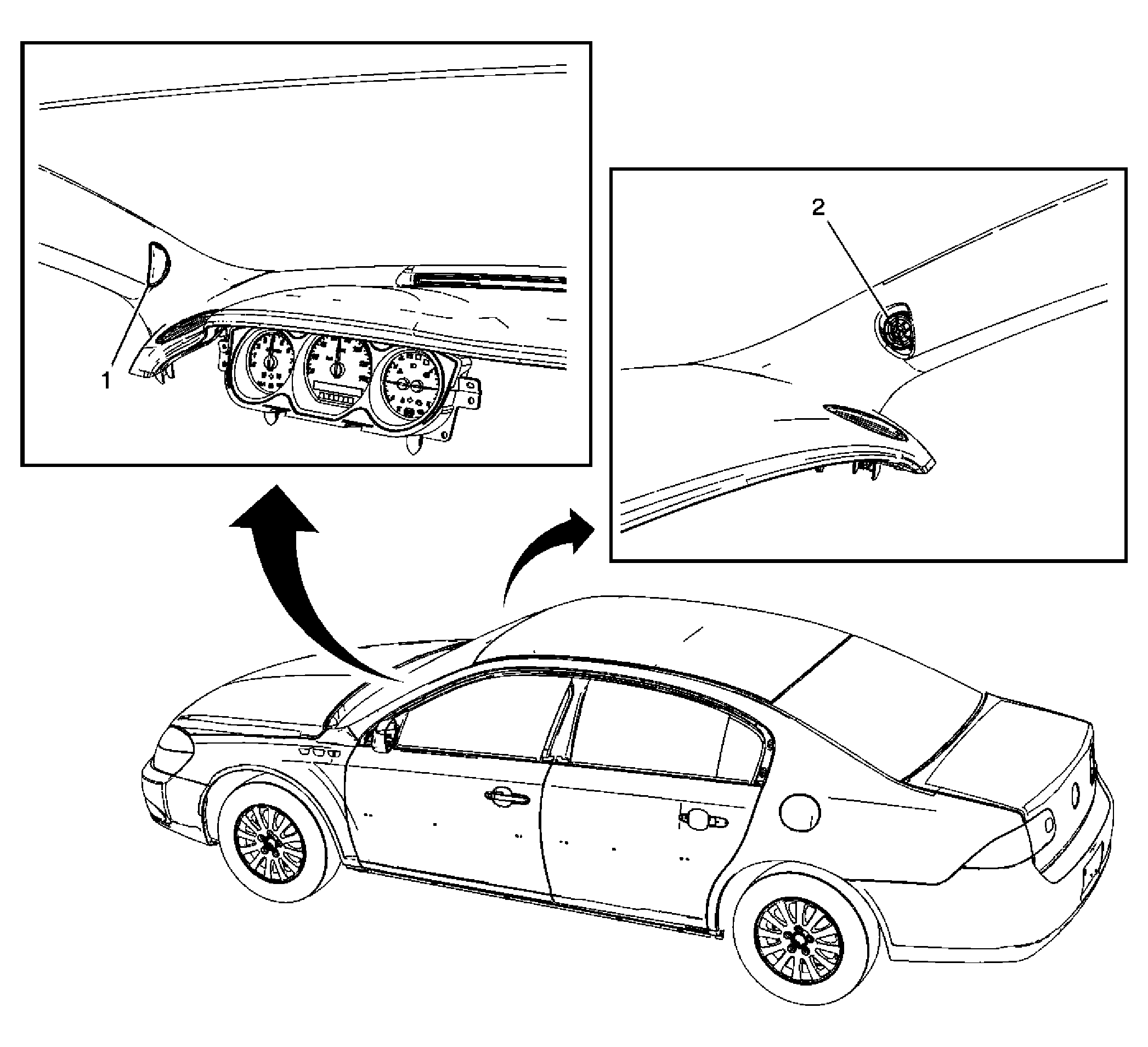

Fig 3: View Of A- Pillar Speakers

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Speaker - LF Tweeter
2	Speaker - RF Tweeter

Fig 4: Overhead Console and Inside Rearview Mirror Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Sunroof Switch-Open/Close (CF5)
2	Cellular Microphone (UE1, U3U)
3	Garage Door Opener Buttons (UG1)
4	Cellular Microphone (UE1, U3U)
5	Sunroof Switch-Vent (CF5)
6	Courtesy Lamp-Overhead Console-Right
7	Inside Rearview Mirror
8	Courtesy Lamp Switch-Right
9	Cellular Microphone (UE1, U3U)
10	Garage Door Opener Transmitter (UG1)
11	Cellular Microphone (UE1, U3U)
12	Courtesy Lamp Switch-Left
13	Onstar Button Assembly
14	Inflatable Restraint I/P Module Indicator
15	Courtesy Lamp Overhead Console-Left

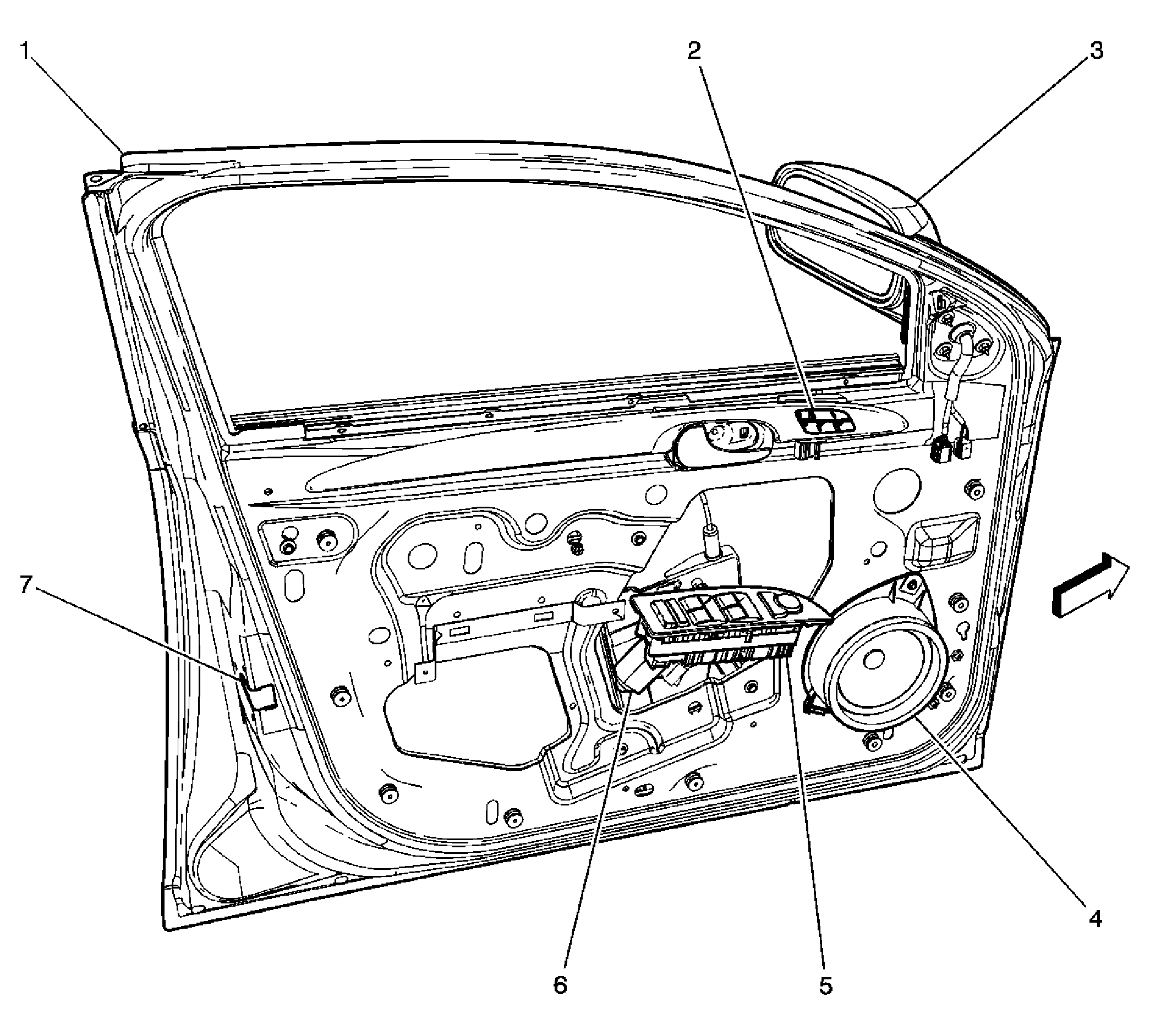

Fig 5: Driver Door

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Door Frame
2	Heated and Cooled Seat Switch - Driver (KA1, KB6, A45)
3	Outside Rearview Mirror - Driver
4	Speaker - LF Door
5	Driver Door Module (DDM)
6	Window Motor - Driver
7	Door Latch Assembly - Driver

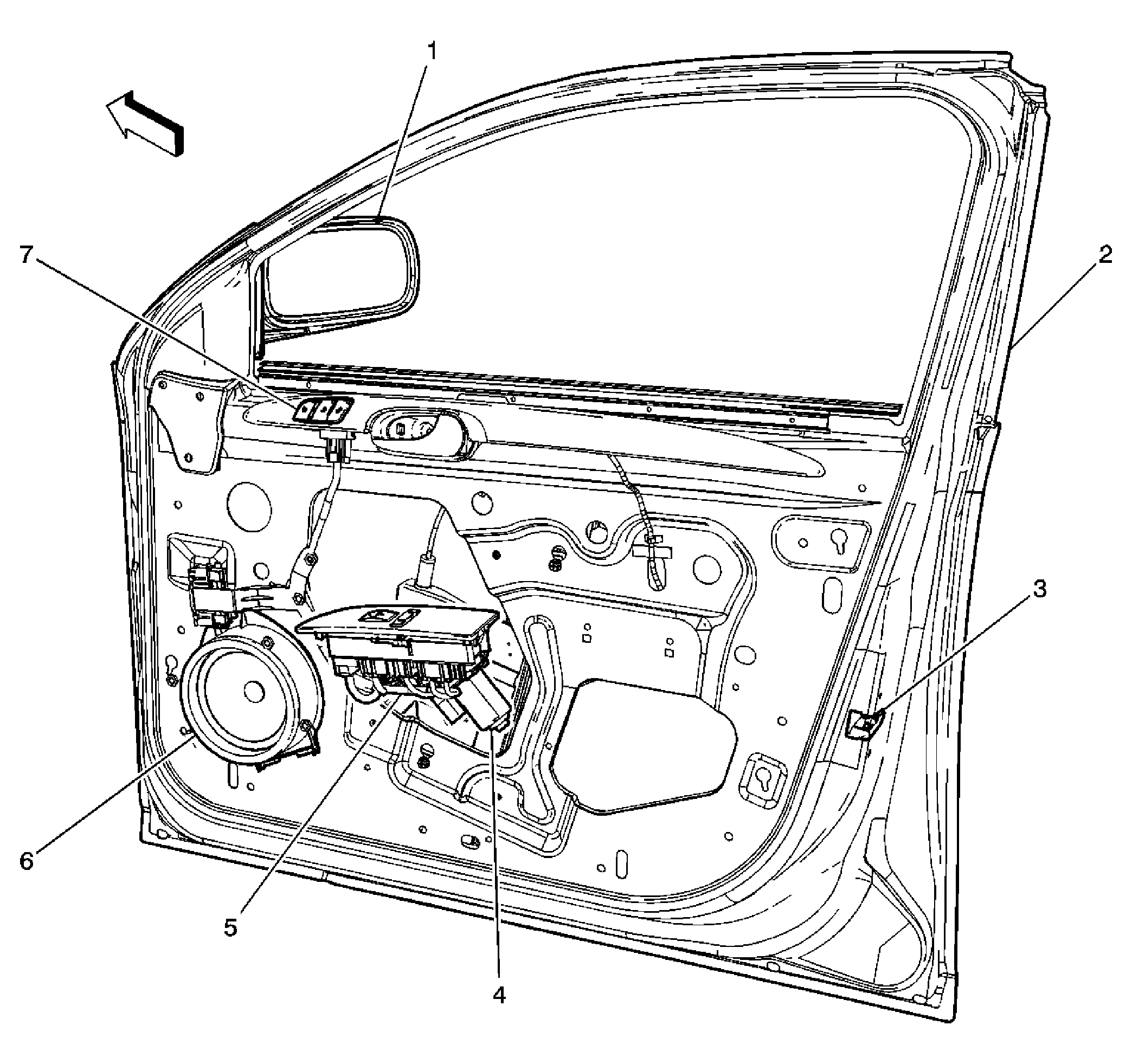

Fig 6: Passenger Door

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Outside Rearview Mirror - Passenger
2	Door Frame
3	Door Latch Assembly - Front Passenger
4	Window Motor - Driver
5	Front Passenger Door Module (FPDM)
6	Speaker - RF Door
7	Heated and Cooled Seat Switch - Front Passenger (KA1, KB6)

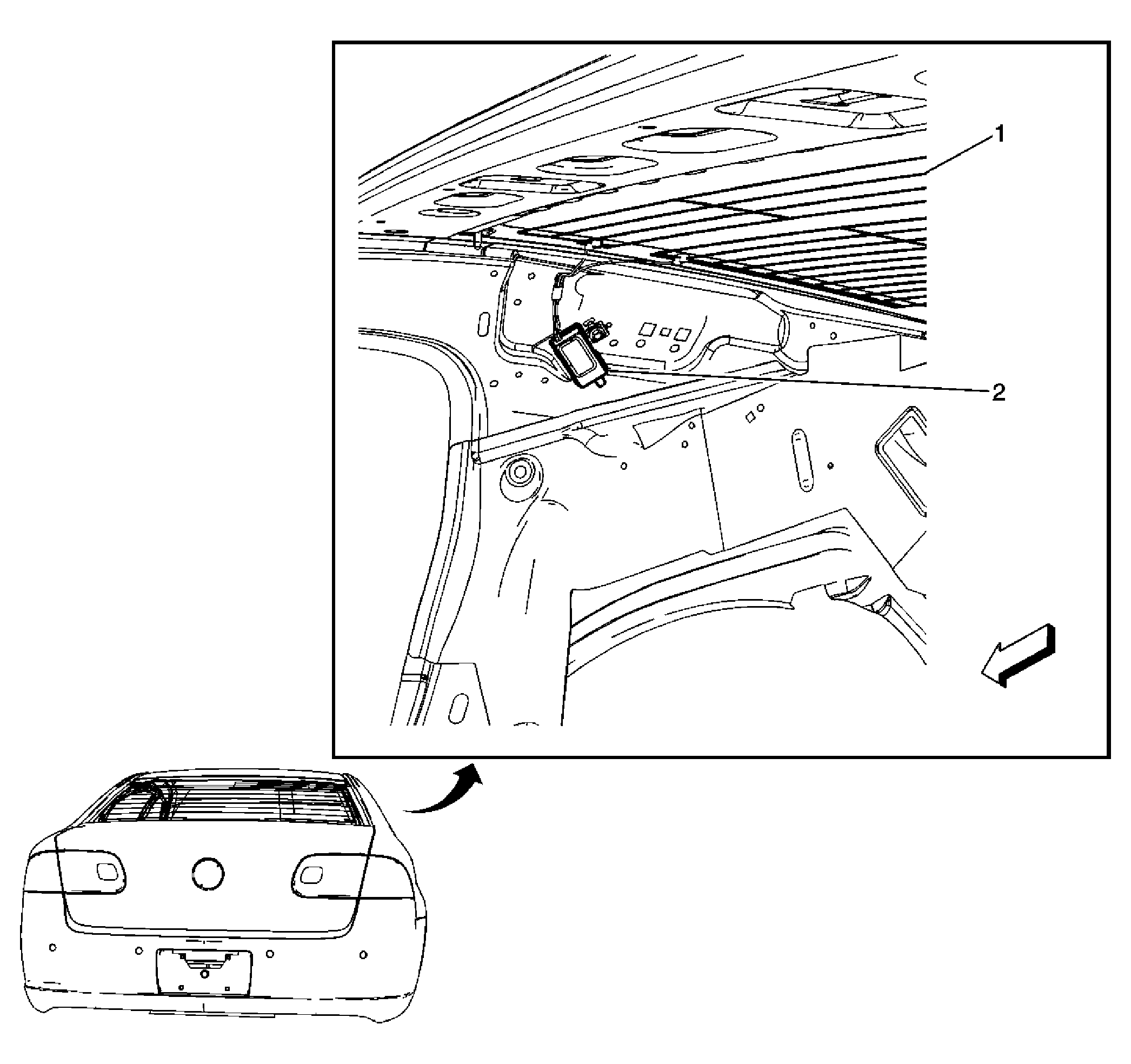

Fig 7: View Above Right Rear Wheel Well

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Rear Window Antenna
2	Radio Antenna Module

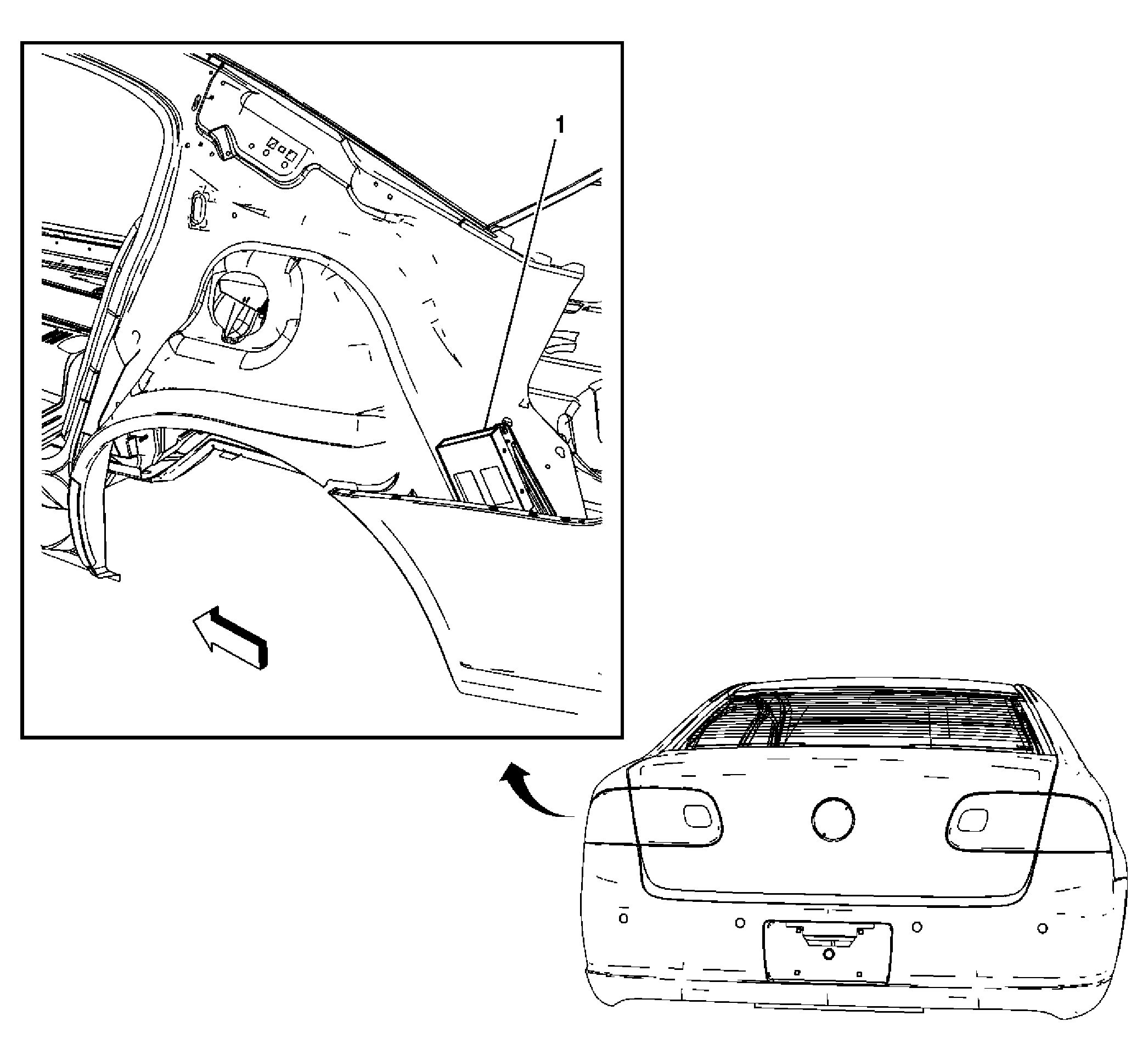

Fig 8: View Behind Left Rear Wheel Well

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Digital Radio Receiver (DRR) (U2K)

Fig 9: Behind The Rear Seat

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Remote Control Door Lock Receiver (RCDLR)
2	Rear Park Assist Indicator (UD7)
3	Speaker - RR
4	Vehicle Communication Interface Module (VCIM) (UE1)
5	Amplifier (UQA)
6	Rear Compartment Courtesy Lamp
7	Speaker - LR

Fig 10: Rear of Vehicle

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Cellular Navigation (UE1) and Digital Radio Antenna (U2K)
2	Center High Mounted Stop Lamp (CHMSL)
3	Rear Window Defogger
4	Backup Lamp-RR
5	Tail Lamp-Right Auxiliary
6	Stop/Turn Signal Lamp-RR
7	Marker Lamp-RR
8	Object Alarm Sensor - RR Corner (UFR)
9	Object Alarm Sensor -RR Middle (UFR)
10	License Lamps
11	Object Alarm Sensor -LR Middle (UFR)
12	Object Alarm Sensor -LR Corner (UFR)
13	Marker Lamp-LR
14	Stop/Turn Signal Lamp-LR
15	Tail Lamp-Left Auxiliary
16	Backup Lamp-LR
17	Radio Rear Glass Antenna
