Radio Antenna Module Replacement

WARNING: This page is about a different car, the 2007 Buick Lucerne. However, it is still accessible from the selected car via links, so may be relevant.

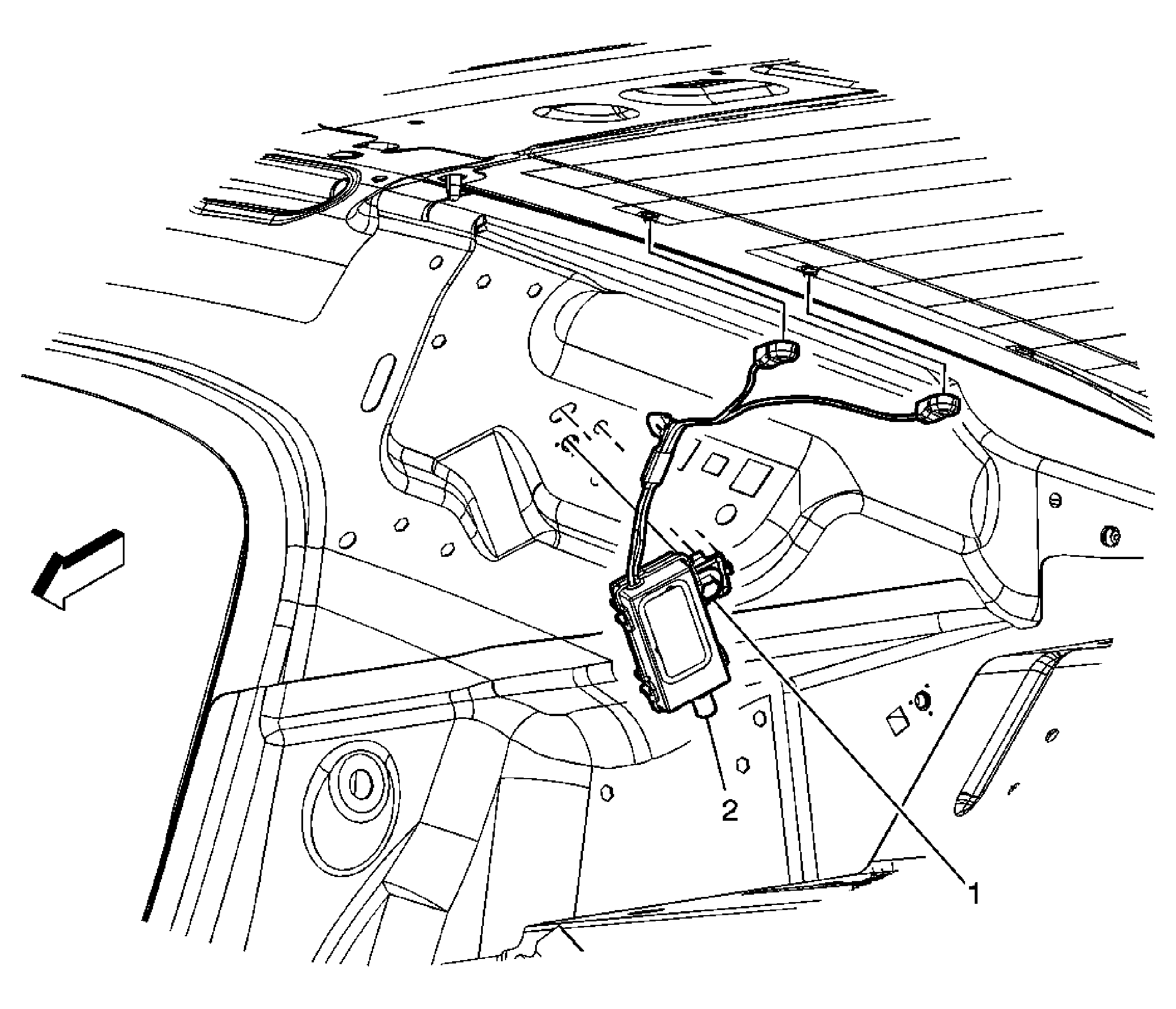

Fig 1: View Of Radio Antenna Module

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Fastener Tightening Specifications: Refer to Fastener Tightening Specifications . Preliminary Procedure: Remove the rear quarter upper trim panel. Refer to Rear Quarter Upper Trim Panel Replacement .
1	Radio Antenna Module Screw
2	Radio Antenna Module Tip: Disconnect the antenna leads from the rear window. Disconnect the antenna connector.
