Traction Control Switch Replacement

WARNING: This page is about a different car, the 2007 Buick Lucerne. However, it is still accessible from the selected car via links, so may be relevant.

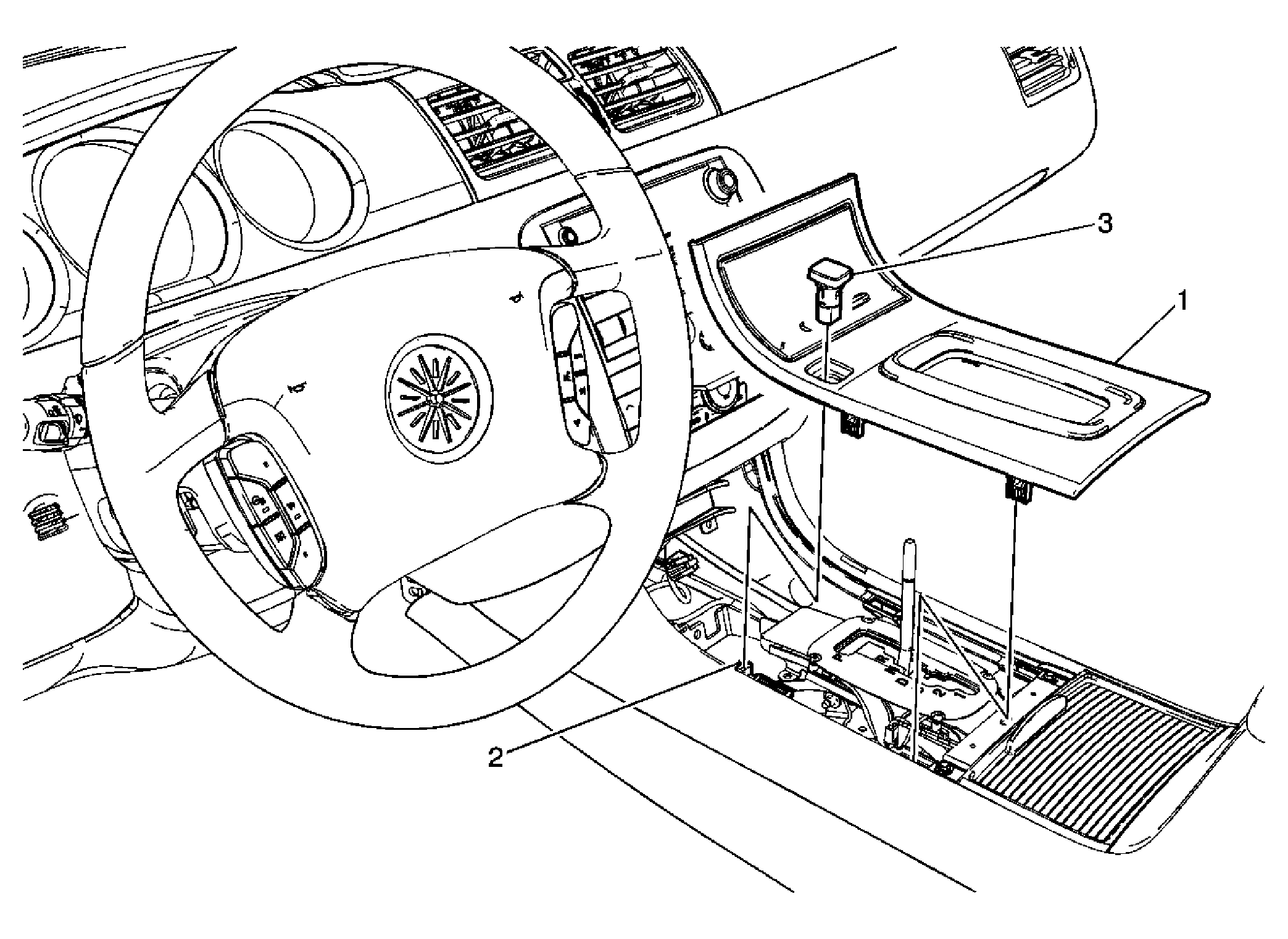

Fig 1: Identifying Electronic Traction Control Switch

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: IMPORTANT: The traction control switch on column shift equipped vehicles is integral to the shift lever. To replace the traction control switch on column shift equipped vehicles, refer to Shift Lever Replacement . Remove the floor shift control knob. Refer to Floor Shift Control Knob Replacement .
1	Plate, Front Floor Console Trim Tip: Lift the rear edge of the front floor console trim plate using a flat-bladed, plastic tool to release the 4 retaining clips.
2	Connector, Traction Control Switch Electrical
3	Switch, Traction Control Tip: Press the retaining tabs to release the traction control switch from the front floor console trim plate.
