Inflatable Restraint Front End Sensor Replacement

WARNING: This page is about a different car, the 2008 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

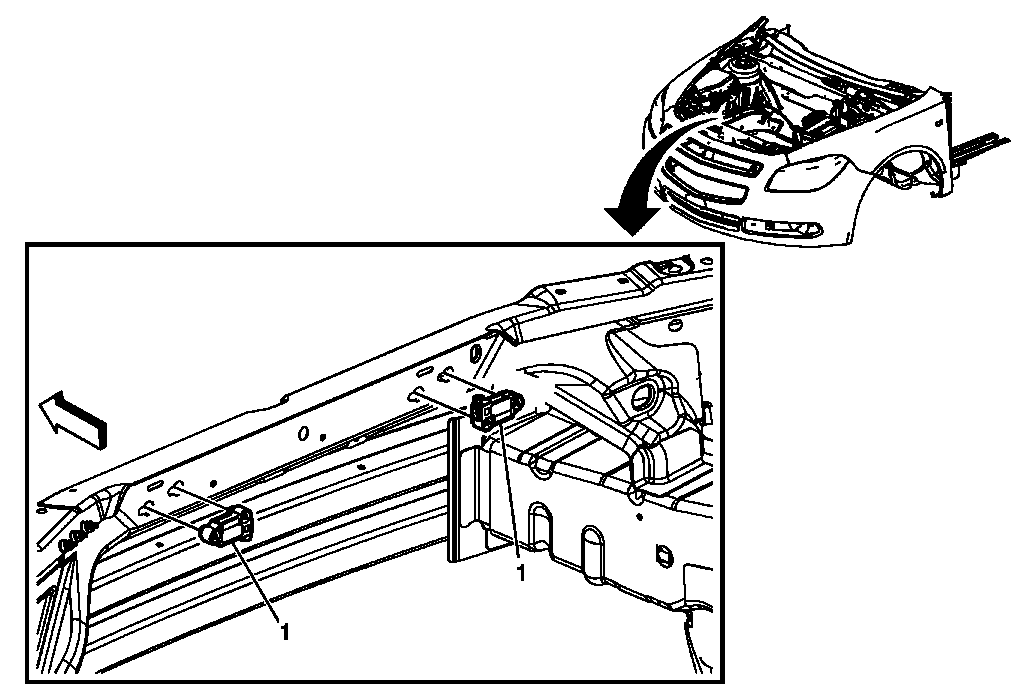

Fig 1: Identifying Inflatable Restraint Front End Sensor

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
CAUTION: Refer to SIR Caution . Preliminary Procedures Disable the supplemental inflatable restraint (SIR) system. Refer to SIR Disabling and Enabling . Remove the front compartment sight shield. Refer to Front Compartment Sight Shields Replacement .
1	Inflatable Restraint Front End Sensor Mounting Bolt (Qty: 4, 2 per sensor) NOTE: Refer to Fastener Notice . Tighten: 11 N.m (97 lb in)

Callout

Component Name

CAUTION: Refer to SIR Caution .

Preliminary Procedures

Disable the supplemental inflatable restraint (SIR) system. Refer to SIR Disabling and Enabling .
Remove the front compartment sight shield. Refer to Front Compartment Sight Shields Replacement .

Inflatable Restraint Front End Sensor Mounting Bolt (Qty: 4, 2 per sensor)

NOTE: Refer to Fastener Notice .

Tighten: 11 N.m (97 lb in)
