Installation Procedure

WARNING: This page is about a different car, the 2008 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

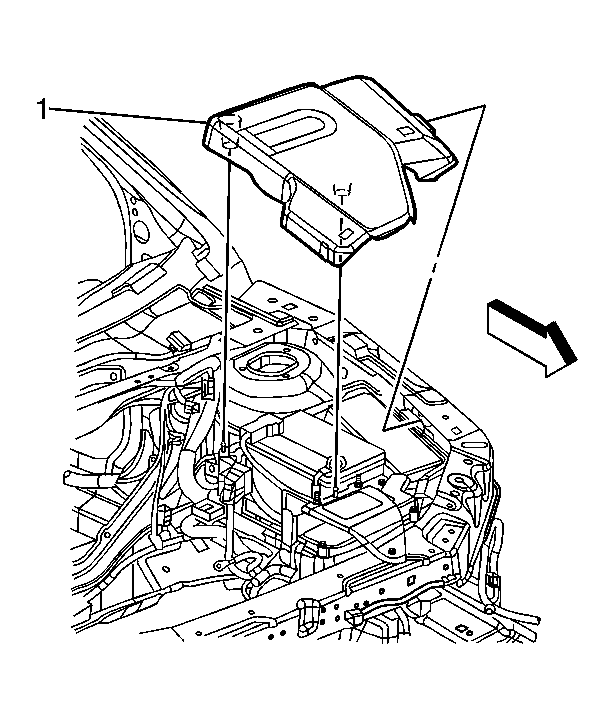

    Fig 1: View Of Generator Control Module Cover
    GM1891201Courtesy of GENERAL MOTORS CORP.
  1. Place the generator control module cover (1) tab into the battery tray slot.
  2. Set the cover over the ball studs and press down on the cover directly over the ball studs in order to secure the cover.
  3. Close the hood.
