Radiator Support Replacement

WARNING: This page is about a different car, the 2010 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

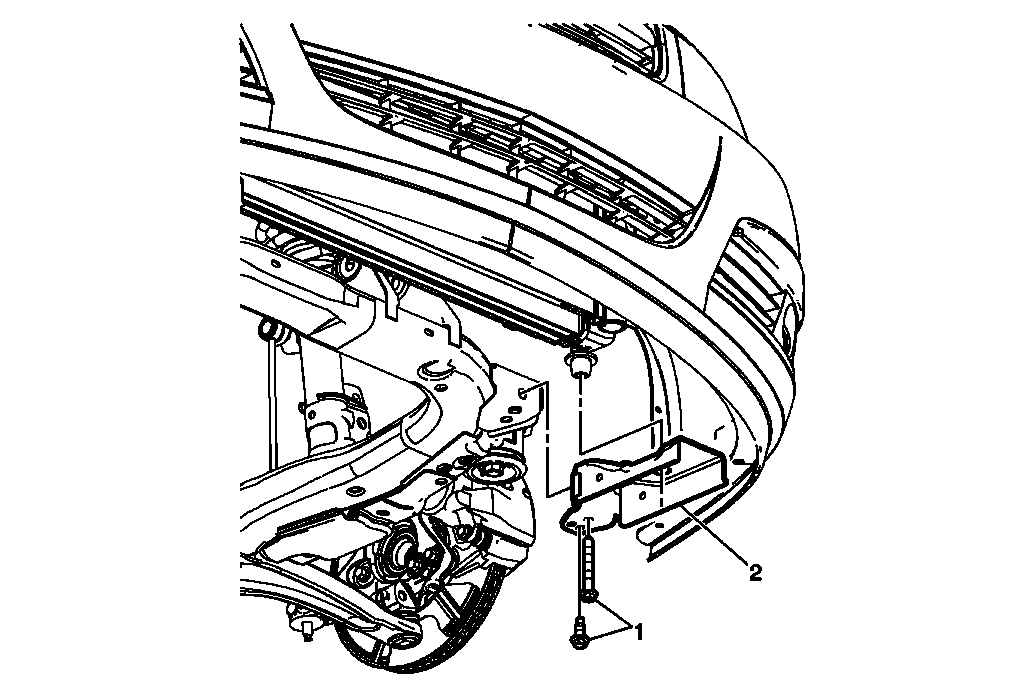

Fig 1: View Of Radiator Support

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Remove the lower radiator air baffle and deflector. Refer to Radiator Air Lower Baffle and Deflector Replacement .
1	Radiator Support Bracket Bolt (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten: 60 N.m (44 lb ft)
2	Radiator Support Bracket - Lower Tip: Left shown and right is similar. Support the radiator and condenser assembly with a suitable jack.
