Oil Level Sensor: Service and Repair

Engine Oil Level Sensor and/or Switch Replacement

Removal Procedure




1. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle.
2. Drain the oil from the oil pan.

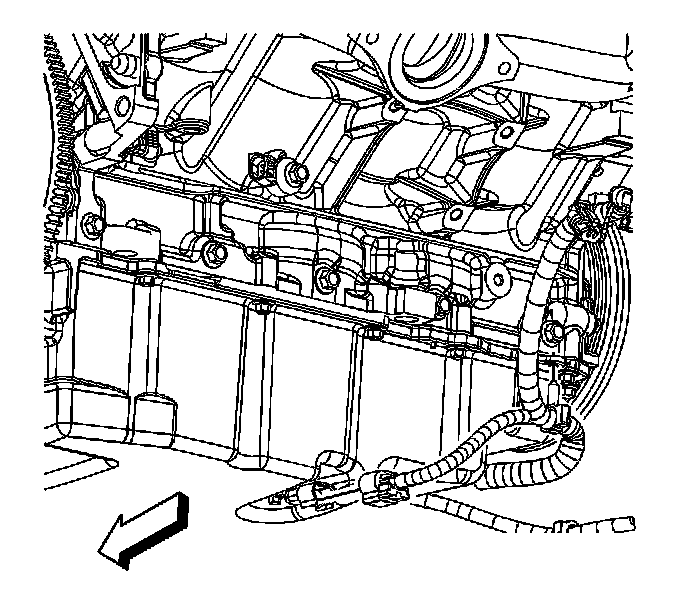

3. Disconnect the oil level sensor electrical connector.




4. Remove the oil level sensor bolt (751).
5. Remove the oil level sensor (727) and O-ring (728) from the oil pan.

Installation Procedure




1. Install the oil level sensor (727) and O-ring (728) to the oil pan.

Notice: Refer to Fastener Notice.

2. Install the oil level sensor bolt (751).

Tighten the bolt to 20 N.m (15 lb ft).




3. Connect the oil level sensor electrical connector.
4. Lower the vehicle.
5. Refill the engine oil to the proper level.
