4T65-E - Automatic Transaxle

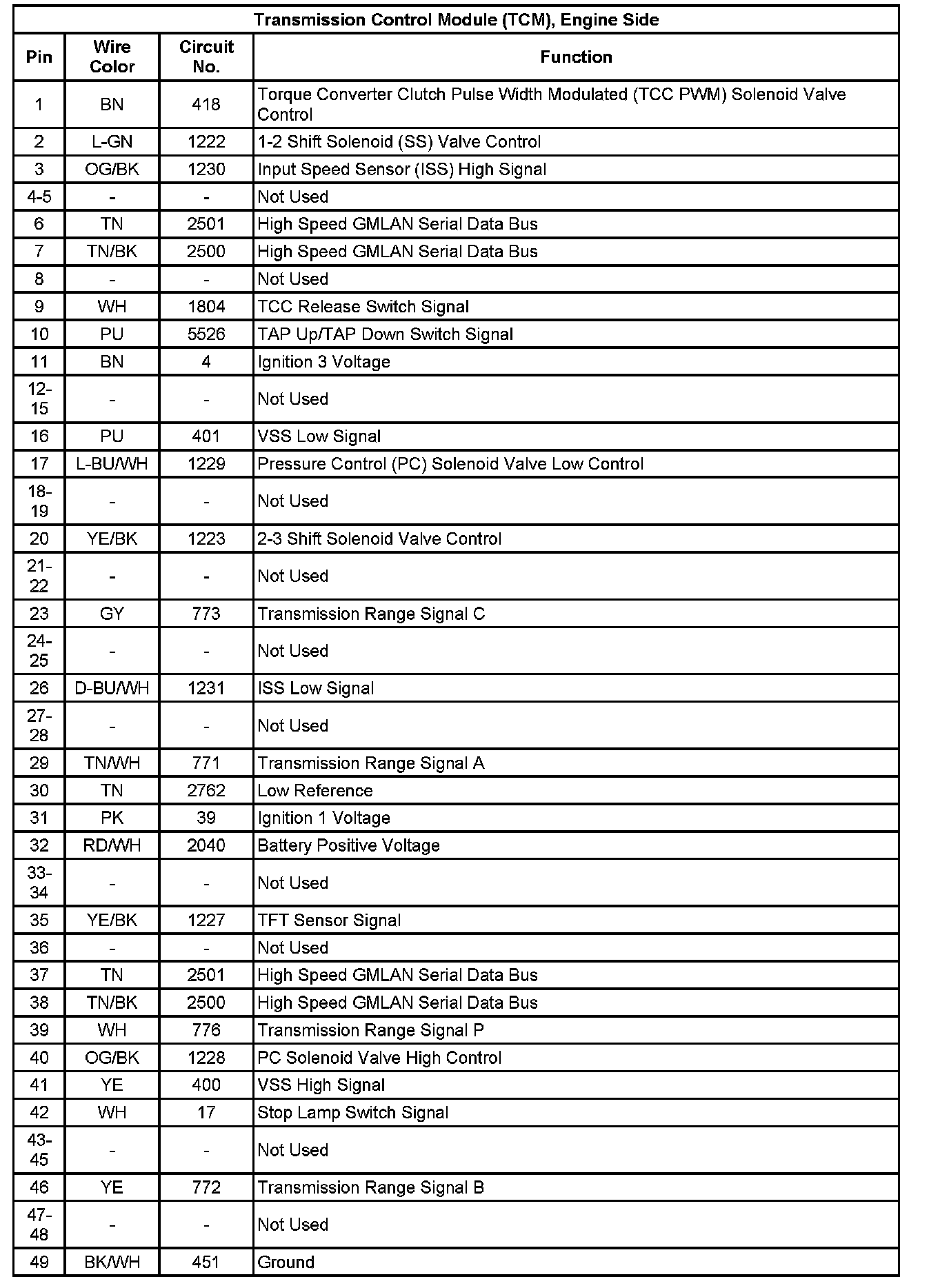

Transmission Control Module (TCM), Engine Side
Transmission Control Module (TCM), Engine Side:
