Wiper Control Module: Locations

Wiper/Washer Component Views

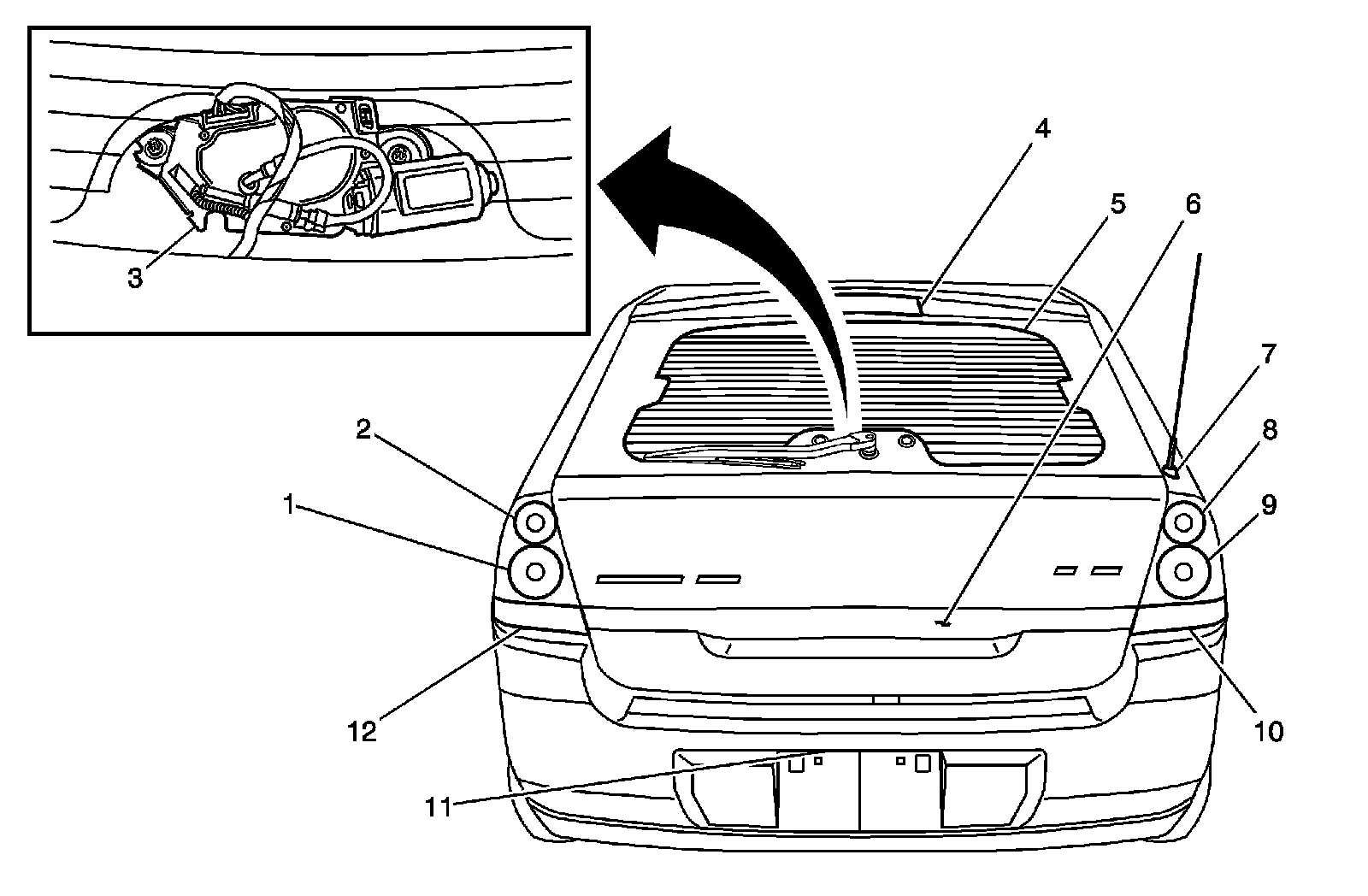

Rear of the Vehicle - Extended Sedan




1 - Tail/Stop and Turn Signal Lamp - Left
2 - Tail Lamp - Left
3 - Rear Window Wiper Module (C25)
4 - Center High Mounted Stop Lamp (CHMSL)
5 - Rear Window Defogger Grid
6 - Liftgate Release Switch
7 - Radio Antenna
8 - Tail Lamp - Right
9 - Tail/Stop and Turn Signal Lamp - Right
10 - Backup Lamp - Right
11 - License Lamp
12 - Backup Lamp - Left
