Ignition Control Module: Locations

Engine Controls Component Views

Top Rear of Engine - LX9




1 - Manifold Absolute Pressure (MAP) Sensor
2 - Generator
3 - Heated Oxygen Sensor (HO2S) Bank 1 Sensor 1
4 - Ignition Control Module (ICM)
5 - Exhaust Gas Recirculation (EGR) Valve
6 - Evaporative Emission (EVAP) Canister Purge Solenoid
7 - Throttle Actuator Control (TAC) Module

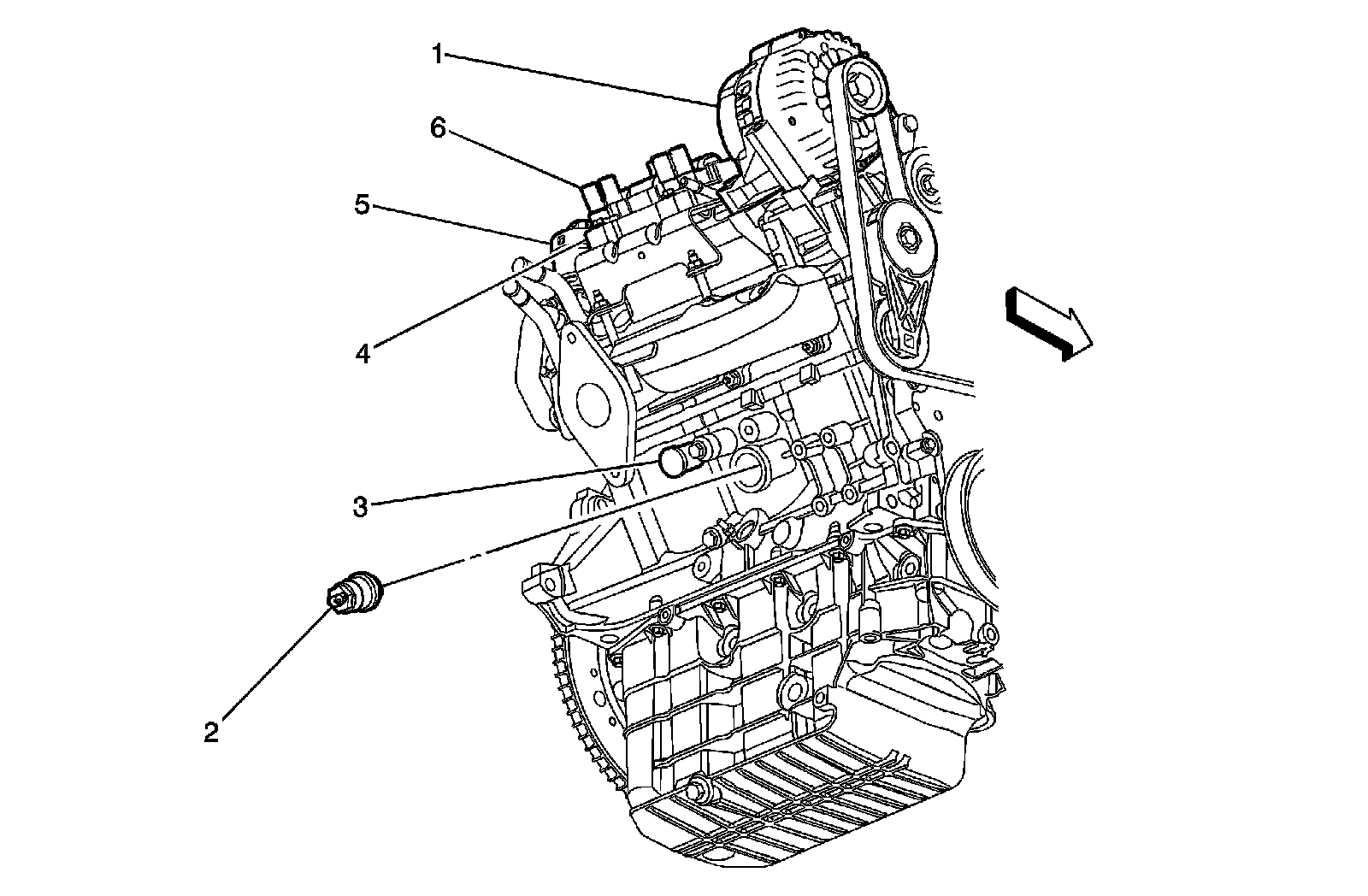

Back Side of Engine - LX9




1 - Generator
2 - Engine Coolant Heater
3 - Knock Sensor (KS) 1
4 - Ignition Control Module (ICM)
5 - Exhaust Gas Recirculation (EGR) Valve
6 - Ignition Coils
