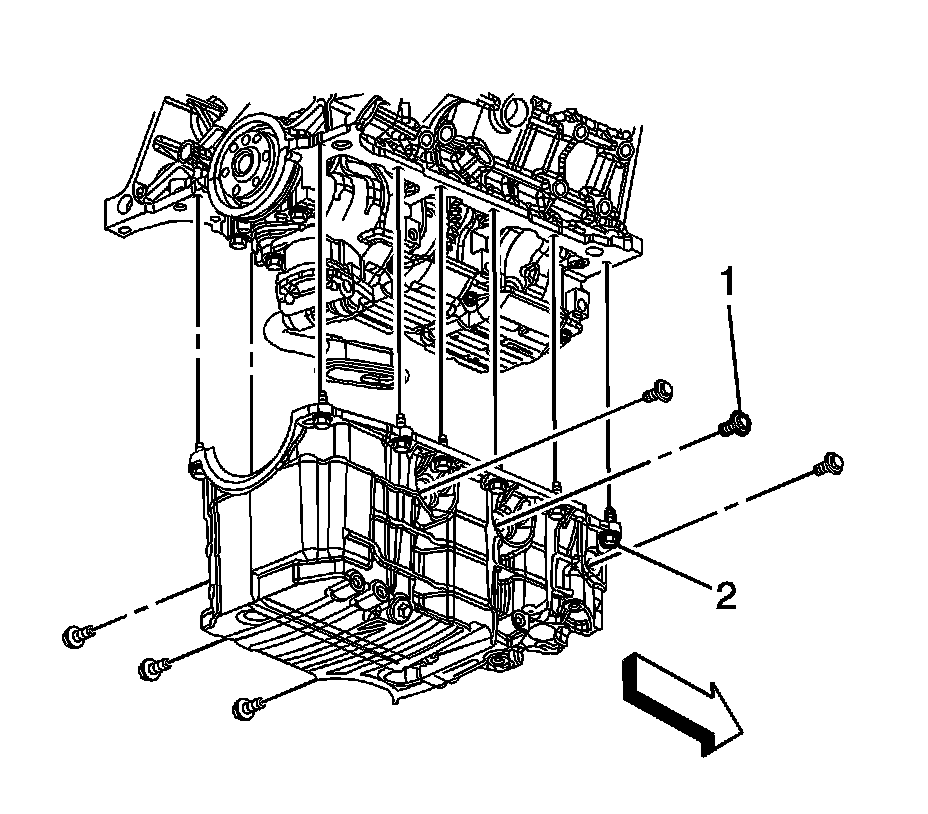

Oil Pan, Engine

Oil Pan Bolt 25 N.m (18 lb ft)





Install a NEW oil pan gasket.
Install the oil pan.

Install the oil pan bolts (1 and 2).
Tighten the bolts (1) to 50 N.m (37 lb ft).
Tighten the bolts (2) to 25 N.m (18 lb ft).
