Oil Pump, Engine

Oil Pump
Gear Diameter 38.05-38.10 mm (1.498-1.500 in)
Gear Pocket - Depth 30.52-30.58 mm (1.202-1.204 in)
Gear Pocket - Diameter 38.176-38.226 mm (1.503-1.505 in)
Gears Lash 0.094-0.195 mm (0.0037-0.0077 in)
Relief Valve-to-Bore Clearance 0.038-0.089 mm (0.0015-0.0035 in)

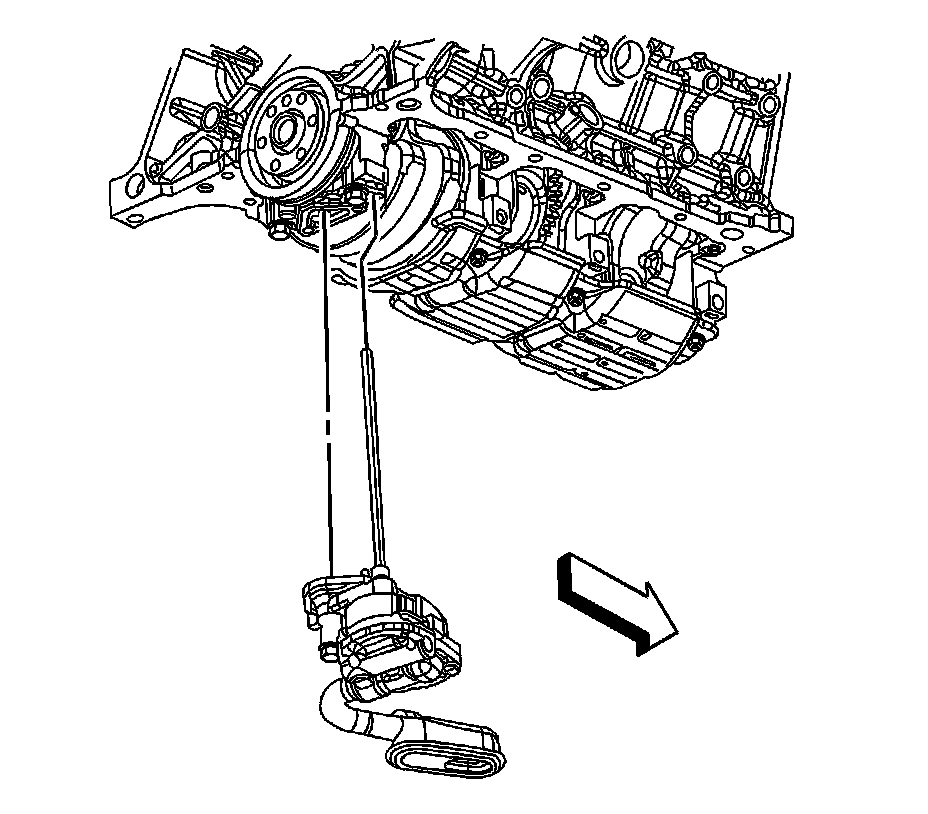

Install the oil pump drive shaft and the oil pump.
Install the oil pump bolt.
Tighten the bolt to 41 N.m (30 lb ft).
