Installation Procedure

IMPORTANT: After installing the control valve body assembly, the shift adapts must be reset. Reset the shift adapts using the scan tool. Go to "Trans Adaptives Reset" under "Special Functions" on the scan tool.

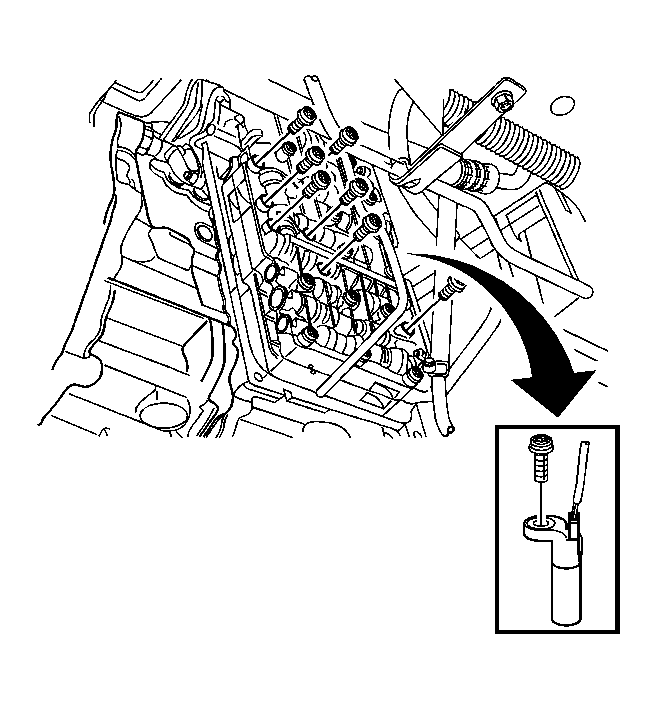

Fig 1: Identifying Valve Body Mounting Bolts

Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to Fastener Notice .

Install the control valve body and the mounting bolts.
Tighten: Tighten the bolts to 8 N.m (71 lb in) .
Install the mounting bolt to the input speed sensor.
Tighten: Tighten the bolt to 8 N.m (71 lb in) .

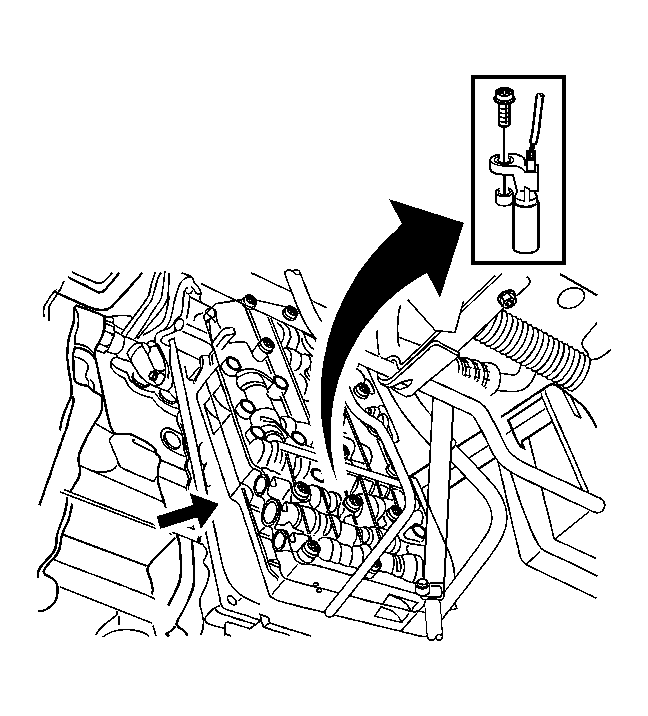

Fig 2: View Of A/T Output Speed Sensor And Mounting Bolts

Courtesy of GENERAL MOTORS CORP.

Install the mounting bolt to the output speed sensor.
Tighten: Tighten the bolt to 6 N.m (53 lb in) .
Install the oil pan and the oil pan gasket. Refer to Automatic Transmission Fluid Pan and Gasket Installation .

Fig 3: Identifying Transaxle Fluid Drain Plug And DT 46475

Courtesy of GENERAL MOTORS CORP.

Using DT 46475 (1), install the transaxle fluid drain plug. See Special Tools .
Install the engine cover. Refer to Engine Cover Replacement .

Fig 4: View Of Transaxle Wiring Harness And PNP Switch Connector

Courtesy of GENERAL MOTORS CORP.

Lower the vehicle.
Connect the transaxle wiring harness and connect the electrical connector from the PNP switch.
Refill the transaxle fluid. Refer to Transmission Fluid Level Inspection .
Connect the negative battery cable.
