Shift Speed

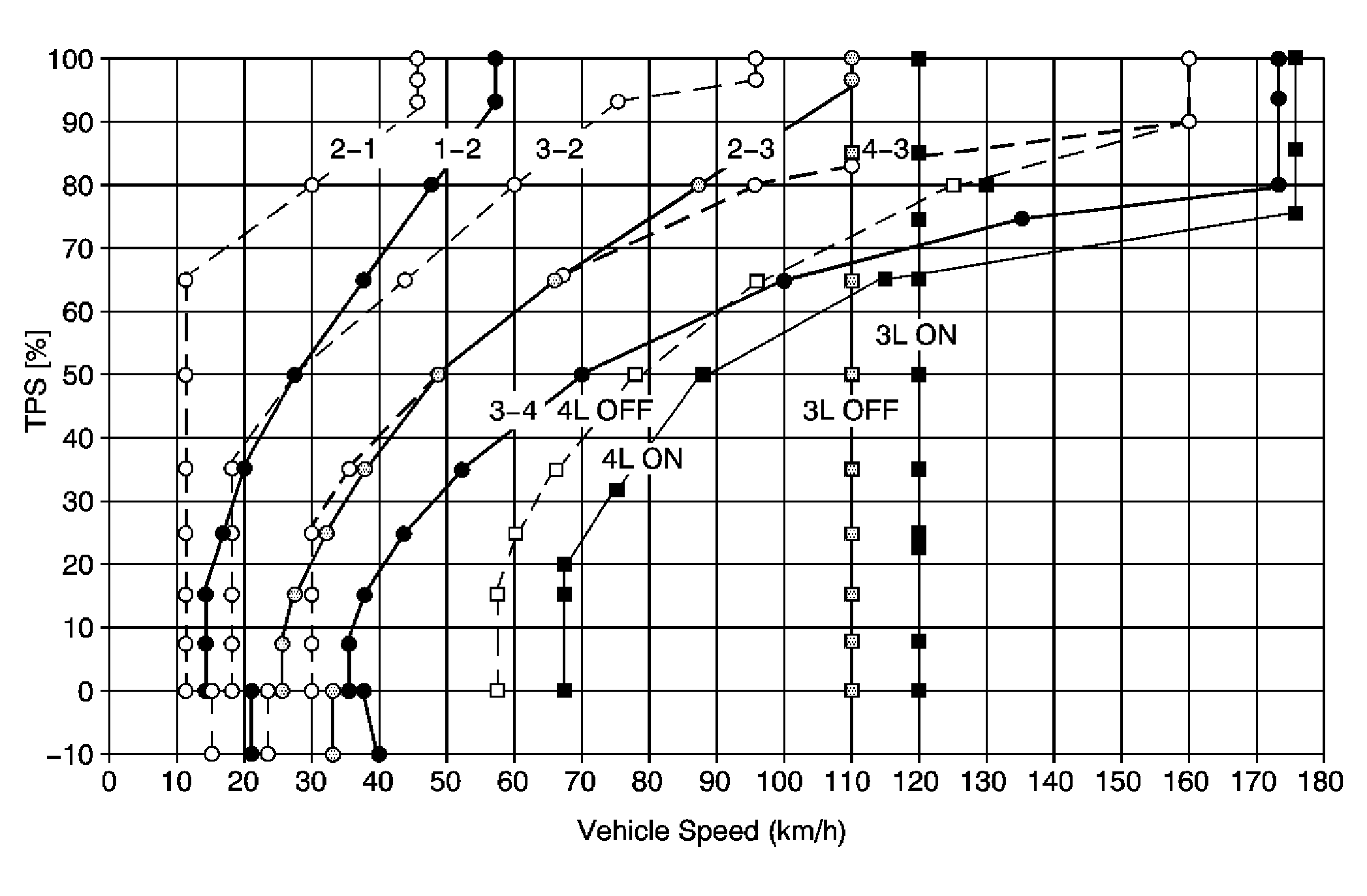

Fig 1: Shift Speed Schematic (1 of 5)

Courtesy of GENERAL MOTORS CORP.

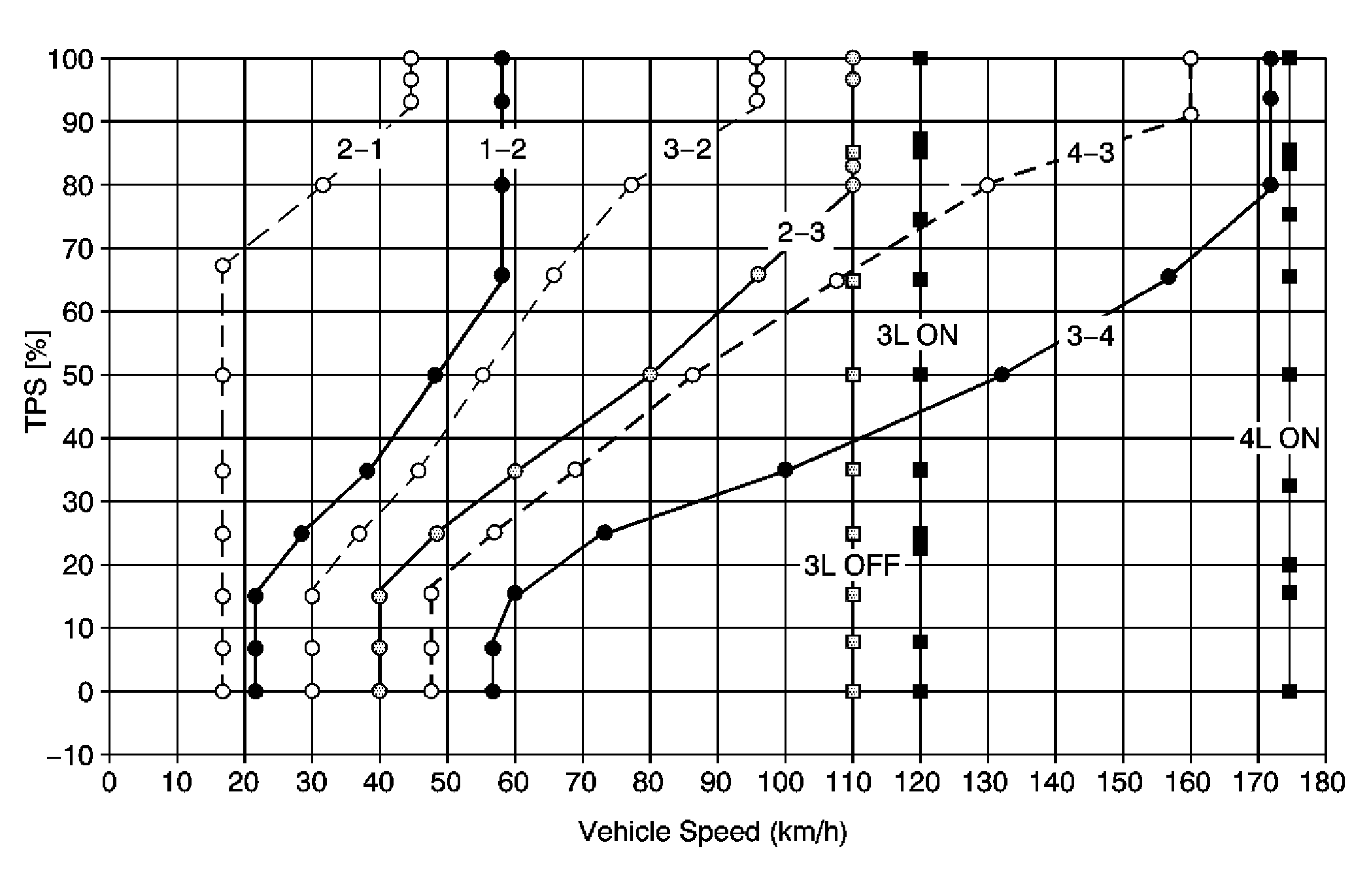

Fig 2: Shift Speed Schematic (2 of 5)

Courtesy of GENERAL MOTORS CORP.

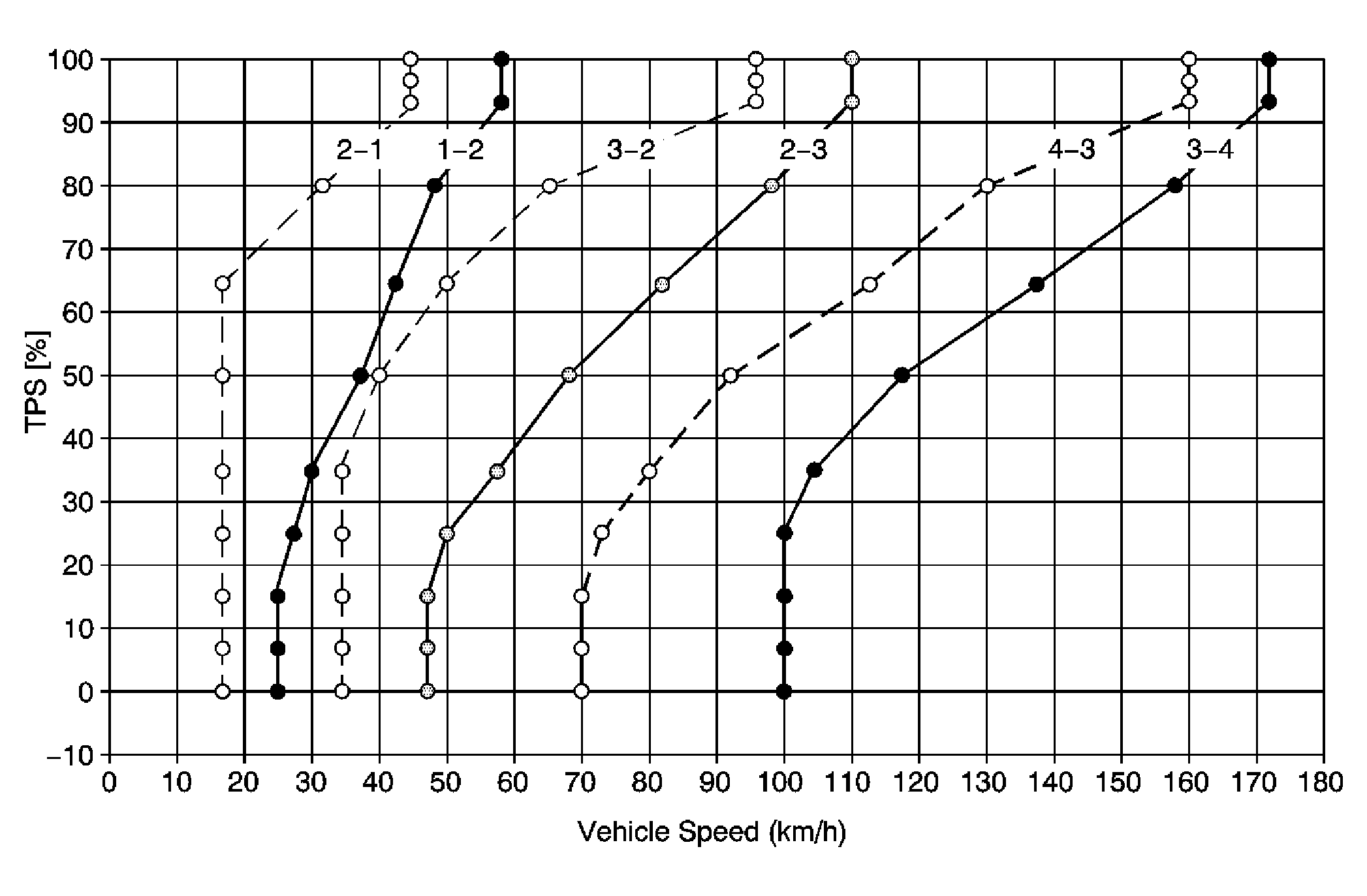

Fig 3: Shift Speed Schematic (3 of 5)

Courtesy of GENERAL MOTORS CORP.

Fig 4: Shift Speed Schematic (4 of 5)

Courtesy of GENERAL MOTORS CORP.

Fig 5: Shift Speed Schematic (5 of 5)

Courtesy of GENERAL MOTORS CORP.
