Disassembled Views

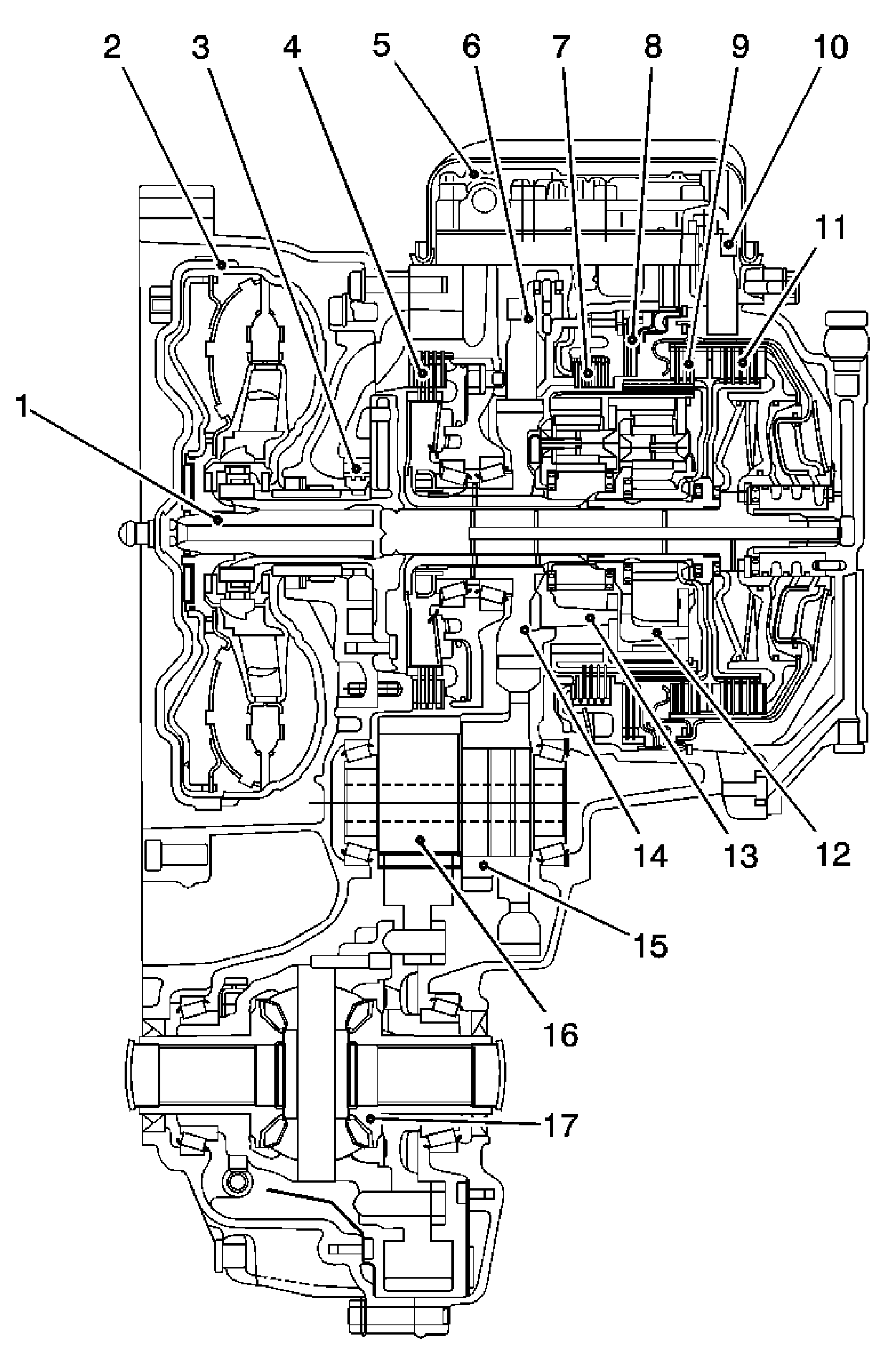

Fig 1: View Of Transaxle Components (Cutaway View)

GM1262725

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Input Shaft
2	Torque converter
3	Oil Pump
4	Brake F
5	Valve Body
6	Output Speed Sensor
7	Brake D
8	Brake C
9	Clutch C
10	Input Speed Sensor
11	Clutch E
12	Rear Planetary Gear Set
13	Front Planetary Gear Set
14	Helical Lock Gear
15	Sun Gear
16	Side Shaft
17	Differential

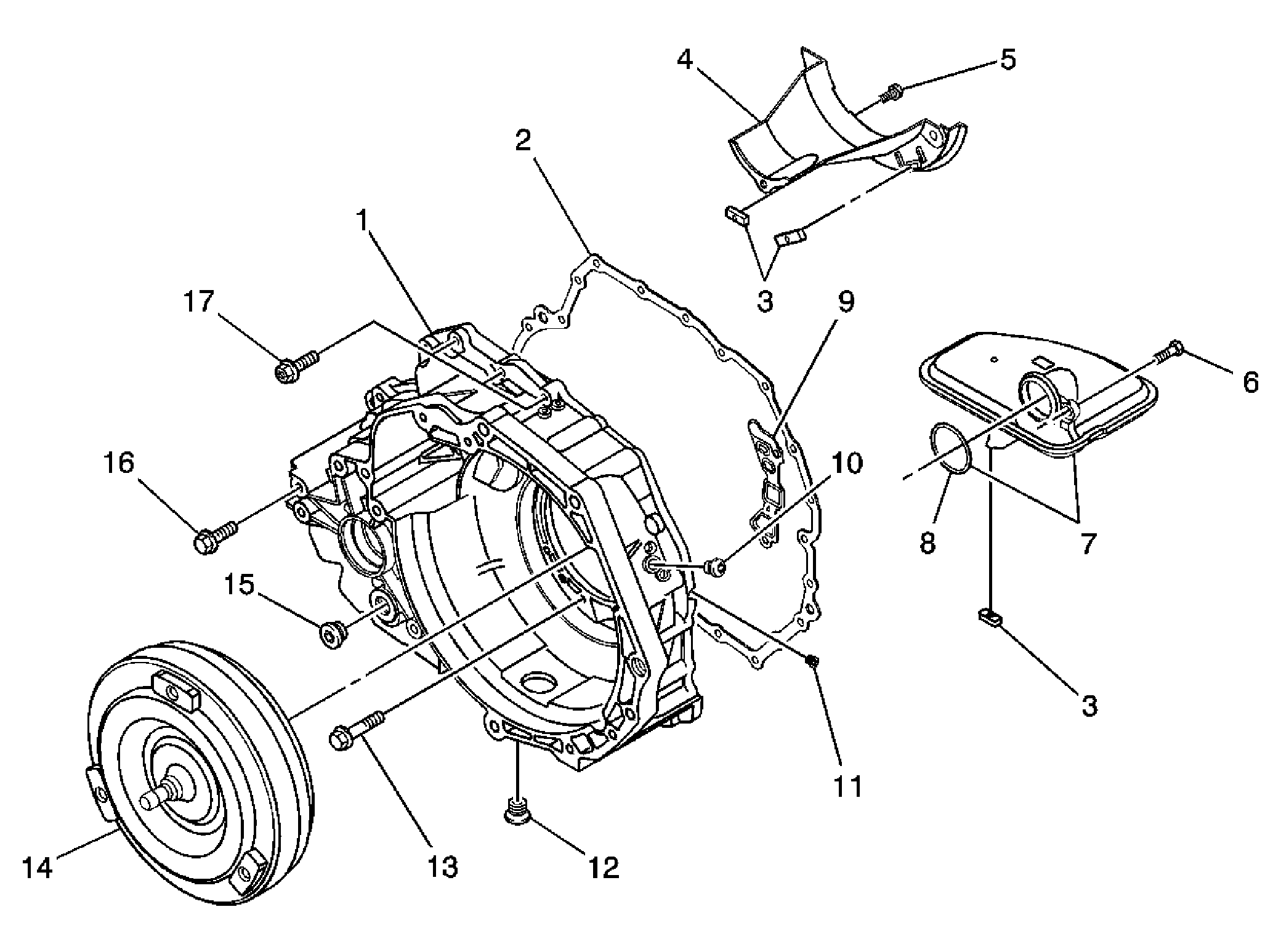

Fig 2: View Of Torque Converter Components

GM1257106

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Torque Converter Housing
2	Torque Converter Gasket
3	Magnet
4	Oil Baffle Plate
5	Bolt
6	Screw
7	Oil Filter
8	O-Ring
9	Steel Gasket
10	Pressure Plug
11	Pressure Plug
12	Oil Drain Plug
13	Bolt
14	Torque Converter
15	Oil Level Plug
16	Bolt
17	Screw

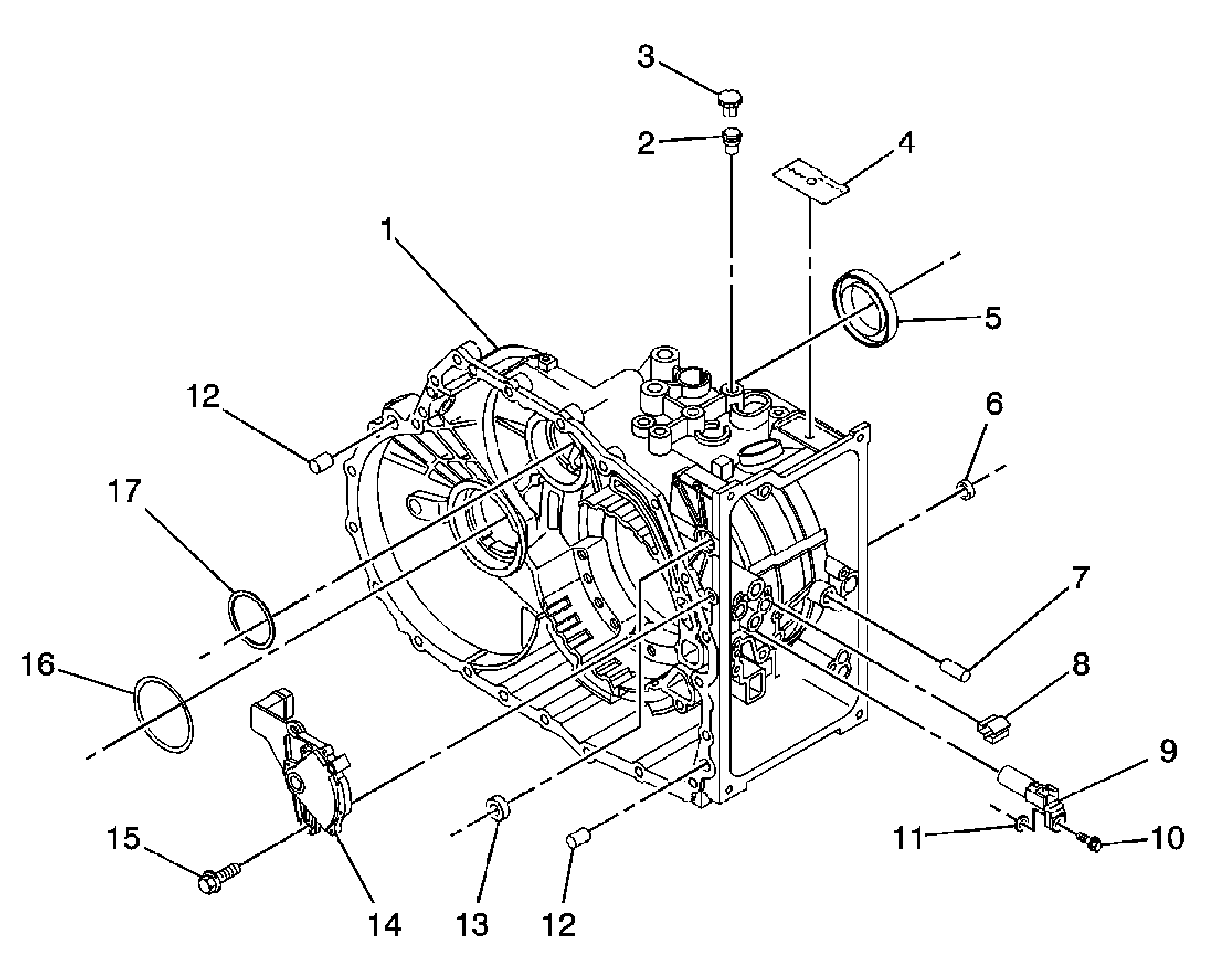

Fig 3: Identifying Transaxle Housing Components

GM1257107

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Transaxle Housing
2	Breather Pipe
3	Sleeve Protector
4	Type Plate
5	Axle Shaft Seal
6	Sealing Sleeve
7	Sealing Sleeve
8	Cable Terminal
9	Output Speed Sensor
10	Bolt
11	Washer
12	Bushing
13	Shaft Seal
14	Park/Neutral Position Switch
15	Bolt
16	Shim
17	Shim

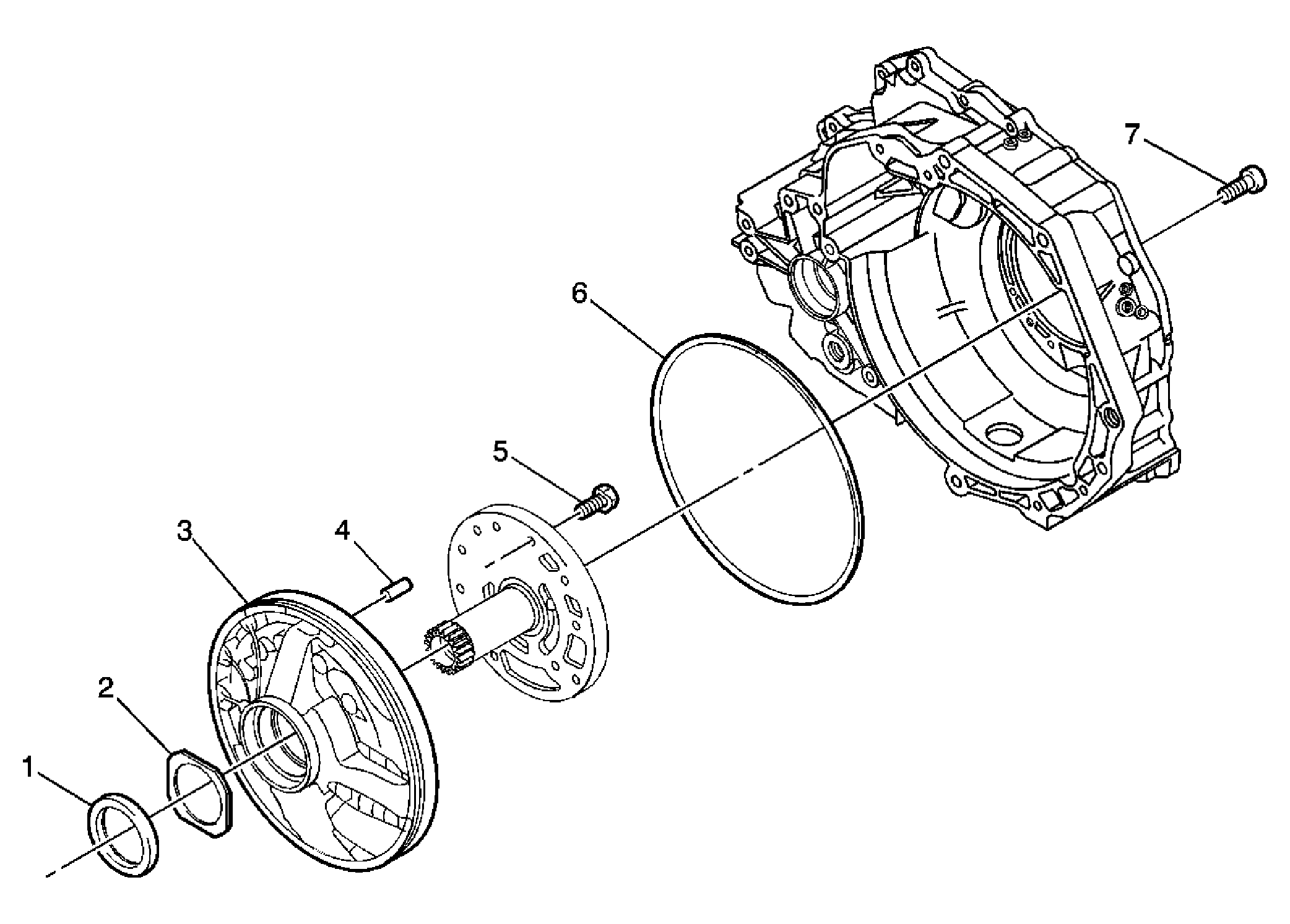

Fig 4: View Of Oil Pump Components

GM1257108

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Oil Pump Seal
2	Washer
3	Oil Pump Housing
4	Dowel Pin
5	Bolt
6	O-Ring
7	Bolt

Fig 5: View Of Rear Cover And Oil Pan Cover Components

GM1257115

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Shim
2	Needle Bearing
3	O-Ring
4	Piston Ring
5	Rear Cover
6	Bolt
7	Screw Plug
8	Oil Pan Bracket
9	Bolt
10	Oil Pan
11	Oil Pan Gasket

Fig 6: View Of Parking Lever Components

GM1257118

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Selector Shaft
2	Stop Bushing
3	Detent Disc
4	Clamping Sleeve
5	Connecting Bar
6	Leg Spring
7	Pawl
8	Pin
9	Support Bolt

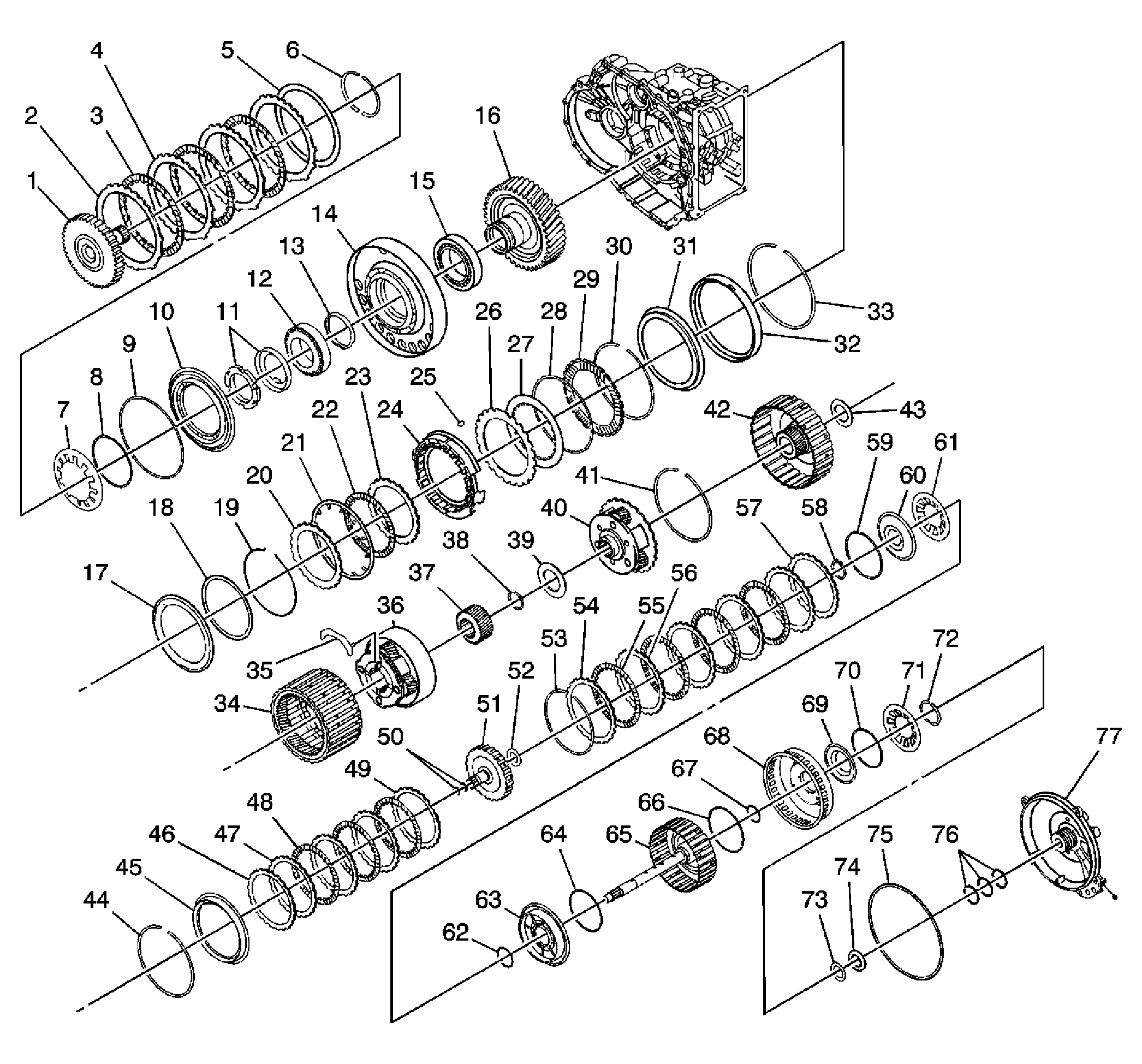

Fig 7: View Of Input Shaft And Shift Gear Components

GM1257104

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Inner Disc Carrier F
2	Clutch Plate F
3	Line Clutch Disc F
4	Clutch Outer Disc F
5	Spring Disc
6	Stop Ring
7	Cup Spring
8	O-Ring
9	O-Ring
10	Piston D
11	Slotted Nut
12	Roller Bearing
13	Adjust Ring
14	Bearing Plate
15	Roller Bearing
16	Spur Gear
17	Piston D
18	Spring Disc
19	Snap Ring
20	Clutch Plate D
21	Cup Spring
22	Line Clutch Disc D
23	Spring Disc
24	Disc Carrier C/D
25	Pitting Key
26	Line Clutch Disc C
27	Clutch Outer Disc C
28	Cup Spring
29	Line Clutch Disc C
30	Snap Ring
31	Piston C
32	Cylinder C
33	Snap Ring
34	Front Ring Gear
35	Oil Tray
36	Front Planetary Gear
37	Front Sun Gear
38	Snap Ring
39	Needle Bearing
40	Rear Planetary Gear Set
41	Snap Ring
42	Rear Sun Gear
43	Needle Bearing
44	Snap Ring
45	Piston B
46	Clutch Plate B
47	Clutch Outer Disc B
48	Line Clutch Disc B
49	Spring Disc
50	Piston Ring
51	Inner Disc Carrier E
52	Needle Bearing
53	Snap Ring
54	Clutch Plate Disc E
55	Line Clutch Disc E
56	Clutch Outer Disc E
57	Spring Disc
58	Retainer Ring
59	O-Ring
60	Oil Dam
61	Cup Spring
62	O-Ring
63	Piston E
64	O-ring
65	Input Shaft
66	O-Ring
67	O-Ring
68	Piston
69	Oil Dam
70	O-Ring
71	Cup Spring
72	Stop Ring
73	Shim
74	Needle Bearing
75	O-Ring
76	Piston Ring
77	Rear Cover

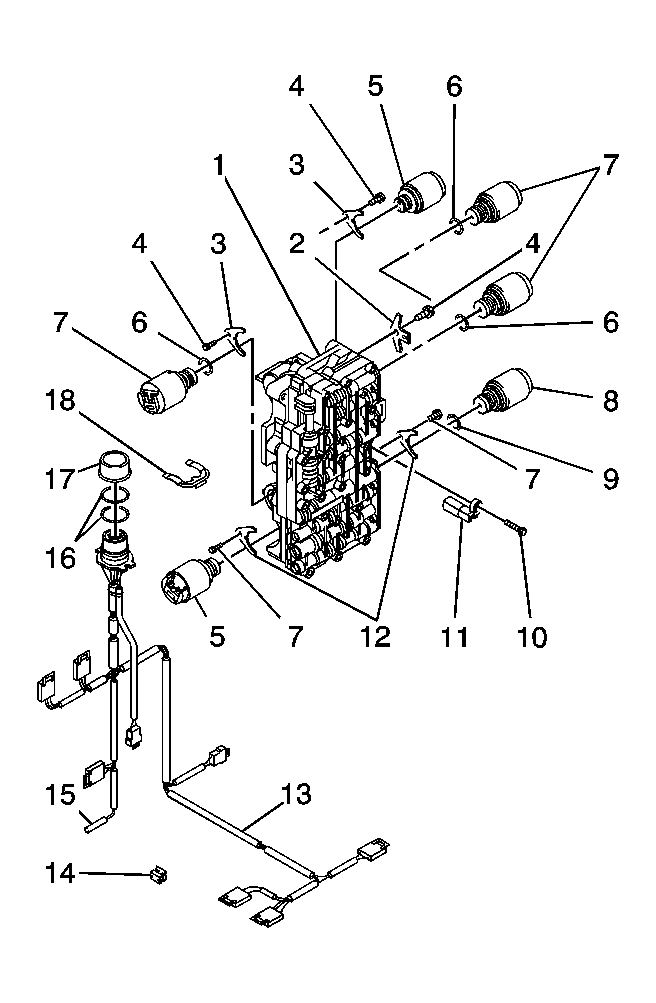

Fig 8: View Of Valve Body Components

GM1257113

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Control Valve Body
2	Cap Screw
3	Fixing Plate
4	Bolt
5	Solenoid Valve
6	Cap Screw
7	Solenoid Valve
8	Solenoid Valve
9	O-Ring
10	Cap Screw
11	Input Shaft Speed (ISS) Sensor
12	Fixing Plate
13	Valve Body Wiring Harness
14	Cable Terminal
15	Transmission Fluid Temperature (TFT) Sensor
16	O-Ring
17	Plug
18	Retaining Clip
