I/P Fuse Block



Fuse Block - I/P Top View (Except RPO Code YE9):




Fuse Block - I/P Top View (With RPO Code YE9):




Fuse Block - I/P Bottom View:

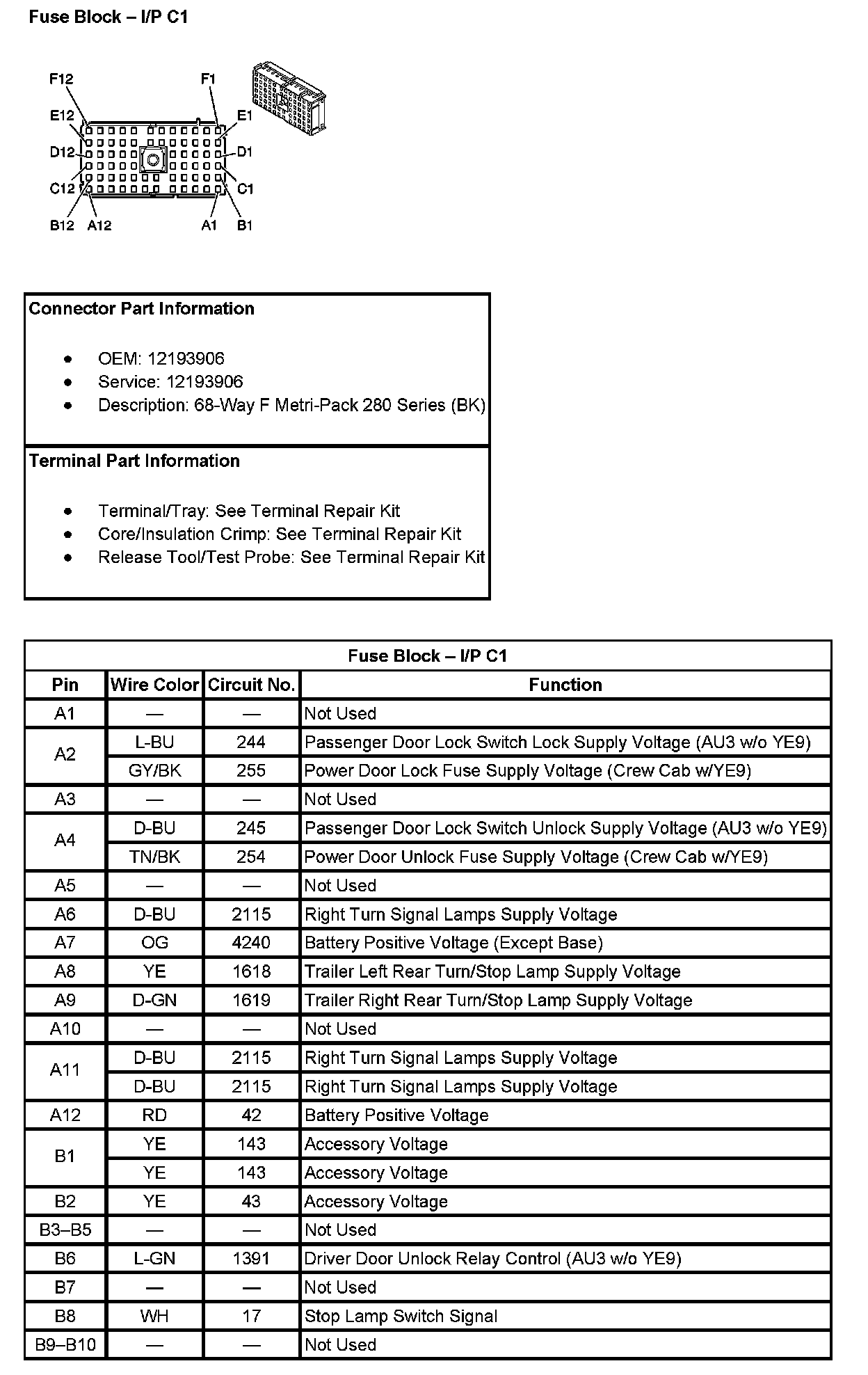

Fuse Block - I/P C1 (Pin A1 To B10):

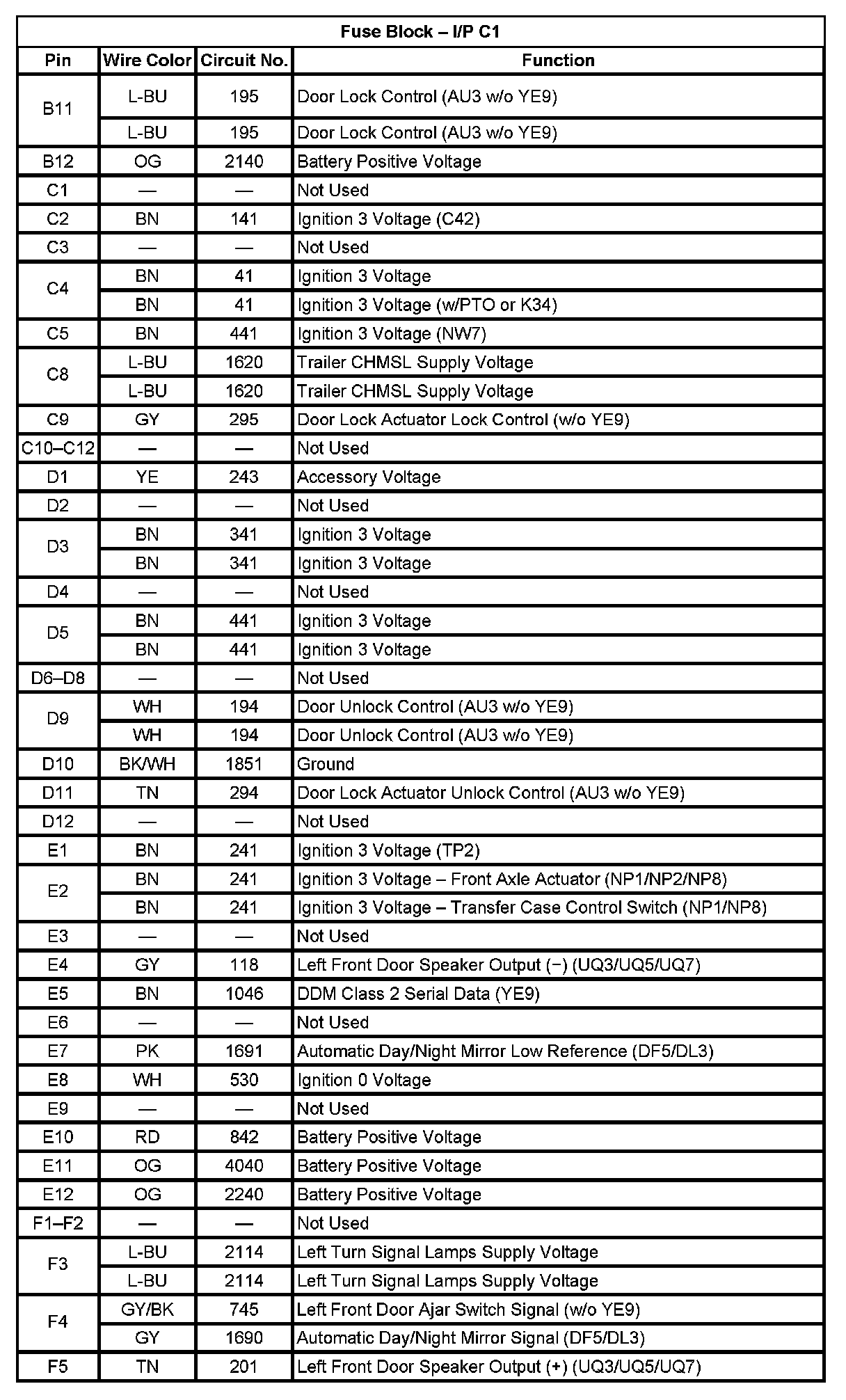

Fuse Block - I/P C1 (Pin B11 To F5):




Fuse Block - I/P C1 (Pin F6 To F12):

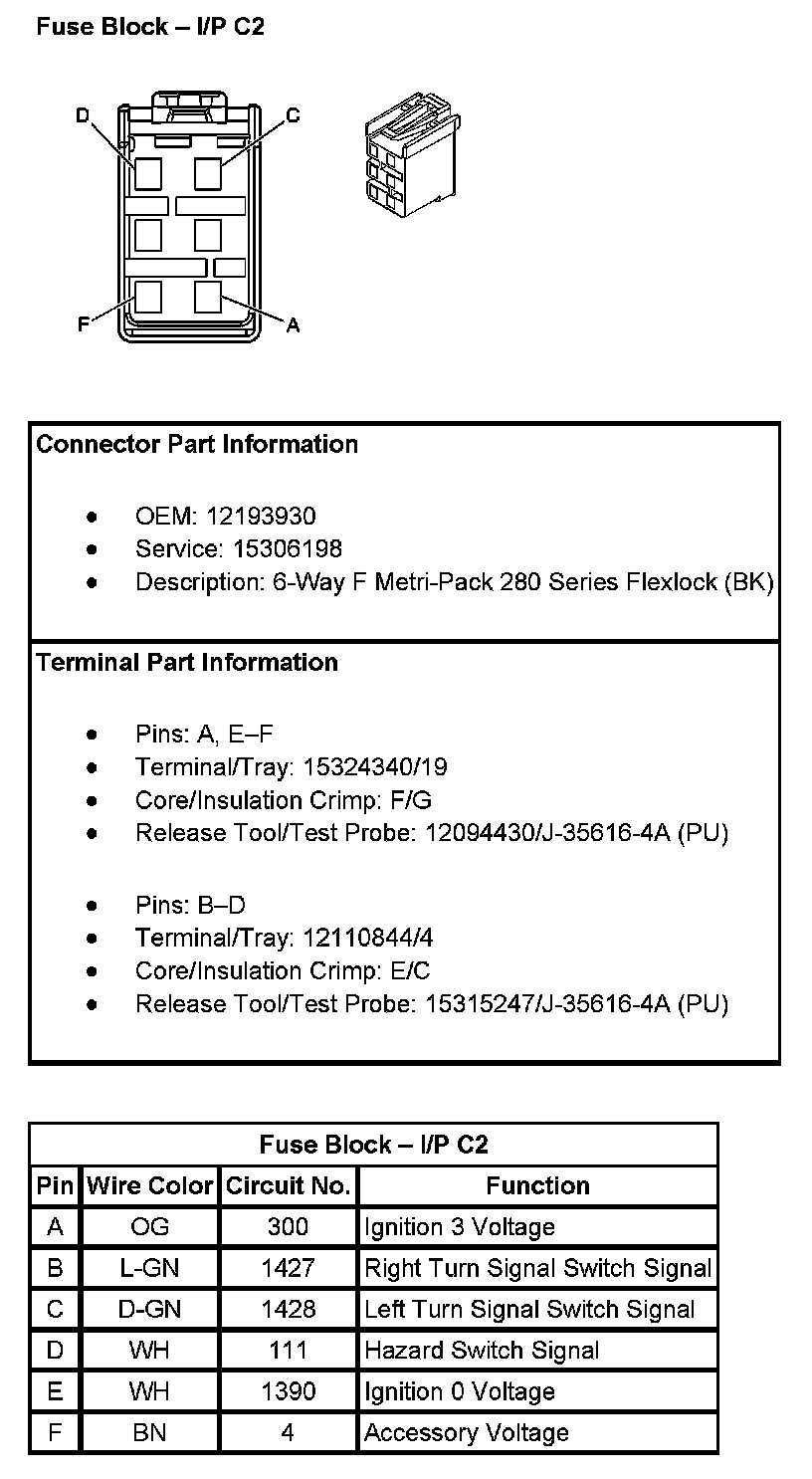

Fuse Block - I/P C2:

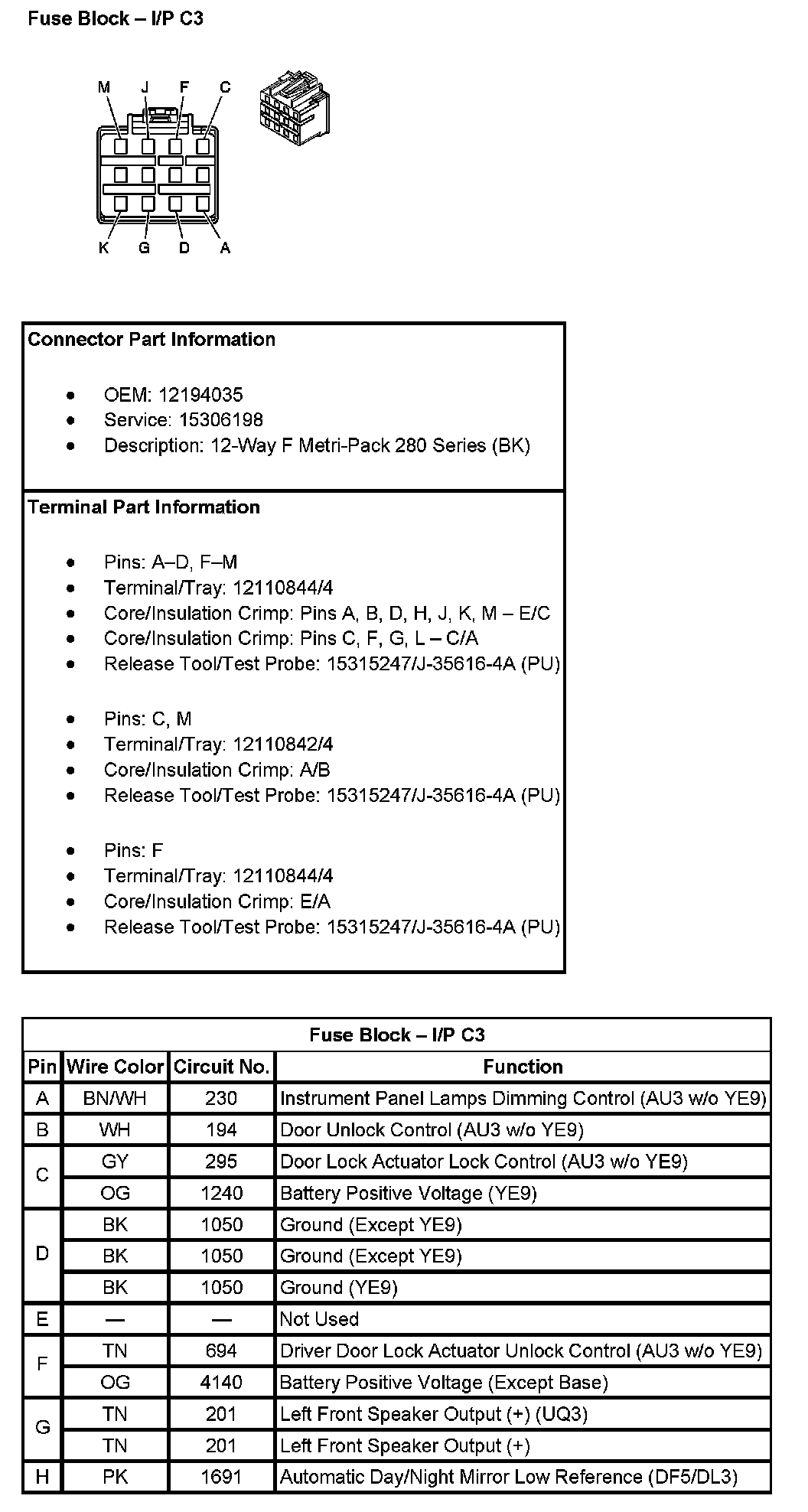

Fuse Block - I/P C3 (Pin A To H):




Fuse Block - I/P C3 (Pin J To M):

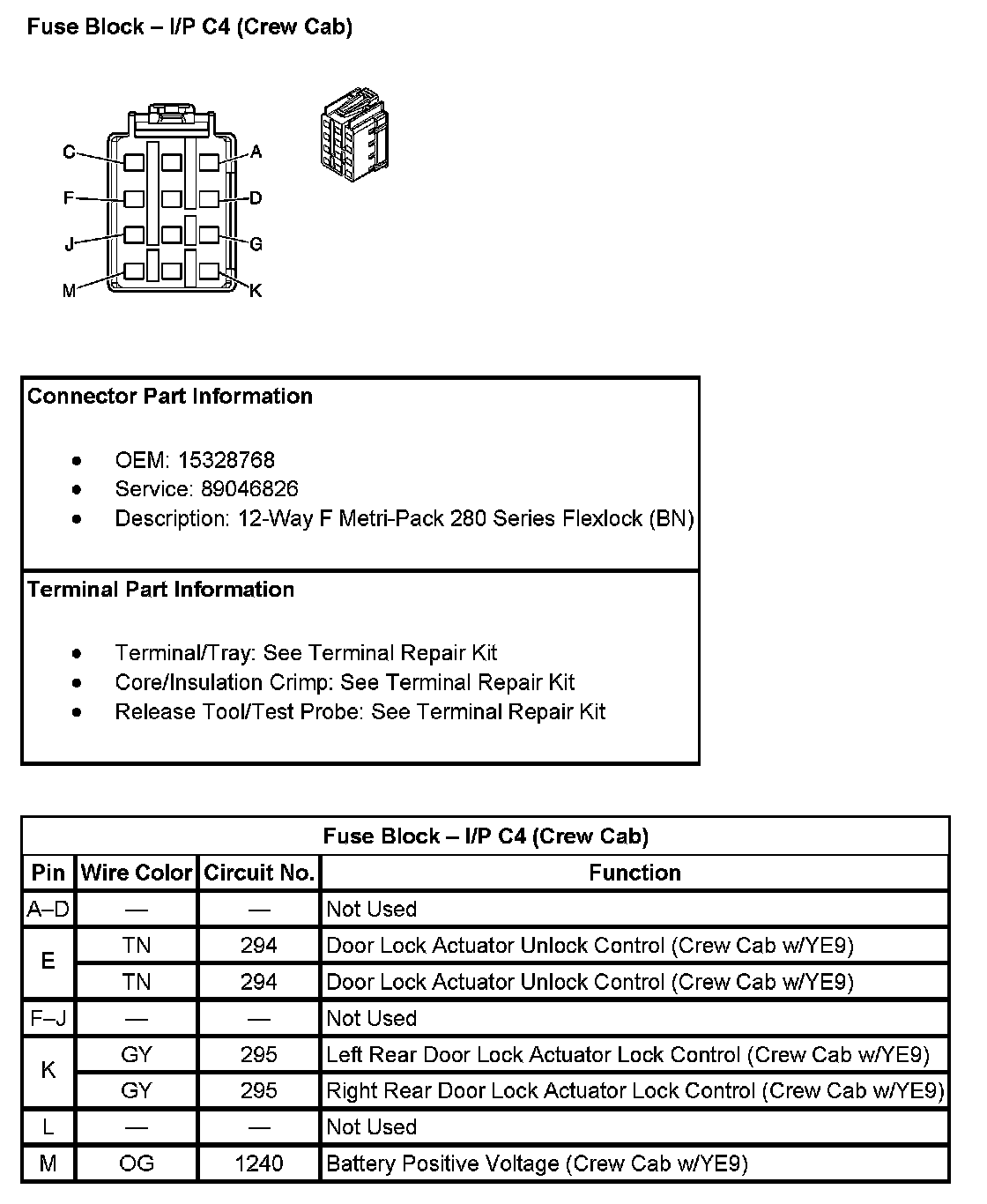

Fuse Block - I/P C4 (Crew Cab):
