Charging System Test (w Generator/Battery Control Module)



Charging System Test (w Generator/Battery Control Module)

Test

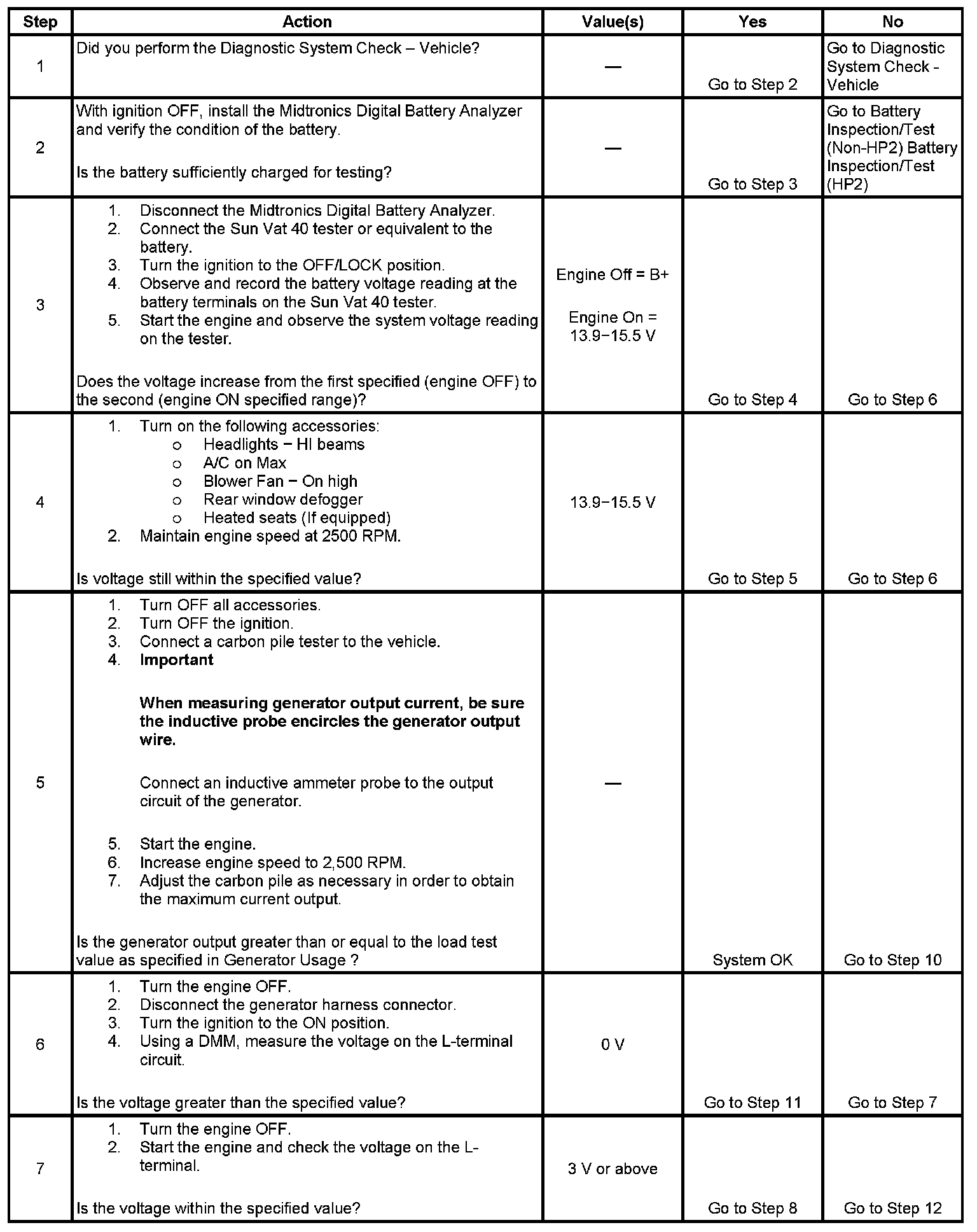

Step 1 - Step 7:

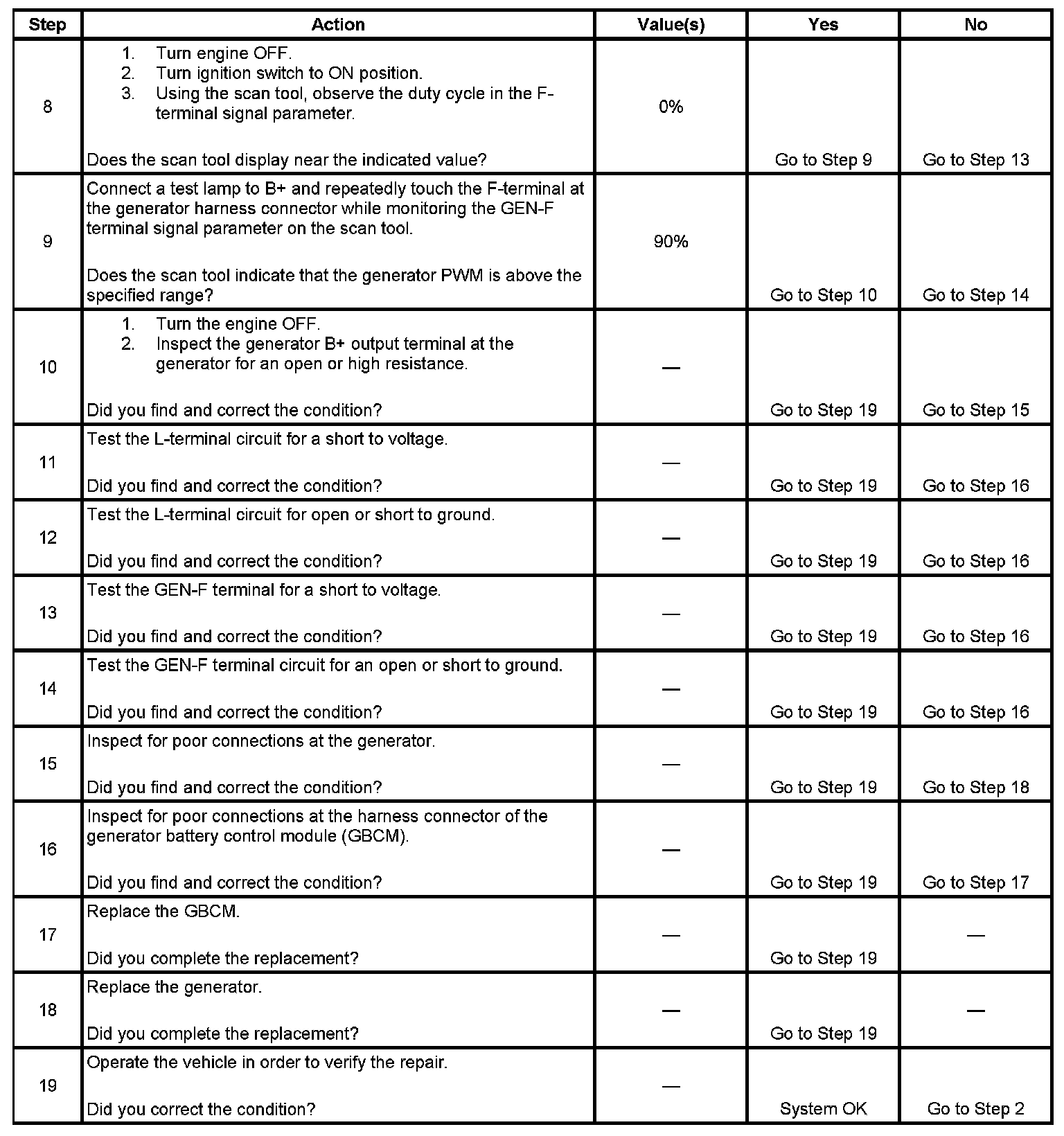

Step 8 - Step 19:
