Installation Procedure

    Fig 1: View Of Cable Retainers
    GM1544744Courtesy of GENERAL MOTORS CORP.
  1. Install the battery current sensor. Refer to Battery Current Sensor Replacement .
  2. Join the negative and battery positive cables.
  3. Install the negative and positive battery cables to the vehicle.
  4. Install the battery cable conduit retainers to the inner fender (1) and the lower tie bar (2).

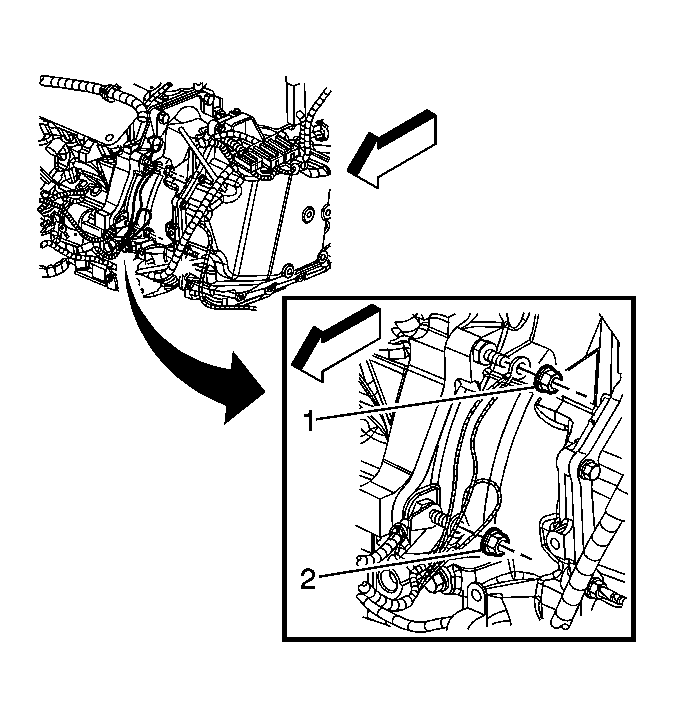

    5. Fig 2: Locating Engine Harness Grounds
    GM1679875Courtesy of GENERAL MOTORS CORP.
  5. Install the negative battery cable to the transaxle stud.
  6. Install the engine harness ground terminal.
    7. NOTE: Refer to Fastener Notice .
  7. Install the engine harness ground nut (2).

    Tighten:  Tighten the nut to 25 N.m (18 lb ft).

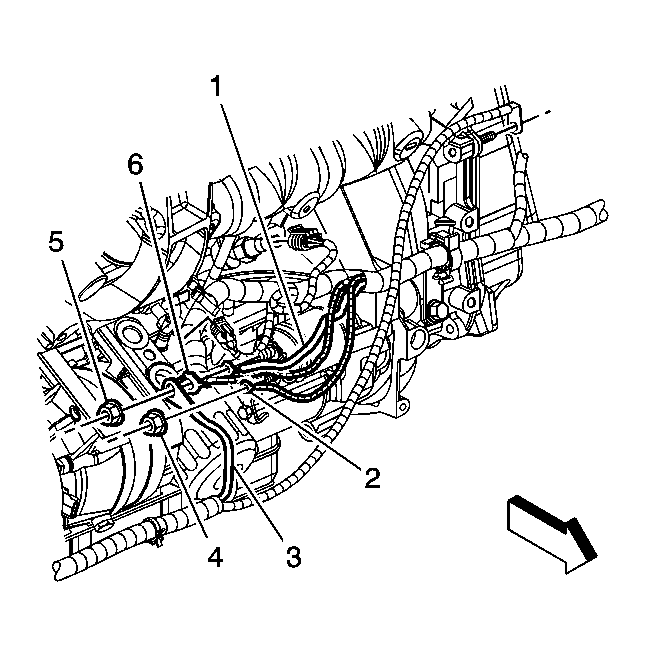

    8. Fig 3: Remove/Install Battery Cable At Starter
    GM1679419Courtesy of GENERAL MOTORS CORP.
  8. Install the positive battery cable to the starter motor "BAT" terminal.
  9. Install the starter motor "BAT" terminal nut (5).

    Tighten:  Tighten the nut to 17 N.m (13 lb ft).

    10. Fig 4: Locating Battery Positive Cable Nut & Cable
    GM1544745Courtesy of GENERAL MOTORS CORP.
  10. Install the radiator air baffle. Refer to Radiator Air Baffle Assemblies and Deflectors .
  11. Install the I/P wiring harness (4) terminal and the positive battery cable (3) terminal to the junction block stud (2).
  12. Install the positive battery cable to junction block nut (1).

    Tighten:  Tighten the nut to 10 N.m (89 lb in).

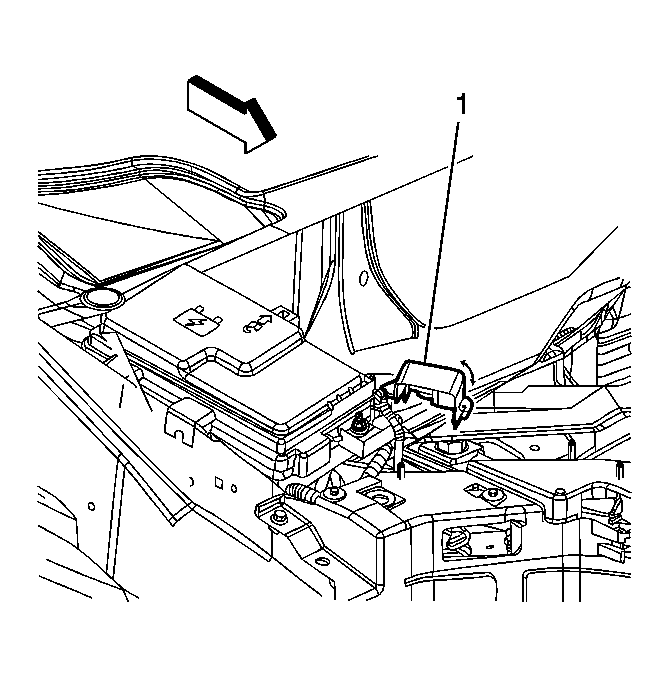

    13. Fig 5: Junction Block Cover
    GM1680883Courtesy of GENERAL MOTORS CORP.
  13. Close the junction block cover (1).
    14. Fig 6: Negative Battery Cable Ground
    GM1680886Courtesy of GENERAL MOTORS CORP.
  14. Install the negative battery cable ground (2) to the stud.
  15. Install the negative battery cable ground terminal nut (1) to the inner fender stud.

    Tighten:  Tighten the nut to 5 N.m (44 lb in).

    16. Fig 7: View Of Battery & Cables
    GM1544743Courtesy of GENERAL MOTORS CORP.
  16. Install the positive battery cable to the battery.
  17. Tighten the positive battery cable nut (3).

    Tighten:  Tighten the bolt to 16 N.m (12 lb ft).

  18. Close the positive battery cable cover (5).
    19. Fig 8: Disconnecting/Reconnecting Battery Current Sensor Electrical Connector
    GM1533512Courtesy of GENERAL MOTORS CORP.
  19. Connect the battery current sensor electrical connector (2).
  20. Connect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection .
