HVAC Component Views

HVAC Component Views

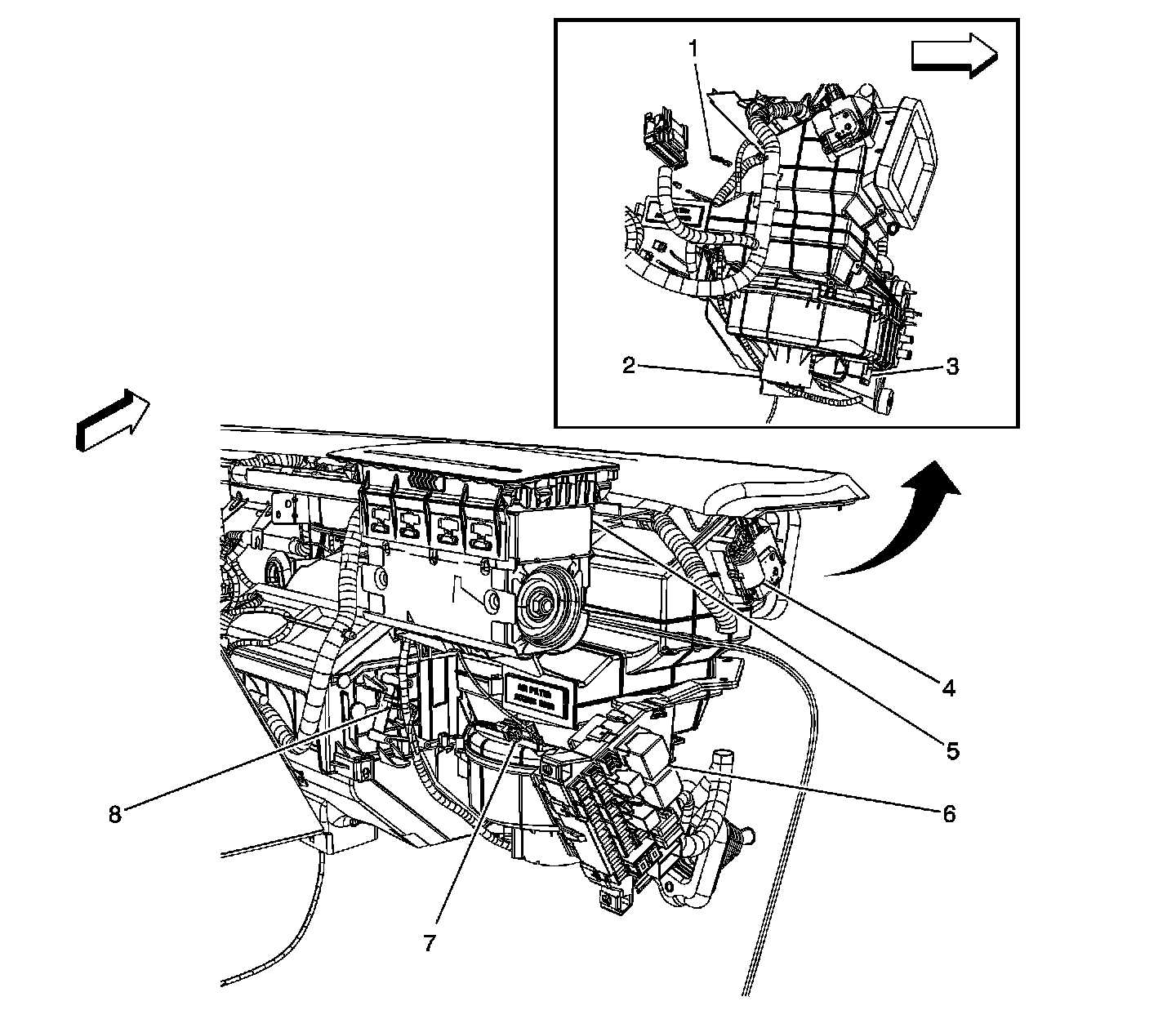

Right Side of I/P Components




1 - G200
2 - Blower Motor
3 - Blower Motor Resistor Assembly
4 - Recirculation Actuator
5 - Inflatable Restraint I/P Module
6 - Fuse Block - I/P
7 - Evaporative Temperature Sensor
8 - C205 I/P Harness to HVAC Jumper Harness (CJ3) (Air Temperature Actuator - Right)
