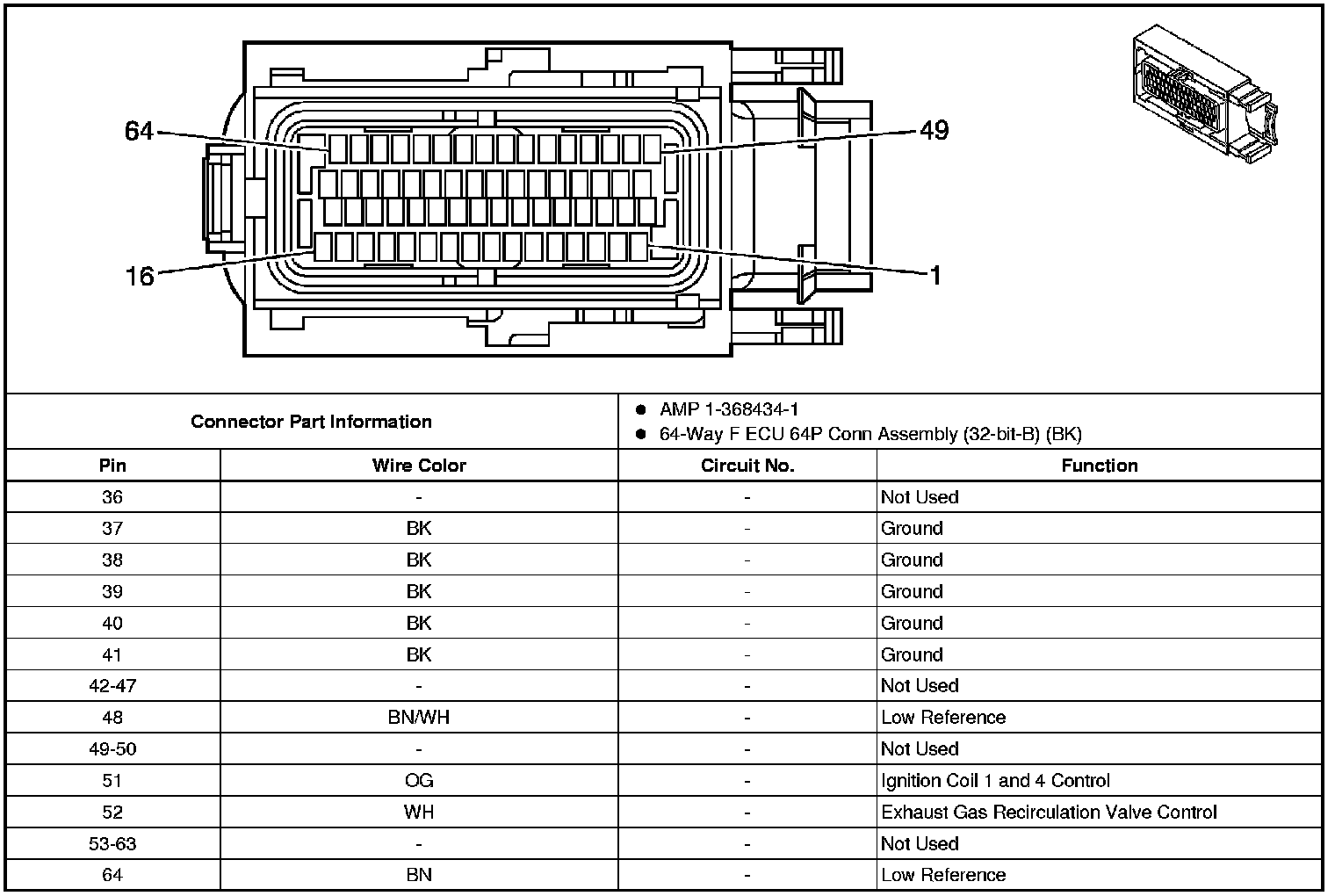

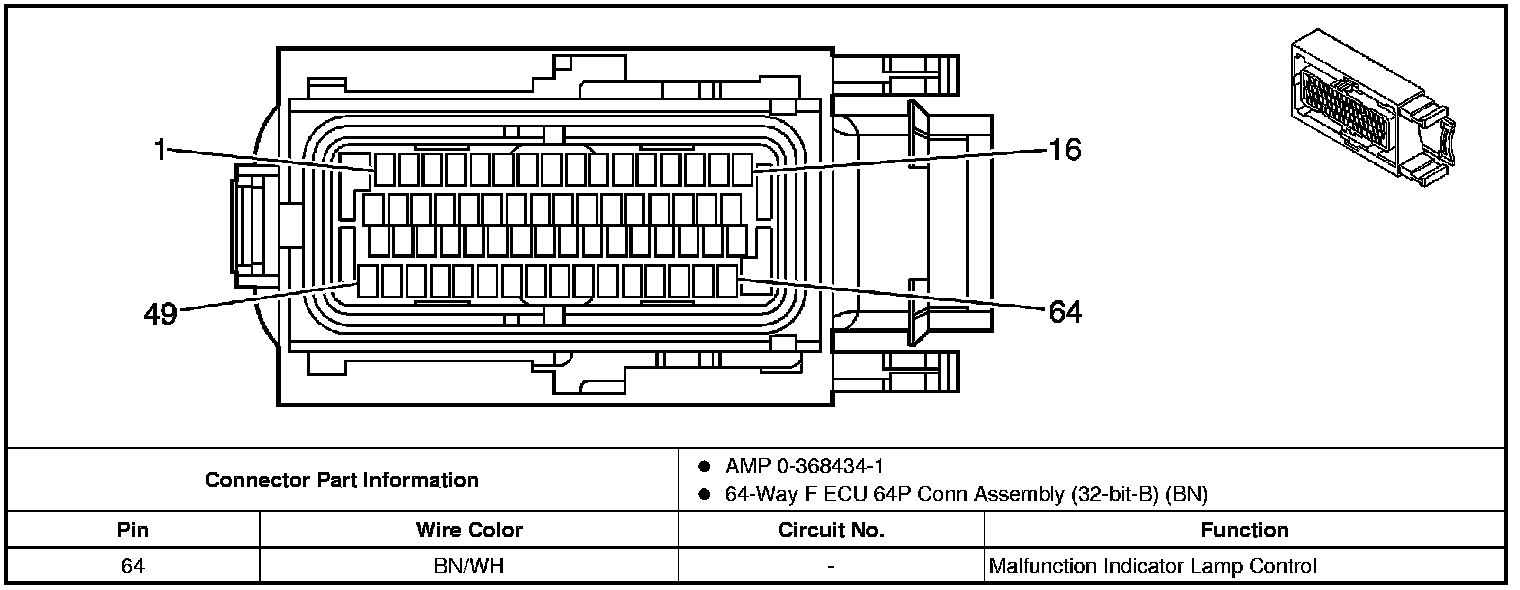

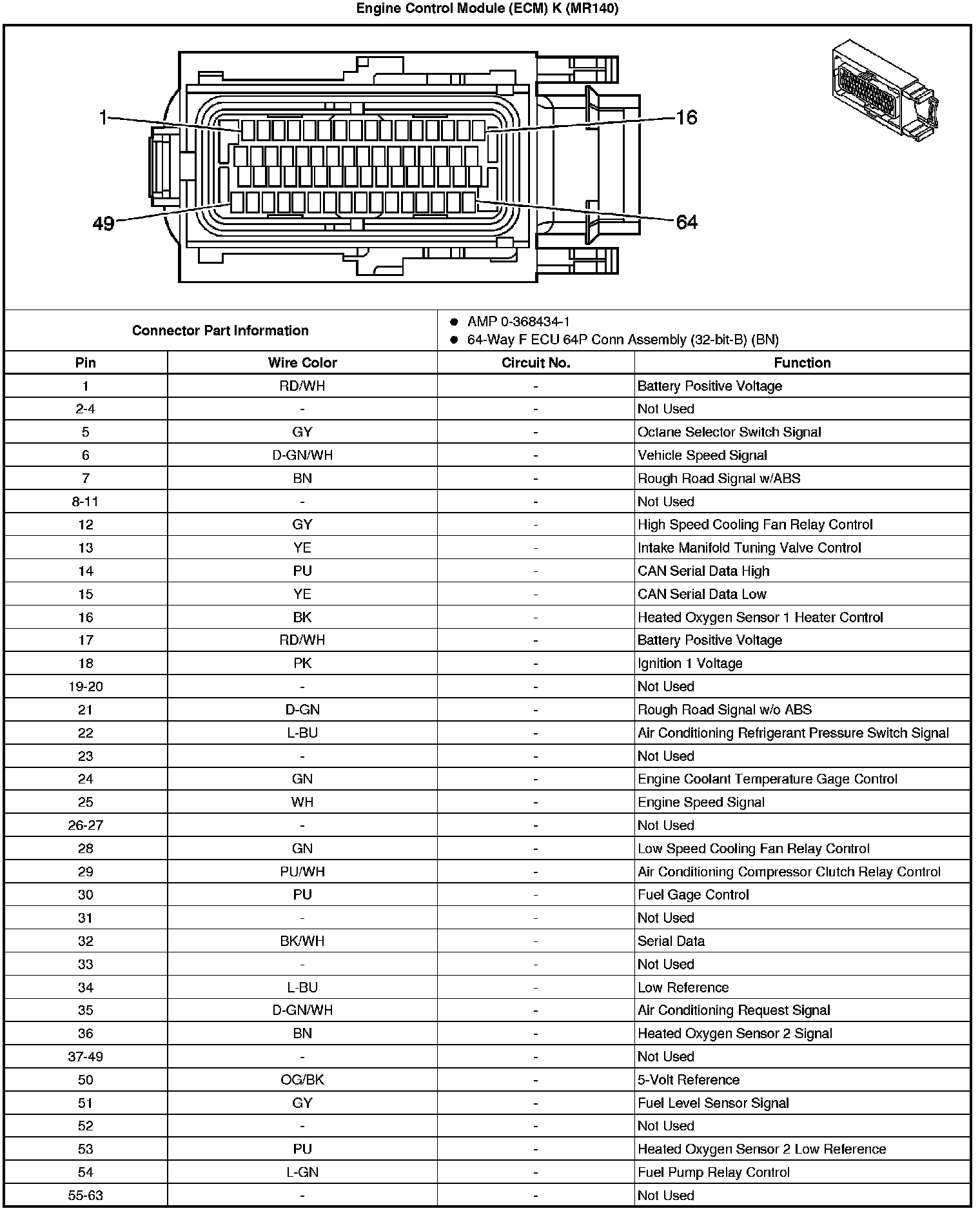

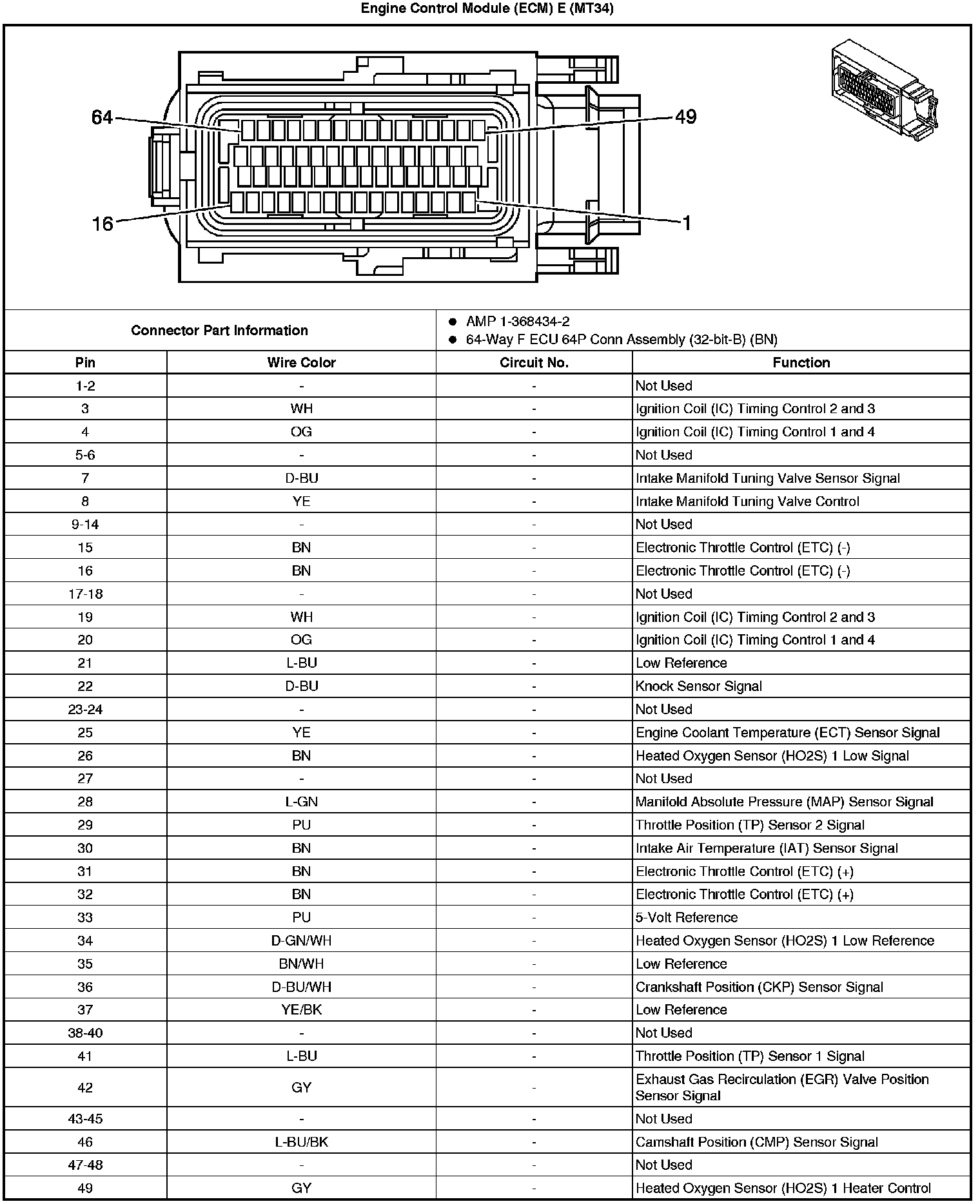

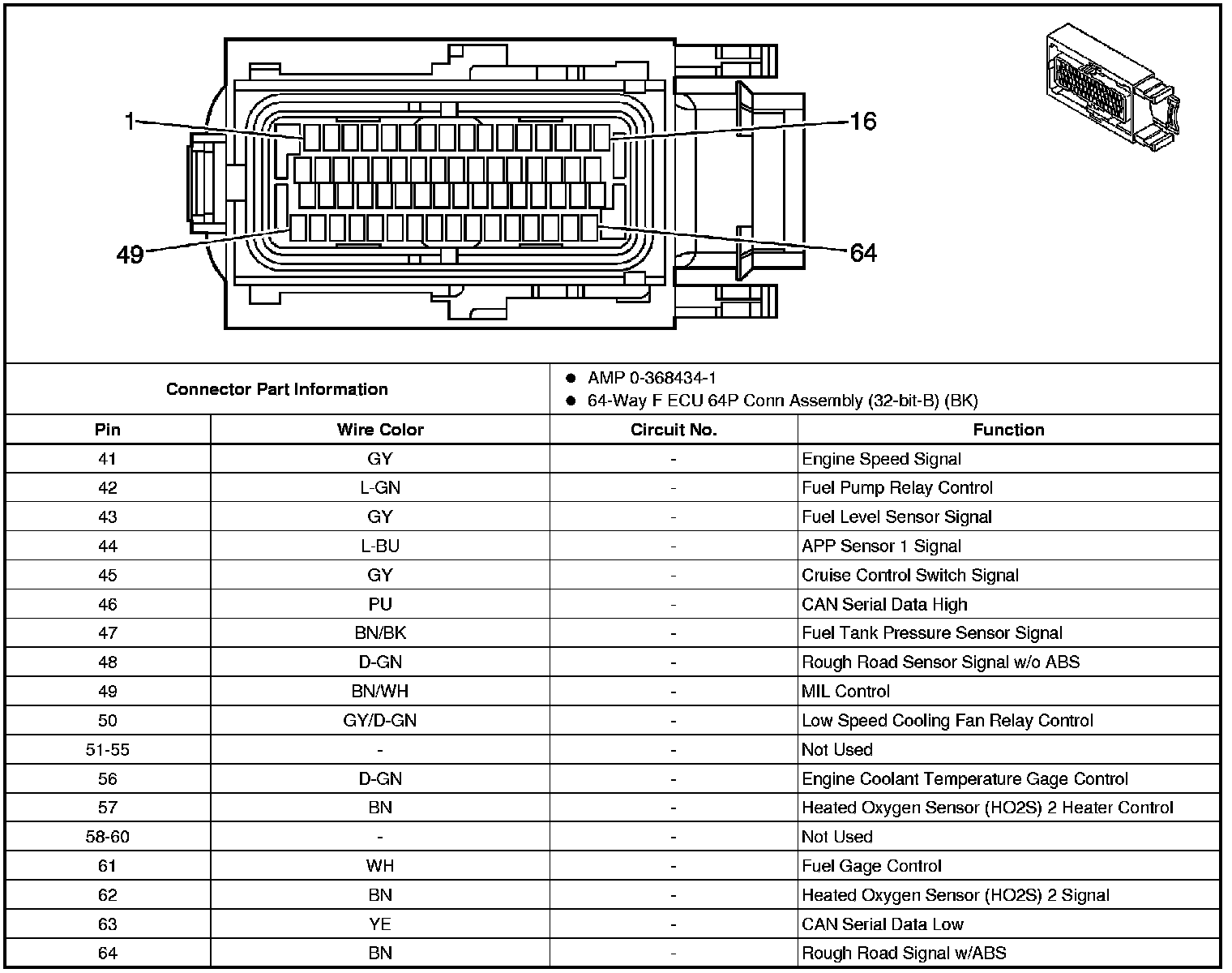

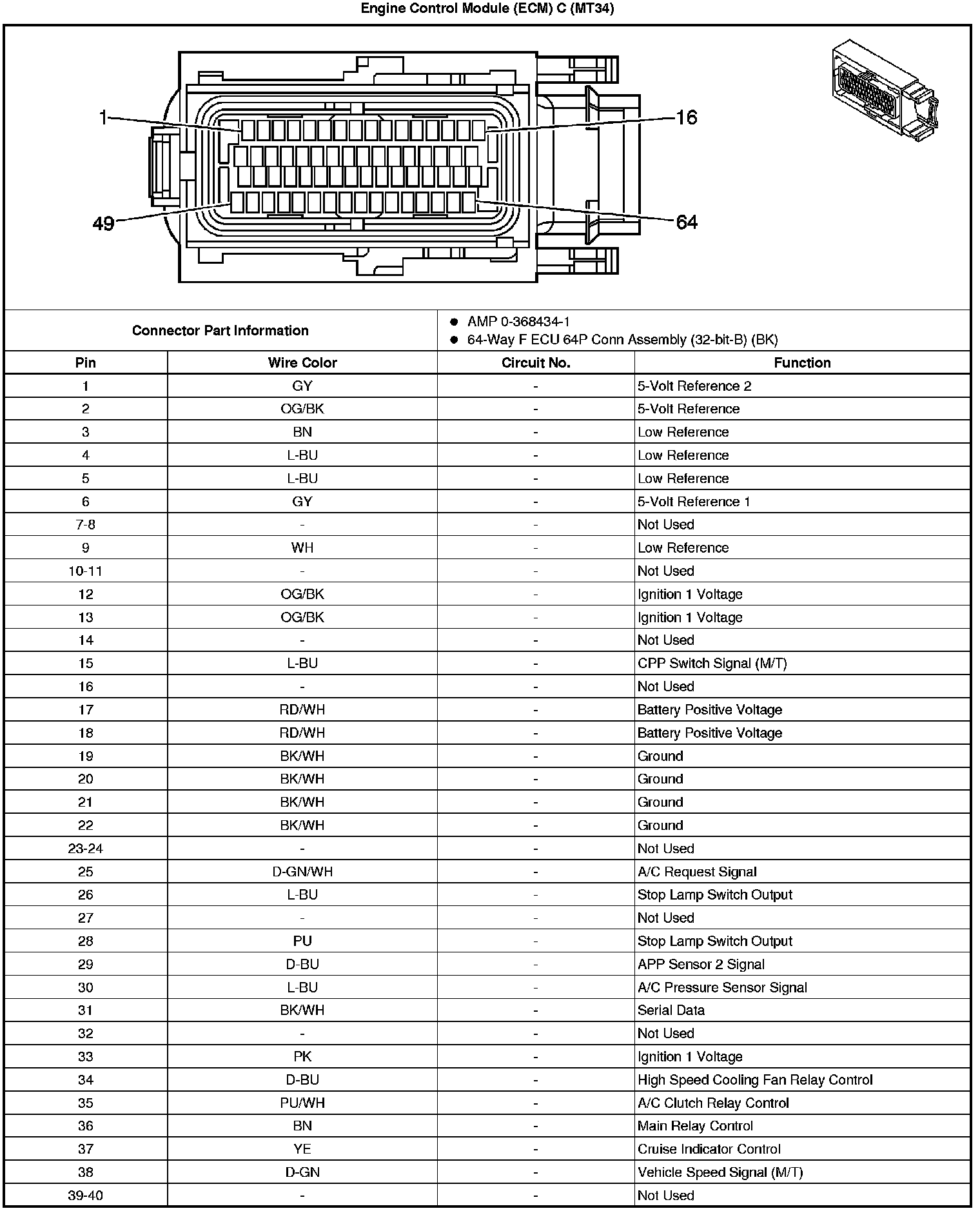

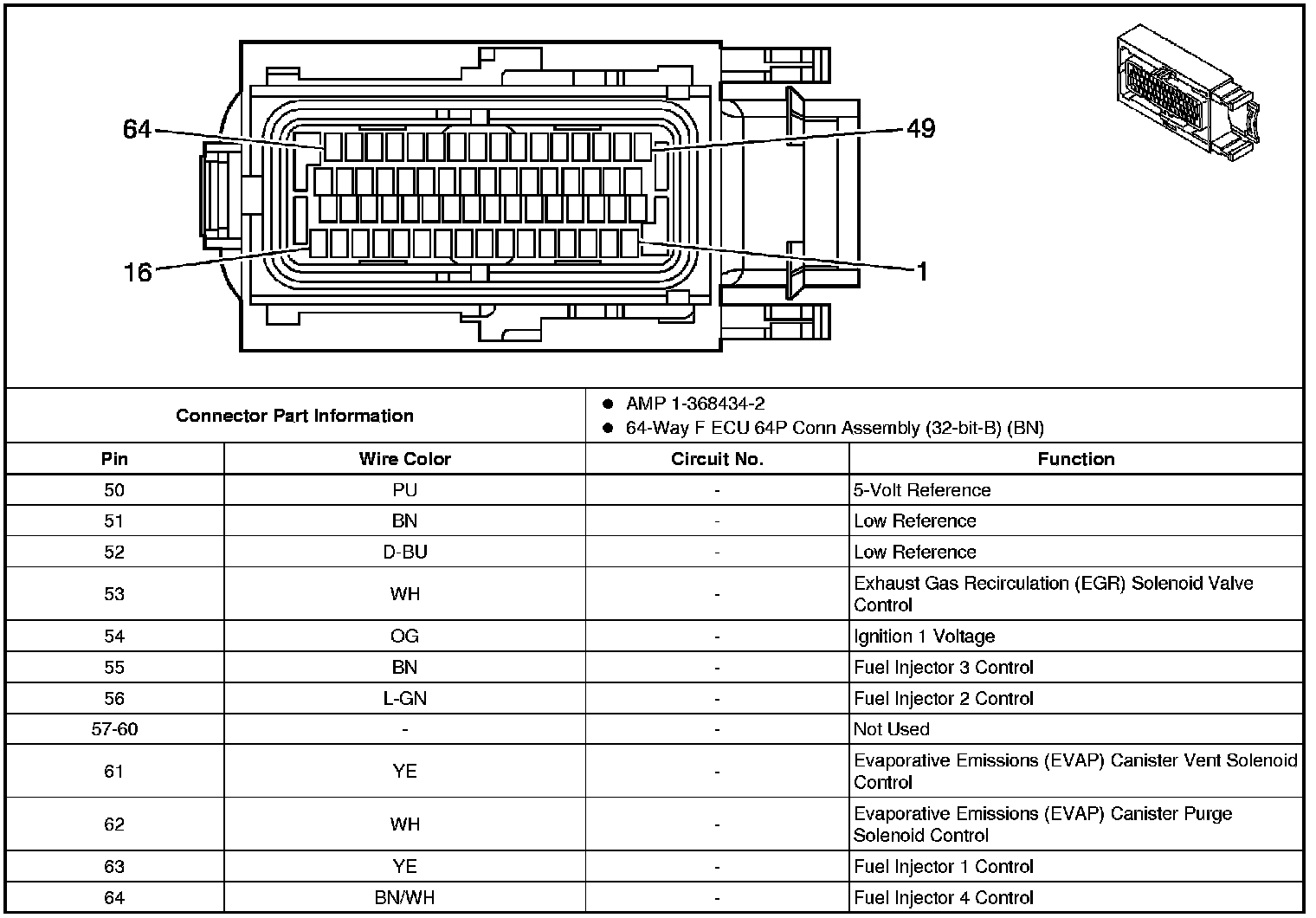

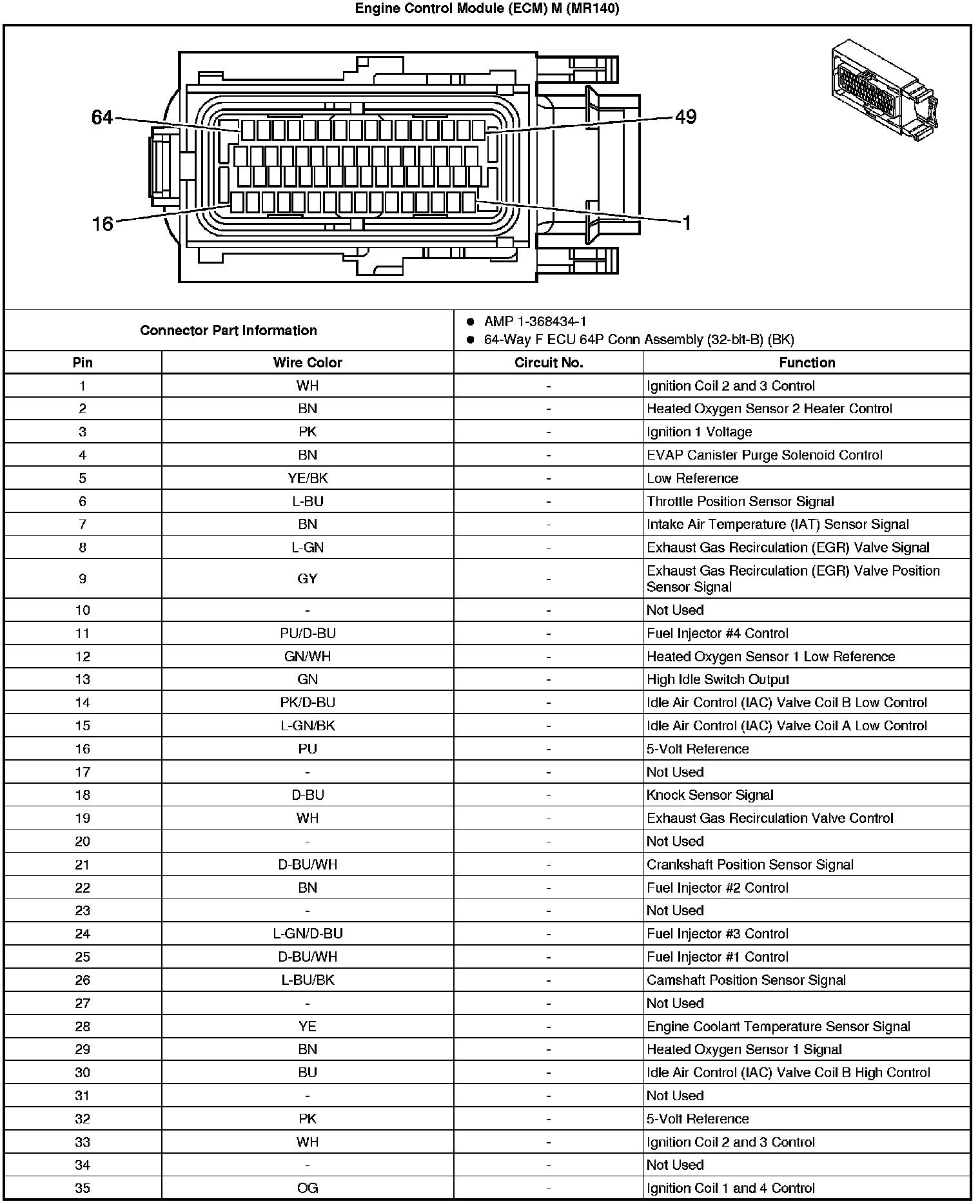

Engine Control Module Connector End Views (Hatchback)
Engine Control Module
Connector End Views (Hatchback)
