Electrical Center Identification Views (Notchback)



Electrical Center Identification Views (Notchback)

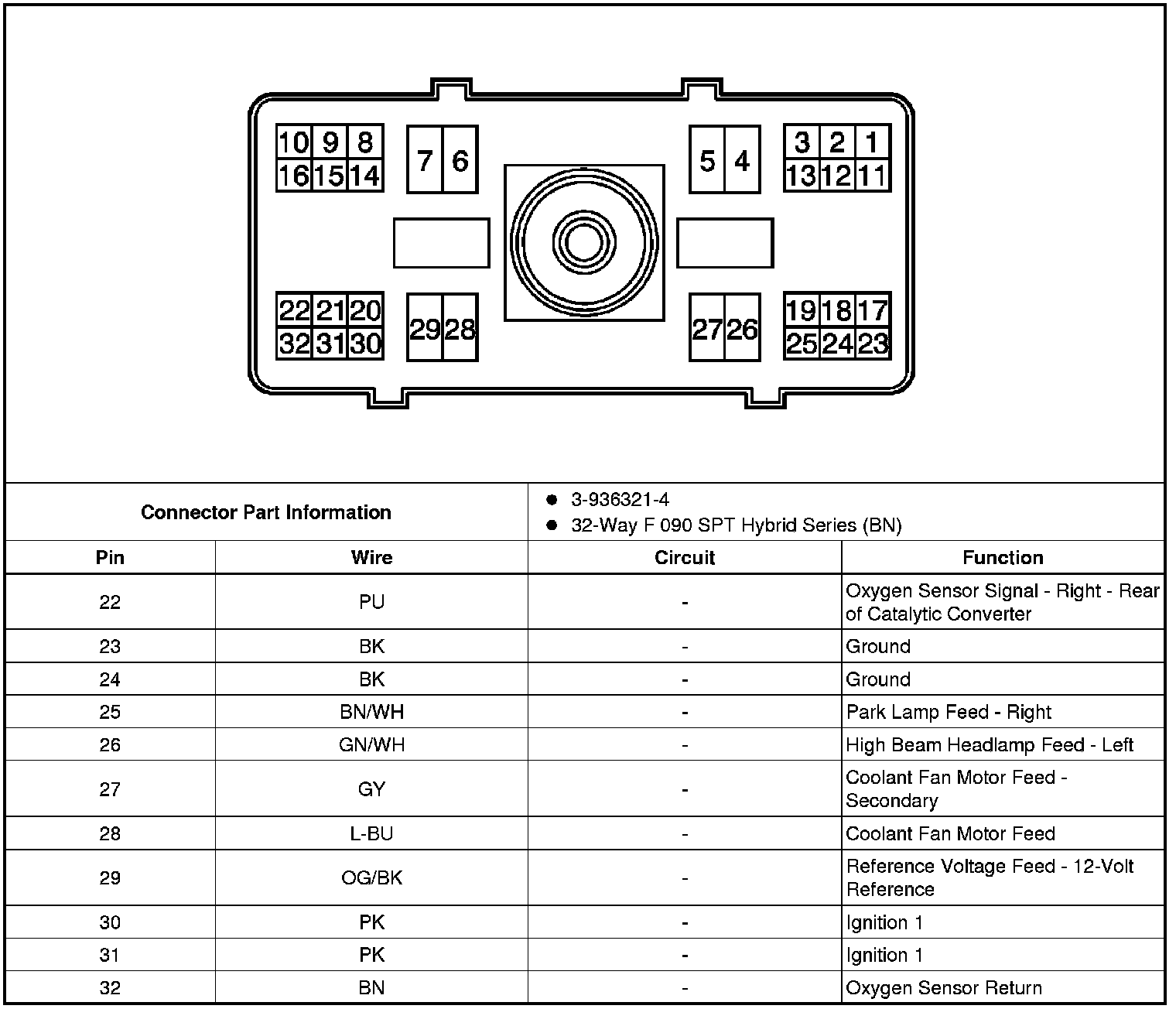

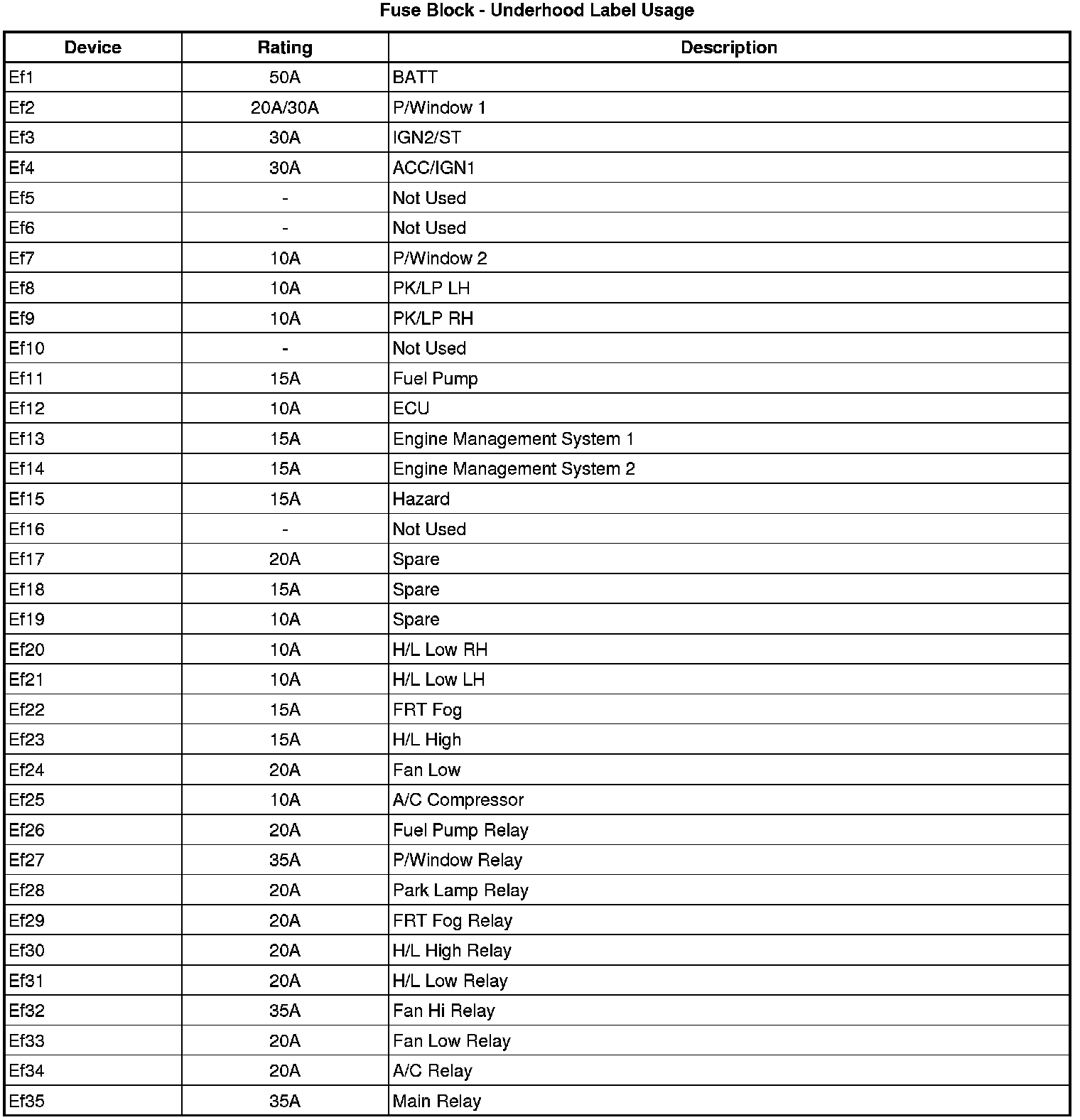

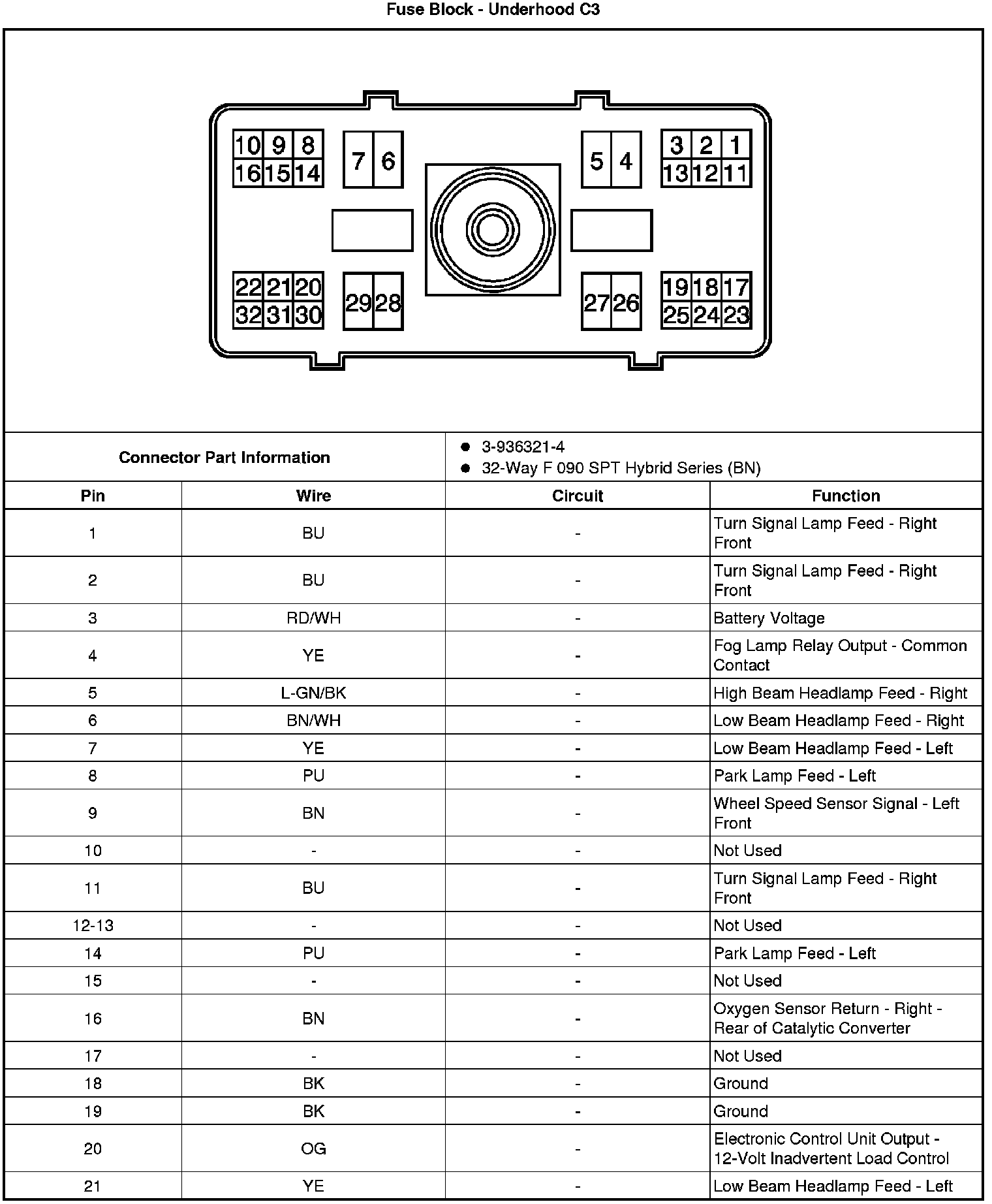

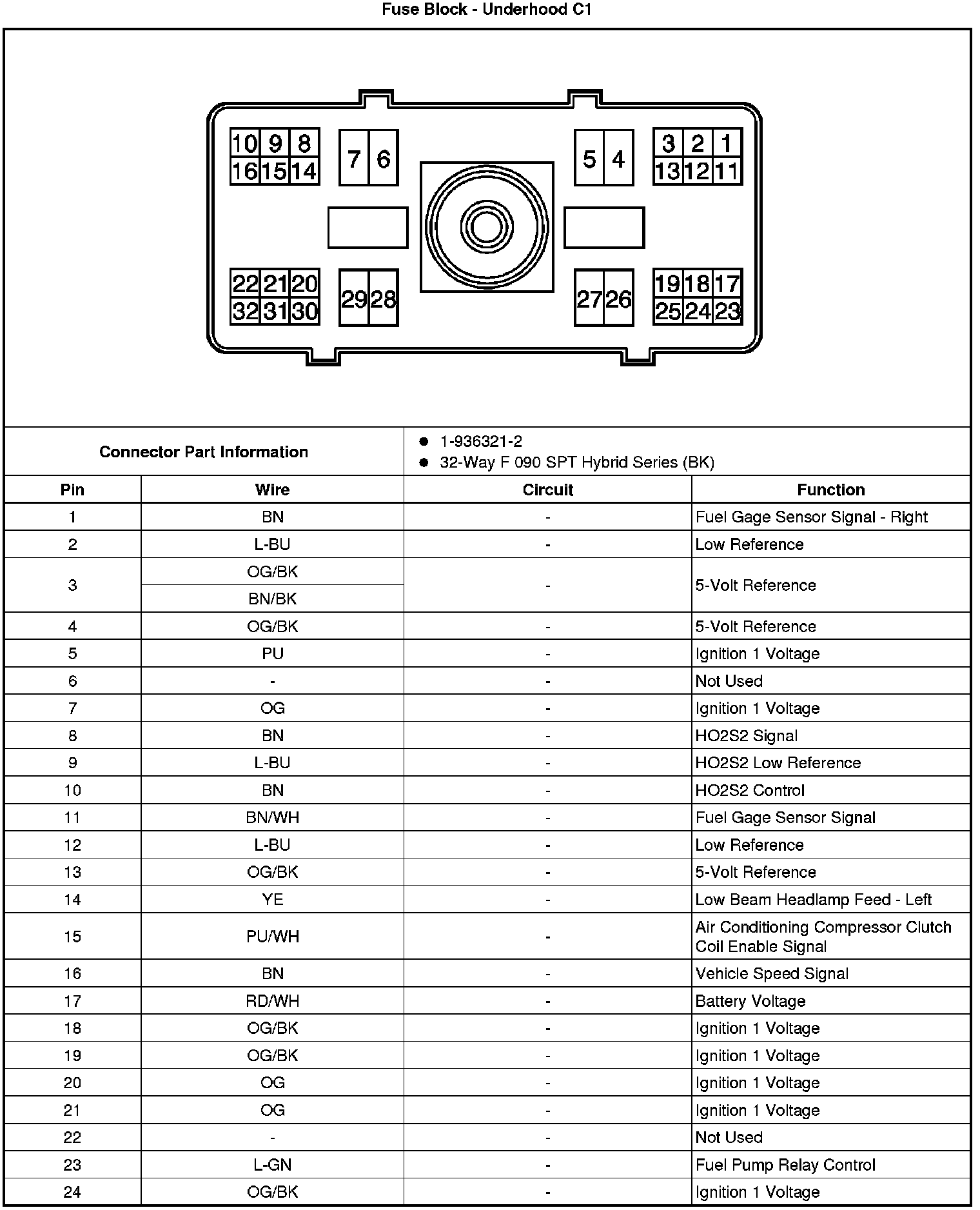

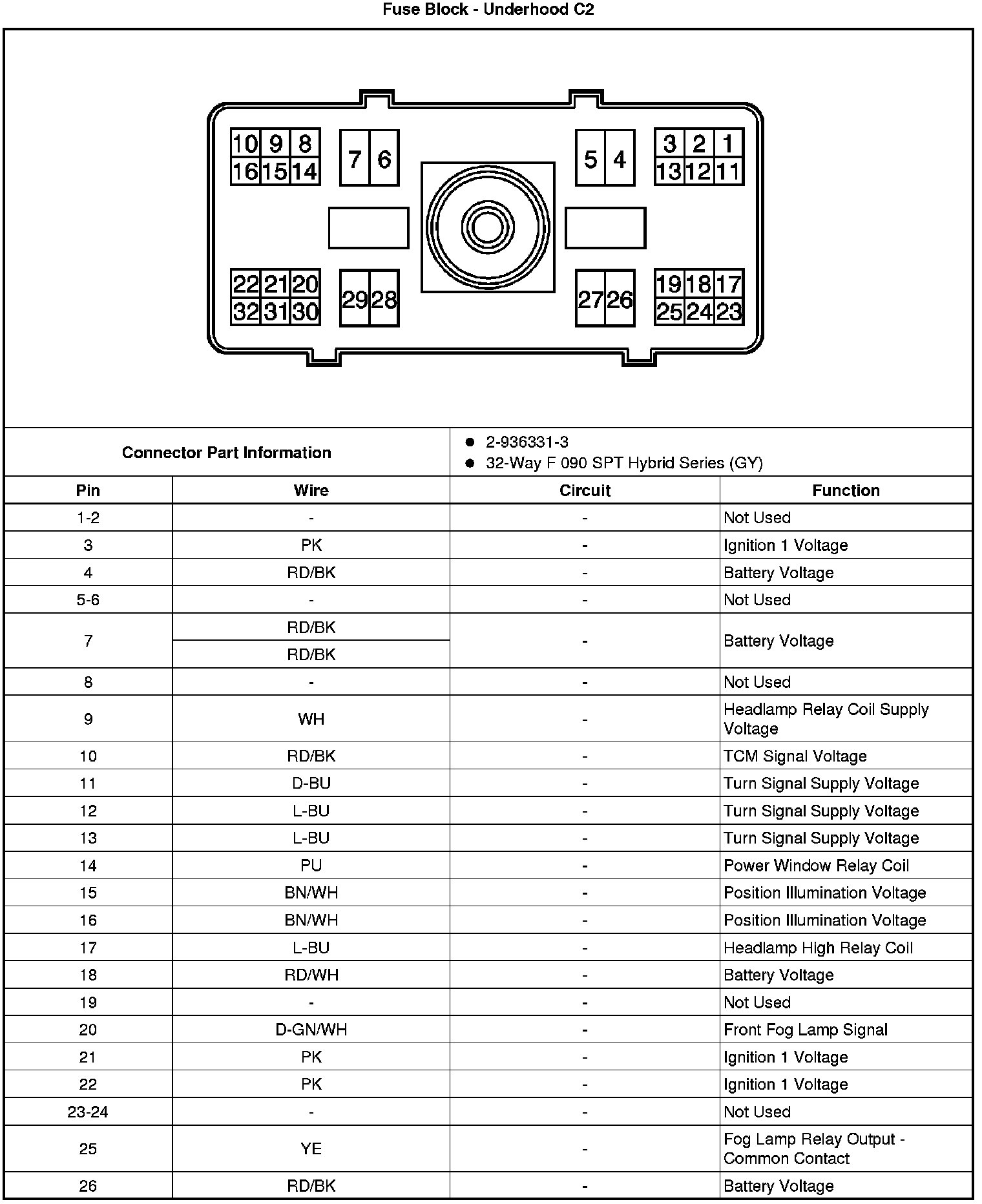

Fuse Block - Underhood









Fuse Block - Underhood (Bottom View)






























Fuse Block - I/P Label

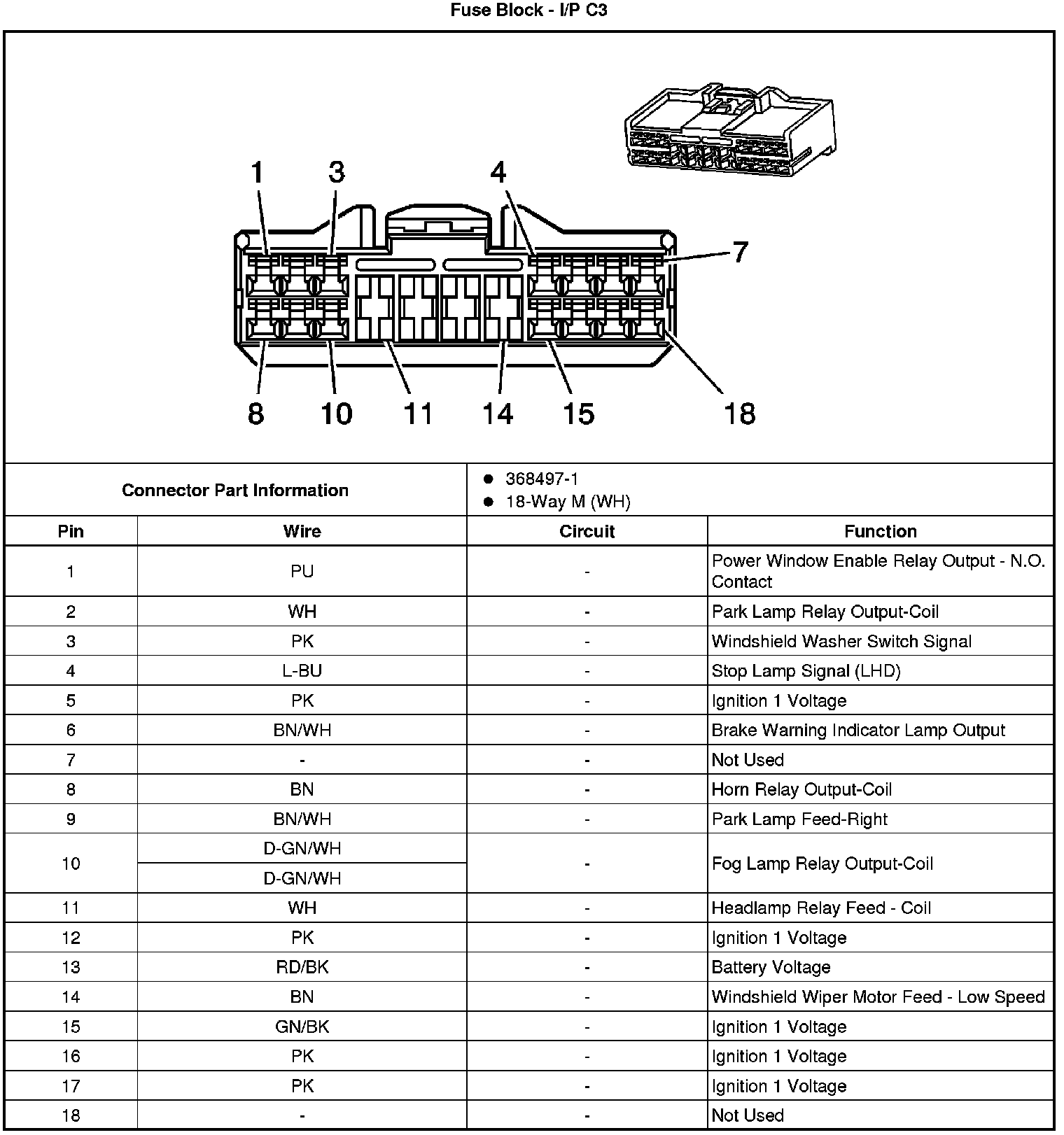

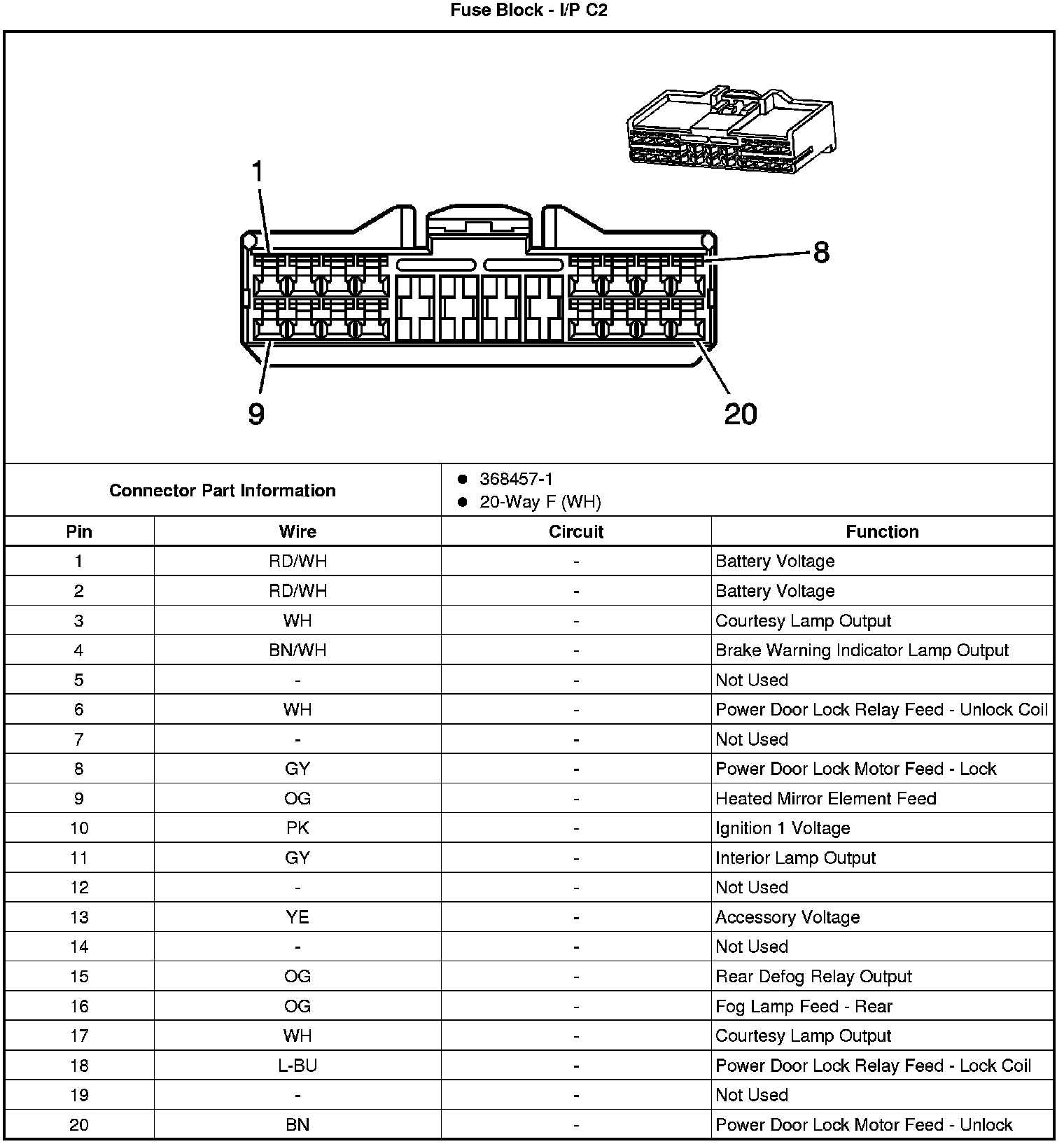

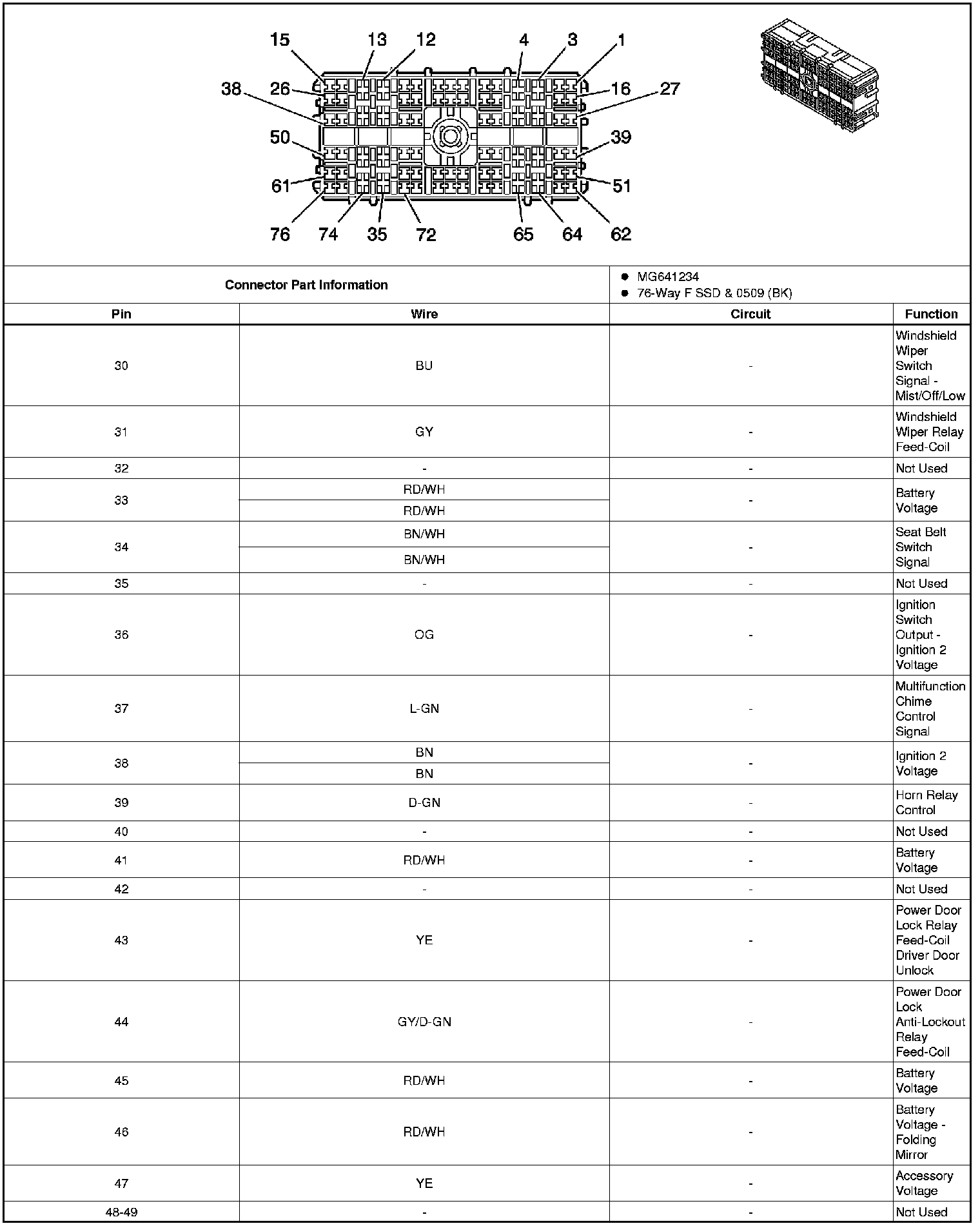

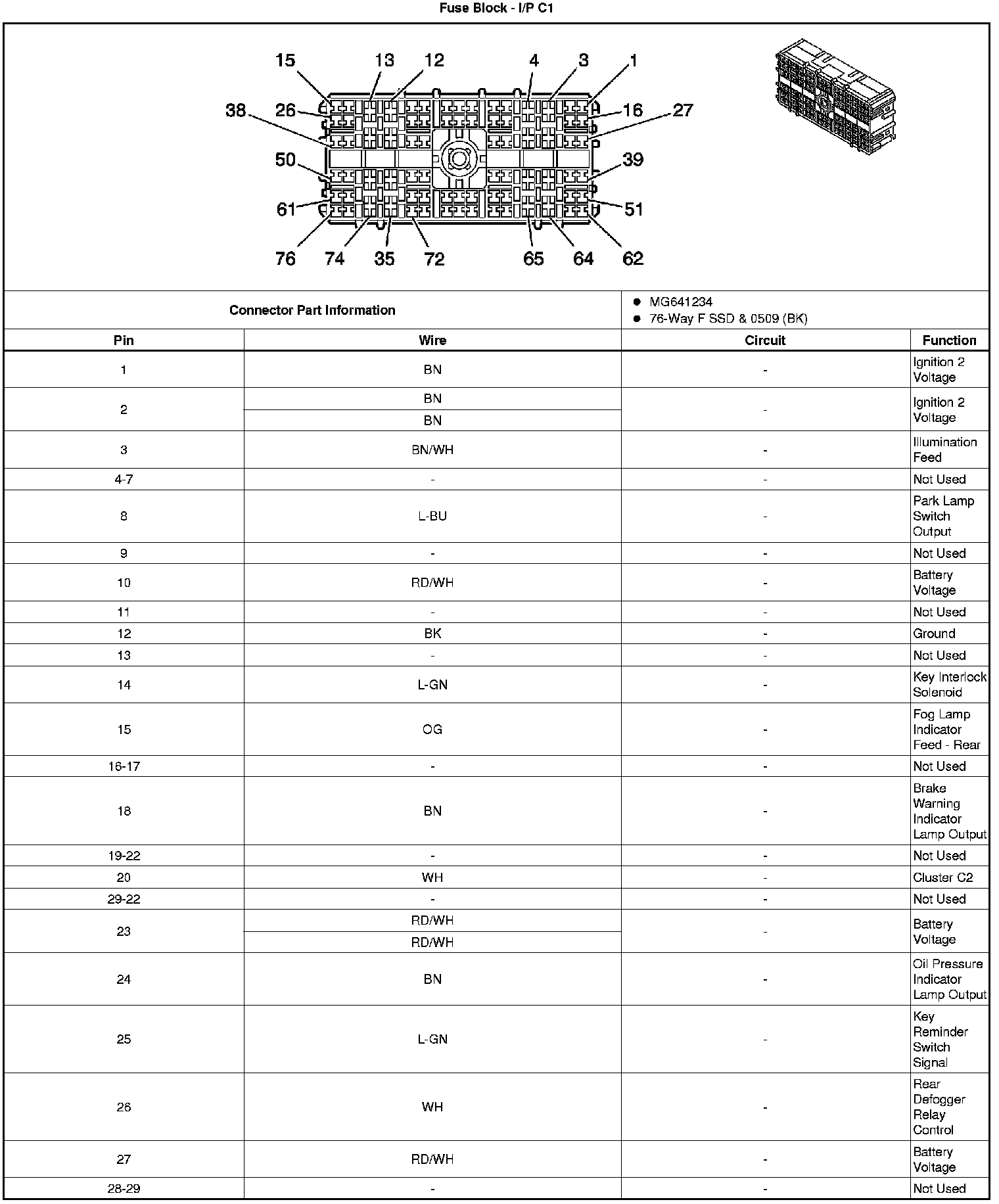

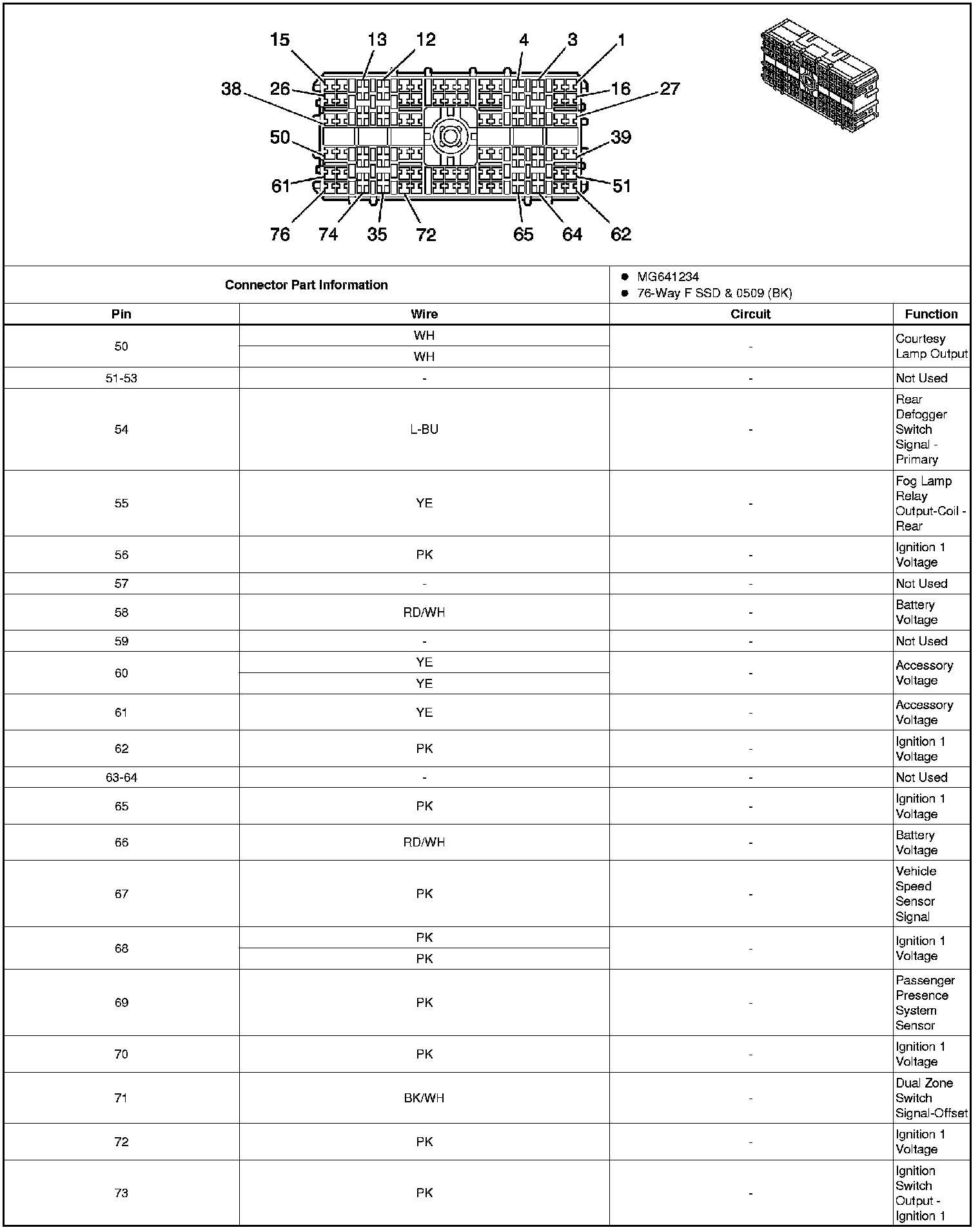

Fuse Block - I/P (Bottom View)
