Window Systems Connector End Views (Notchback)
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!

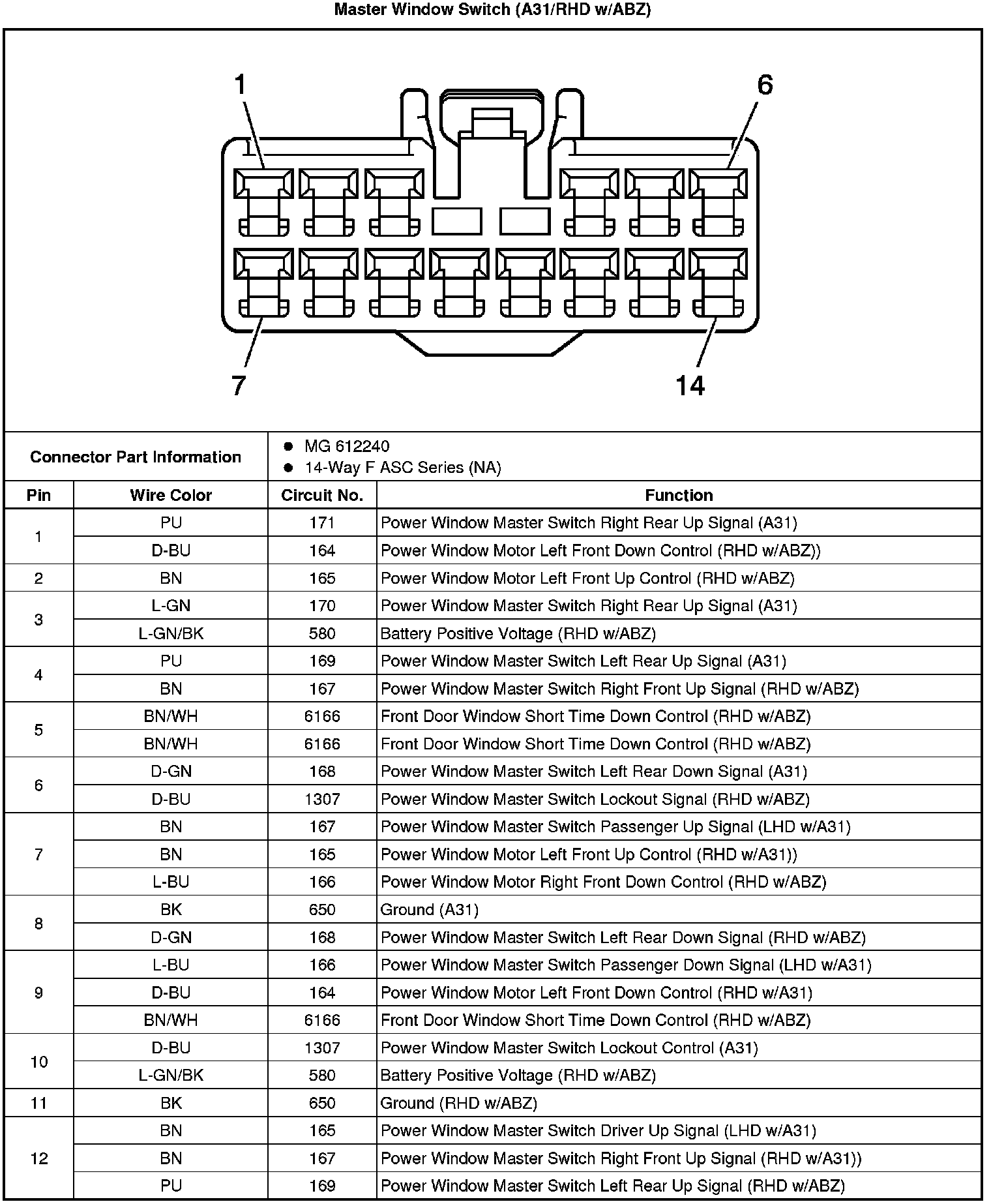

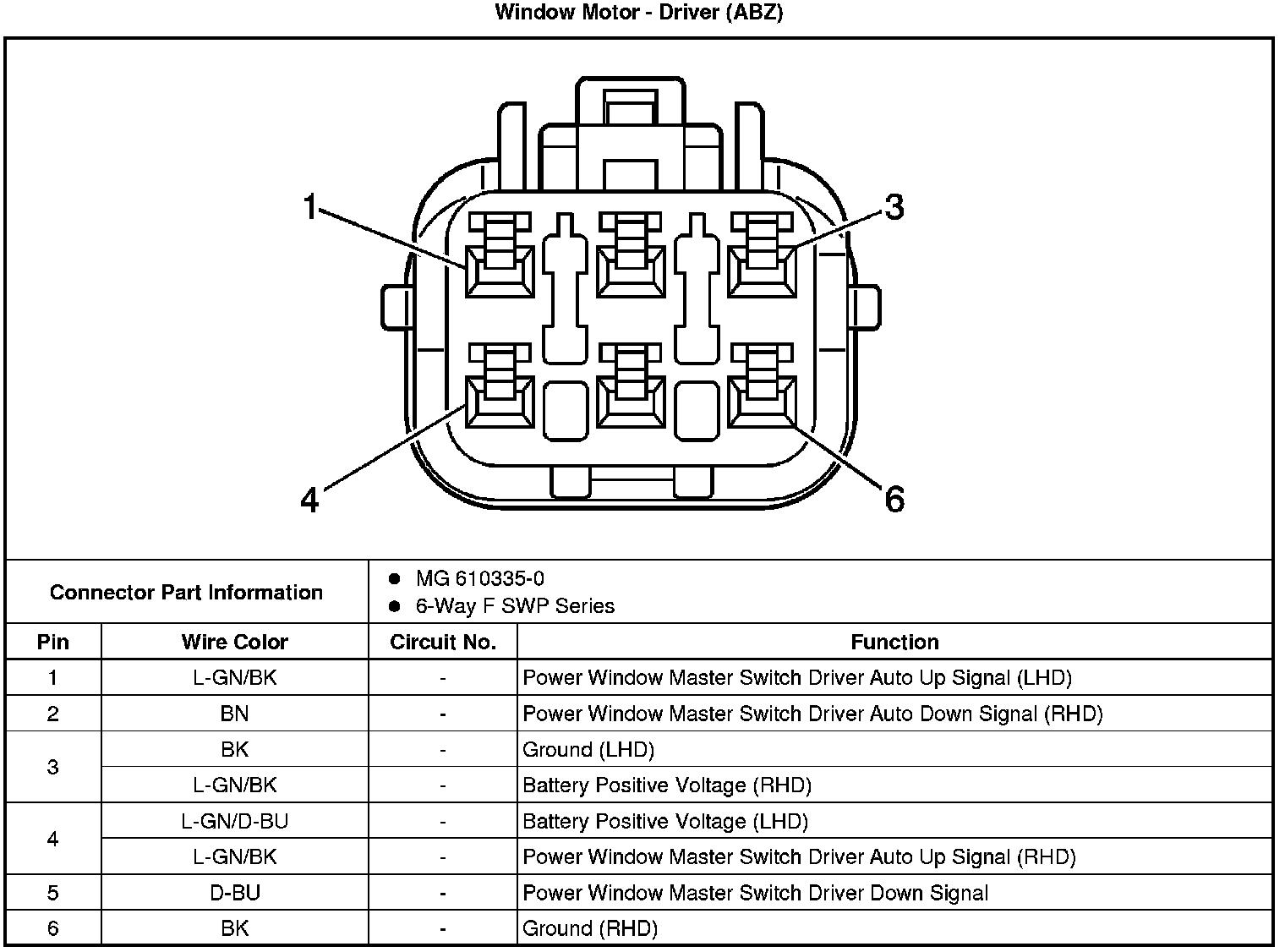

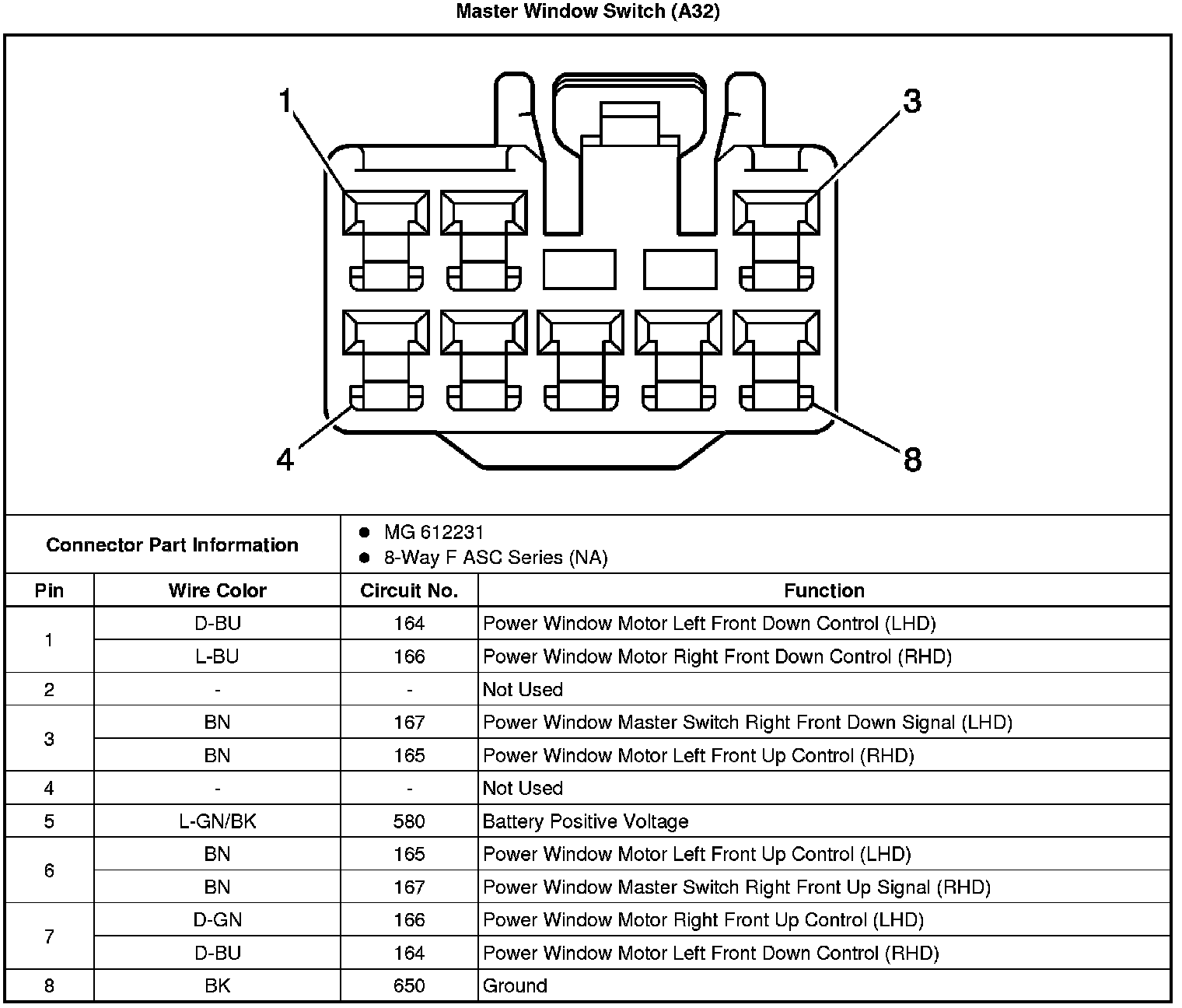

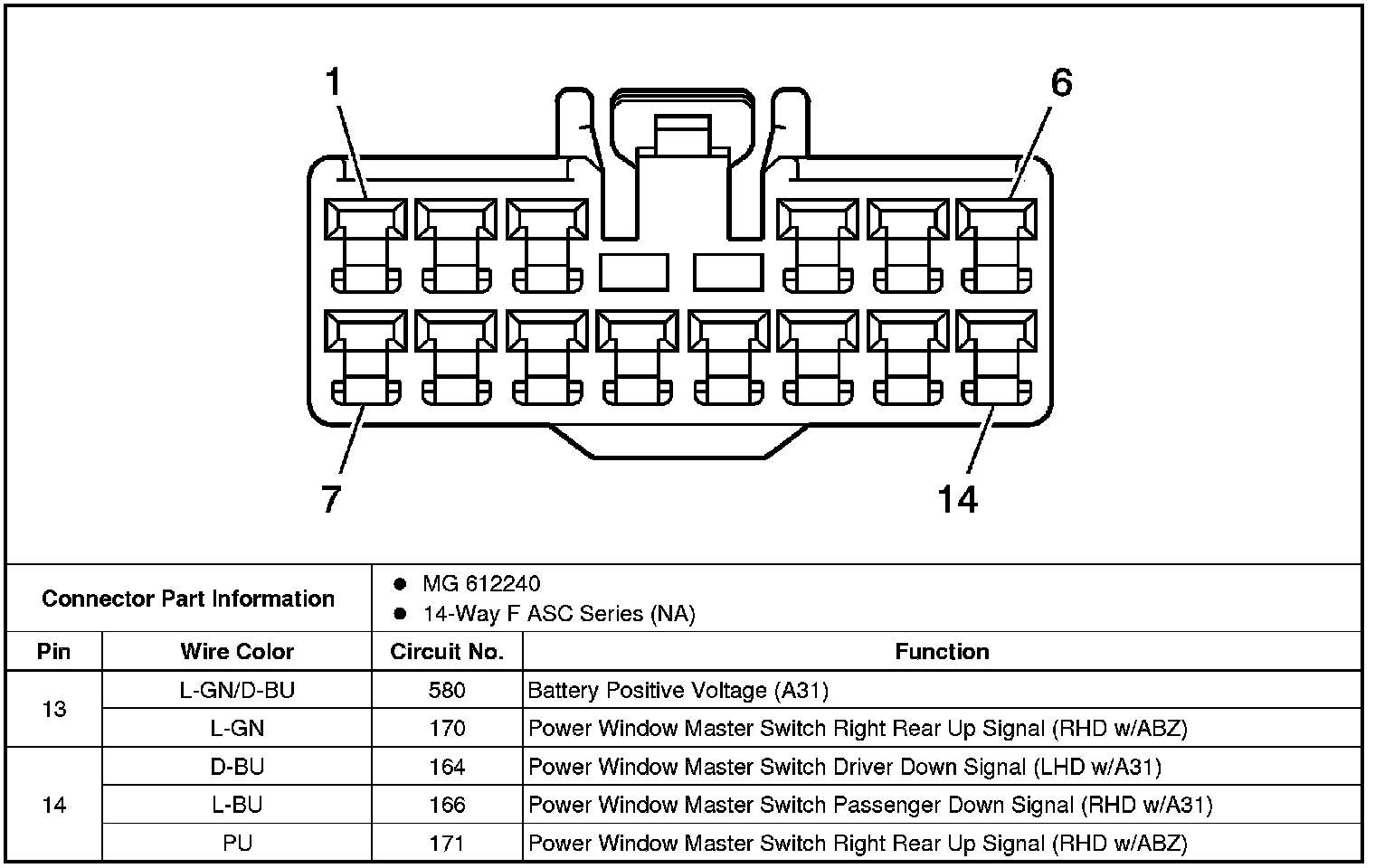

Window Systems Connector End Views (Notchback)
Window Systems Connector End Views (Notchback)
