Instrument Panel/Center Console Component Views

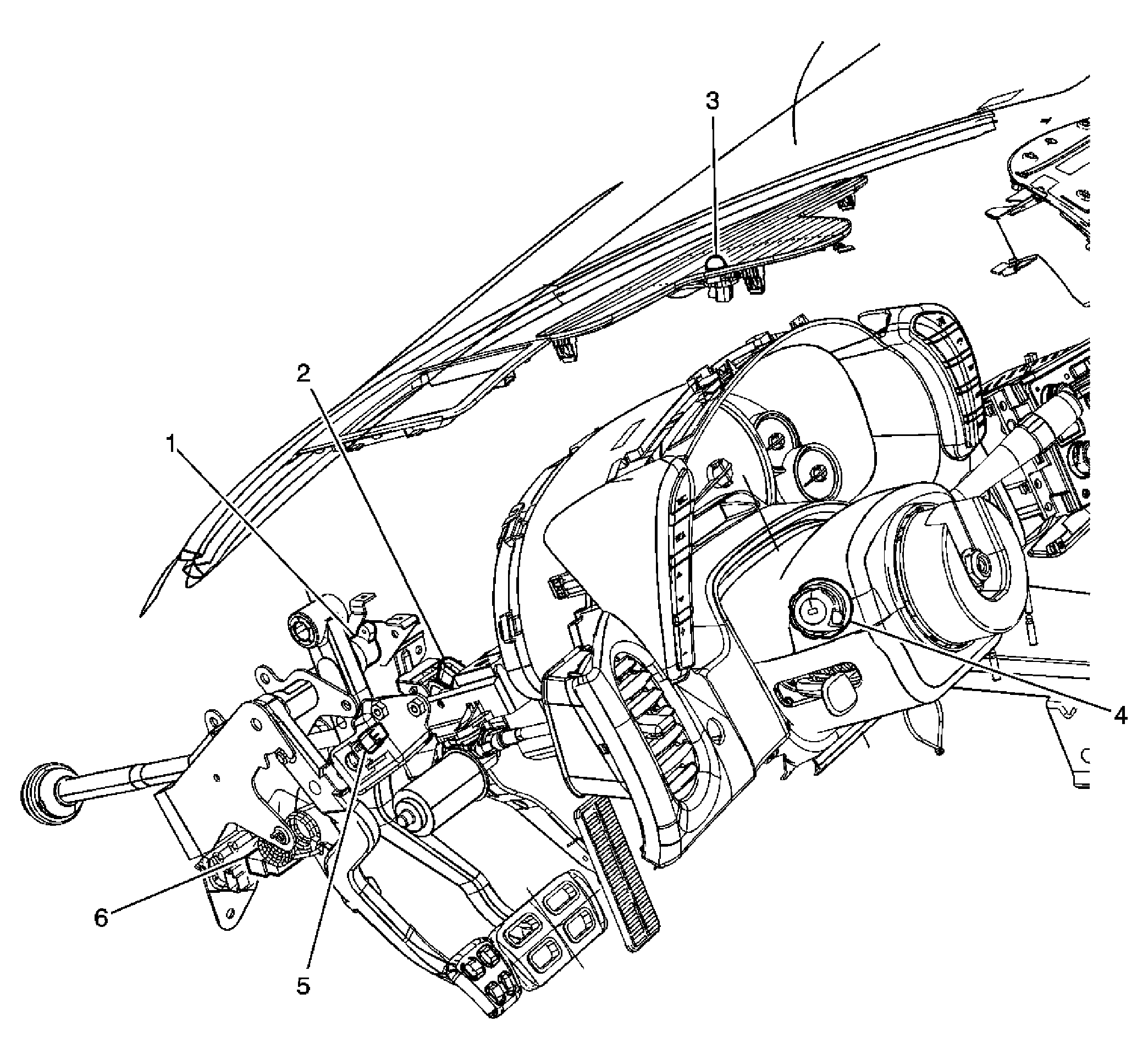

Fig 1: Left side of IP

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Brake Pedal Position Sensor
2	Accelerator Pedal Position (APP) Sensor
3	Sunload Sensor Assembly
4	Turn Signal/Multifunction Switch
5	Clutch Pedal Position (CPP) Switch (MM6/MZ6)
6	Clutch Start Switch (MM6/MZ6)

Fig 2: Under Steering Column

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Steering Column
2	Instrument Panel Structure
3	Data Link Connector (DLC)

Fig 3: Steering Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Steering Column Lock Control Module (ULS)
2	Telescope Switch (N37/NP7)
3	Steering Wheel Tilt Lever
4	Telescoping Drive Motor (N37/NP7)
5	Variable Effort Steering Actuator
6	Variable Effort Steering Actuator Connector
7	Power Steering Fluid Reservoir
8	Power Steering Pump

Fig 4: Left Side of Steering Wheel (T79)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Turn Signal/Multifunction Switch
2	Headlamp Switch
3	Fog Lamp Switch

Fig 5: Steering Column Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Turn Signal/Multifunction Switch
2	Windshield Wiper/Washer Switch

Fig 6: Steering Wheel

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Tap Shift Switch - Left
2	Tap Shift Switch - Right
3	Steering Wheel Controls Switch - Right (UK3)
4	Inflatable Restraint Steering Wheel Module

Fig 7: Center of Steering Wheel

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Horn Switch Contacts
2	Inflatable Restraint Steering Wheel Module Coil
3	Horn Switch Contacts

Fig 8: Passenger Area

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Cigar Lighter
2	Auxiliary Outlet
3	G301
4	G201
5	JX205
6	Ignition Mode Switch

Fig 9: I/P Console Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Head Up Display (HUD) (UV6)
2	Driver Information Center (DIC) Switch
3	Sunload Sensor Assembly
4	Hazard Switch
5	Radio
6	HVAC Control Module
7	Instrument Panel Compartment Lamp
8	Heated Seat Switch - Passenger (KA1)
9	Suspension Control Switch
10	Auxiliary Power Outlet
11	Traction Control Switch
12	Cigar Lighter
13	Heated Seat Switch - Driver (KA1)
14	Courtesy Lamp - Left
15	Ignition Mode Switch
16	Air Temperature Sensor - Inside
17	Inflatable Restraint Steering Wheel Module
18	Rear Compartment Lid Release Switch - Interior
19	Fuel Door Release Switch
20	Instrument Panel Dimmer Switch
21	Folding Top Control Switch (CM7)
22	Head Up Display (HUD) Switch (UV6)
23	Instrument Panel Cluster (IPC)

Fig 10: I/P and Overhead Lamps

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Vanity Mirror Lamp - Left
2	Inside Rearview Mirror w/Reading Lamps
3	Vanity Mirror Lamp - Right
4	Instrument Panel Compartment Lamp
5	Courtesy Lamp - Right
6	Courtesy Lamp - Left

Fig 11: Cellular Communication Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Vehicle Communication Interface Module (VCIM) (UE1)/Traffic Information Receiver (UZD/U3Z)
2	Cellular Microphone
3	Inside Rearview Mirror
4	Cellular and Navigational Antenna (UE1)
5	Radio

Fig 12: Behind the Center of the I/P Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Inflatable Restraint Sensing and Diagnostic Module (SDM)
2	Yaw and Lateral Accelerometer Sensor

Fig 13: Under Side Of The Dash Component View - Left

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Stop Lamp Switch X1
2	Stop Lamp Switch X3
3	X213
4	Bose Signal Processor
5	Accelerator Pedal Position (APP) Sensor
6	Accelerator Pedal
7	Brake Pedal
8	Steering Wheel Position Sensor
9	Clutch Pedal
10	Clutch Pedal Start Switch
11	Clutch Pedal Position Switch
12	Stop Lamp Switch
13	Stop Lamp Switch Connector X2

Fig 14: HVAC Module Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Air Temperature Actuator-Left
2	Air Temperature Sensor-Upper Right
3	Recirculation Actuator
4	Air Temperature Actuator-Right
5	Mode Actuator
6	Air Temperature Sensor-Lower Right
7	Air Temperature Sensor-Lower Left
8	HVAC Control Module
9	Air Temperature Sensor-Upper Left

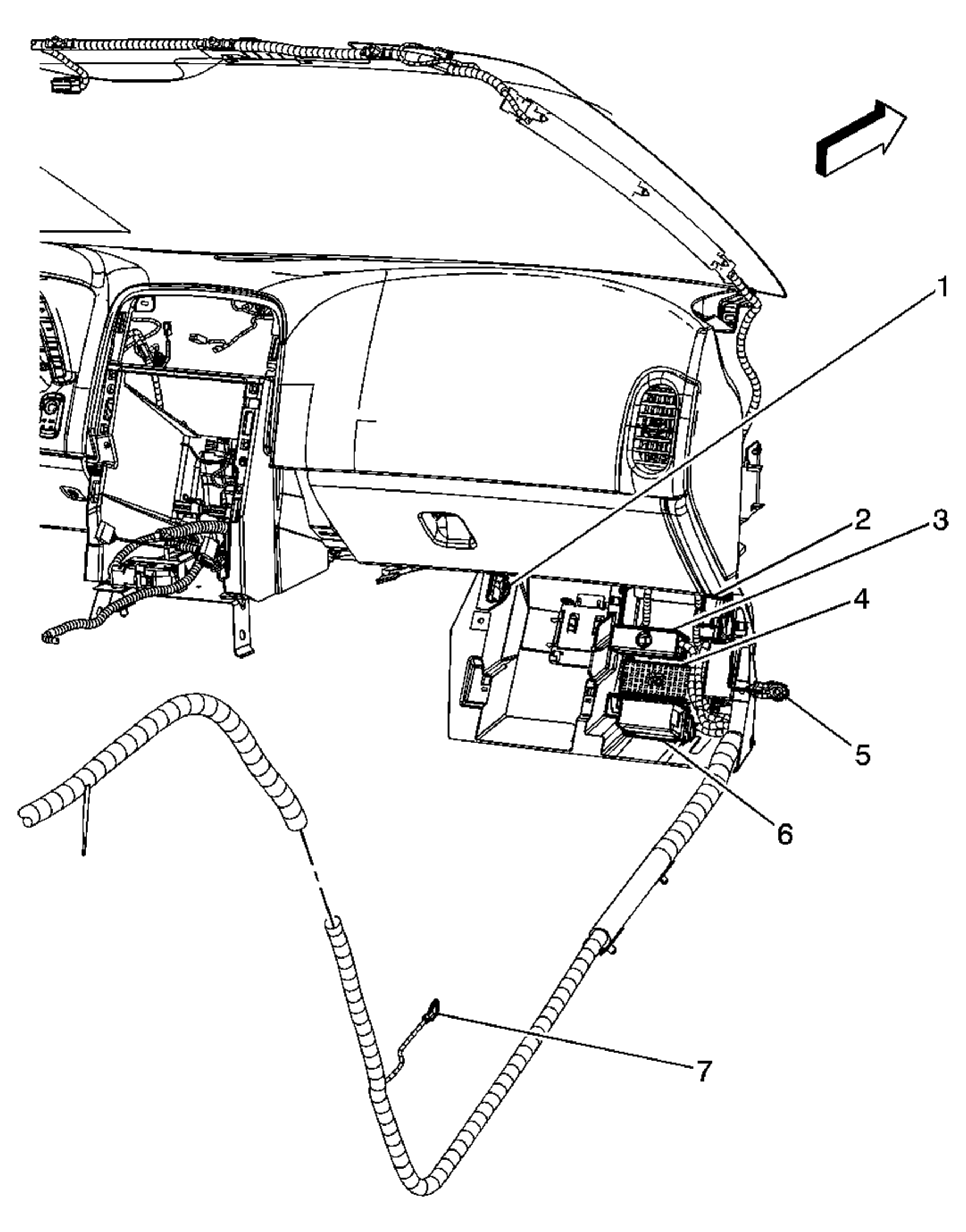

Fig 15: Right I/P Console

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Remote Control Door Lock Receiver (RCDLR)
2	Instrument Panel Compartment
3	Keyless Entry Antenna - Back Up

Fig 16: I/P Harness Routing-Engine Compartment and Lower Right Side of I/P

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Body Control Module (BCM) X2
2	Fuse Block - Instrument Panel
3	Relay Block - Instrument Panel
4	JX208
5	Body Control Module (BCM) X1

Fig 17: Right Side of I/P

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	JX208
2	Body Control Module (BCM) X2
3	Body Control Module (BCM) X3
4	Body Control Module (BCM) X4
5	G202
6	Relay Block - Instrument Panel
7	G302

Fig 18: Floor Shift Assembly

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Automatic Transmission Shift Lever
2	A/T Shift Lock Control Solenoid
