Front of Vehicle/Engine Compartment Component Views

Fig 1: Front of the Vehicle

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Marker Lamp - Right Front
2	Park/Turn Signal Lamp - Right Front (-T90)
3	Headlamp Ballast - Right
4	Headlamp High Beam - Right
5	Headlamp High Beam - Left
6	Headlamp Ballast - Left
7	Park/Turn Signal Lamp - Left Front (-T90)
8	Marker Lamp - Left Front
9	Fog Lamp - Left Front
10	Headlamp Assembly - Left
11	Headlamp Assembly - Right
12	Fog Lamp - Right Front

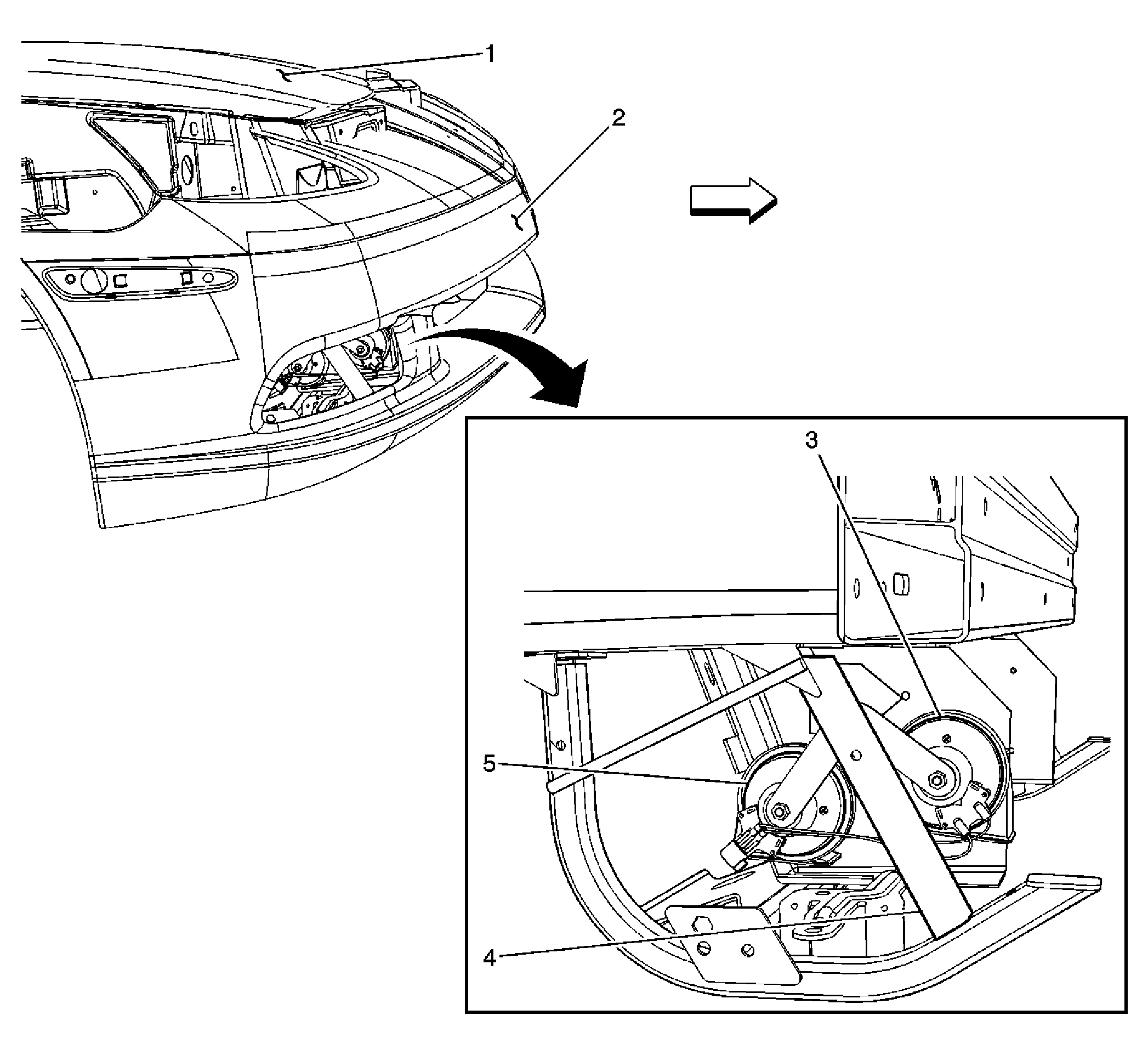

Fig 2: Right Front Side of Vehicle

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Hood
2	Front Fascia
3	Horn
4	Skid Bar Strut
5	Horn

Fig 3: Front of Vehicle

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Inflatable Restraint Front End Sensor - Right
2	Inflatable Restraint Front End Sensor - Left

Fig 4: Identifying Engine Compartment Area Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Underhood Lamp
2	Hood Ajar Switch (UA2)
3	Hood Release Handle

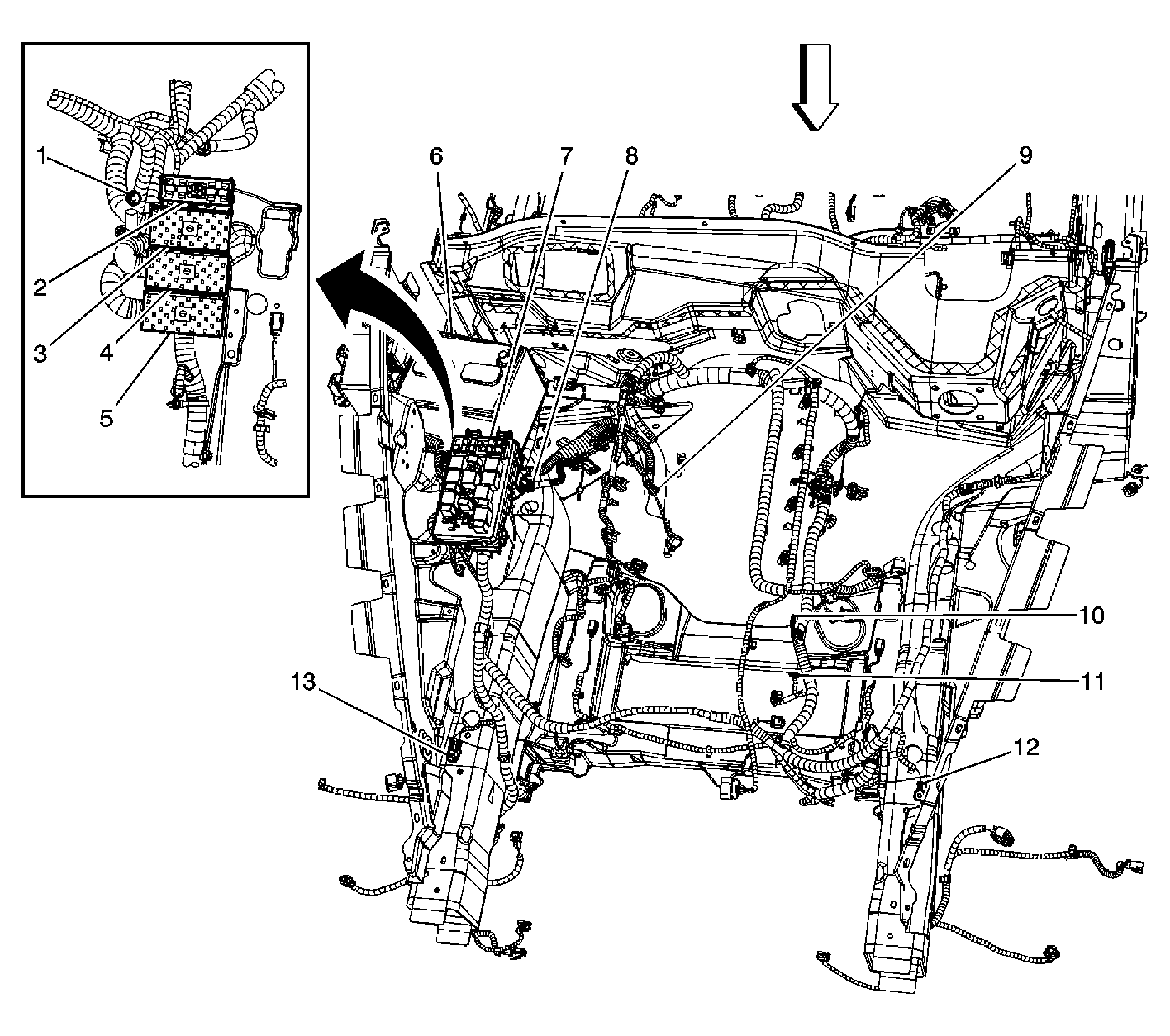

Fig 5: Engine Compartment

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Battery Positive Voltage
2	Fuse Block - Underhood X4
3	Fuse Block - Underhood X3
4	Fuse Block - Underhood X2
5	Fuse Block - Underhood X1
6	Battery
7	Fuse Block - Underhood
8	G104
9	G106 (Engine Block)
10	G107 (Engine Block)
11	G105 (Engine Block)
12	G101
13	G102

Fig 6: HVAC Components - Engine Compartment

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Surge Tank
2	Ambient Air Temperature Sensor
3	A/C Compressor, A/C Compressor Clutch
4	A/C Refrigerant Pressure Sensor

Fig 7: ABS Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Brake Pressure Modulator Valve (BPMV)
2	Brake Fluid Pressure Sensor
3	Brake Fluid Level Switch
4	Electronic Brake Control Module (EBCM)
5	Steering Angle Sensor
6	Brake Pedal Position Sensor
7	Yaw and Lateral Accelerometer Sensor
8	Park Brake Switch

Fig 8: Wiper Washer Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Headlamp Washer Nozzle-Left (CE4)
2	Windshield Wiper/Washer Switch
3	Windshield Wiper Motor
4	Windshield Washer Fluid Level Switch
5	Windshield Washer Fluid Pump
6	Headlamp Washer Fluid Pump (CE4)
7	Headlamp Washer Nozzle-Right (CE4)
