Passenger Compartment/Roof Component Views

Fig 1: Left Sunshade Component View
GM1258725Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Garage Door Opener
Fig 2: Front Top Center of Headliner
GM1653867Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Intrusion Sensor Defeat Switch (UA2)
2 Intrusion Sensor (UA2)
3 Windshield

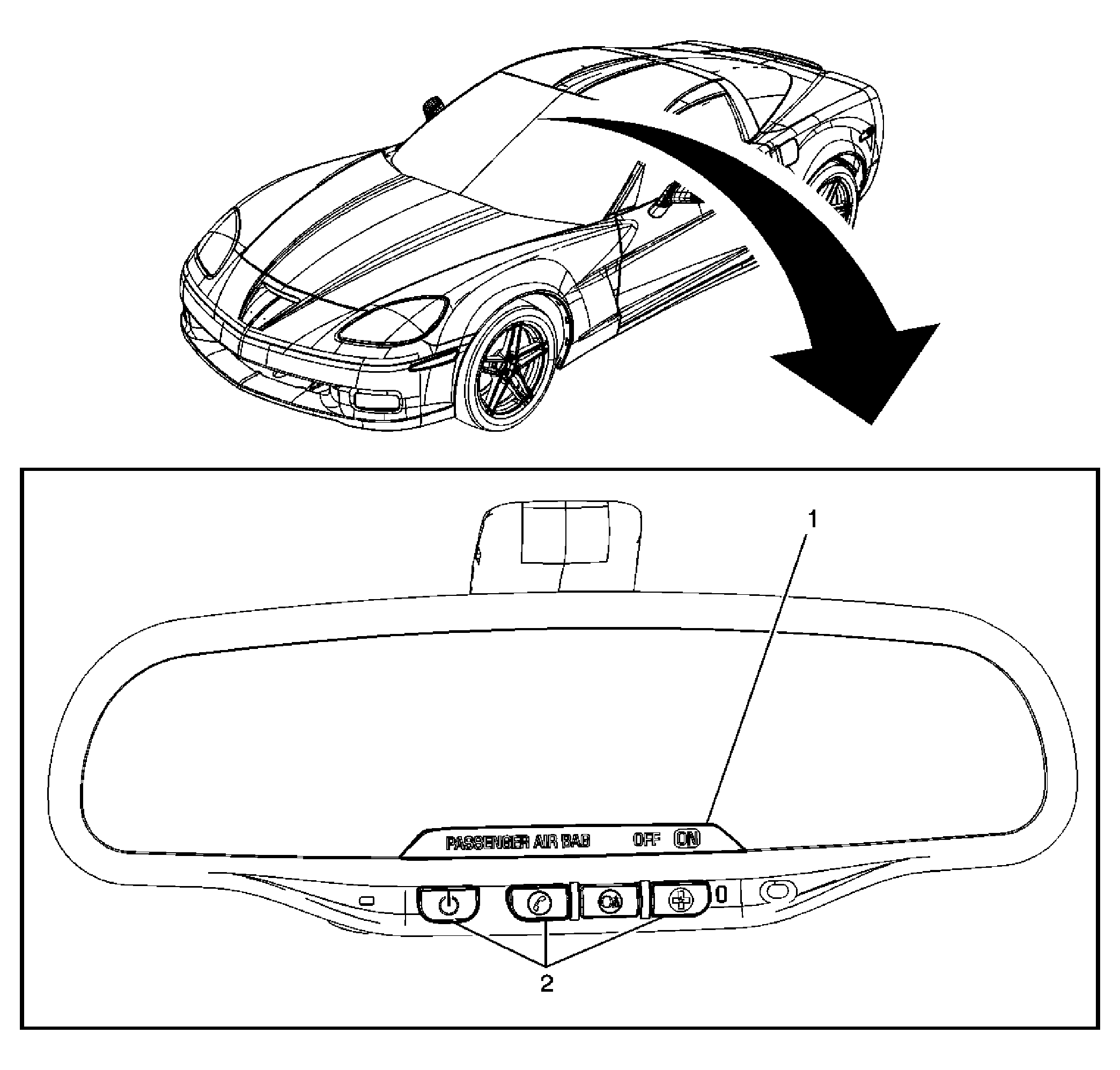

Fig 3: Inside Rearview Mirror
GM1662838Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Inflatable Restraint Front Passenger Presence System (PPS) ON/OFF Indicator
2 Onstar Button Assembly
Fig 4: Entertainment Components
GM1491971Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Speaker - Center
2 Radio
3 Cellular Microphone
4 Speaker - Right Front Door Subwoofer
5 Speaker - Right Front Door Midrange
6 Audio Amplifier
7 Speaker - Right Rear Midrange
8 Vehicle Communication Interface Module (VCIM) (Coupe +UE1)
9 Digital Radio Receiver (Coupe +U2K)
10 Speaker - Left Rear Midrange
11 Speaker - Left Front Door Subwoofer
12 Speaker - Left Front Door Midrange
13 Mobil Telephone Microphone
Fig 5: Antennas and Antenna Modules
GM1698017Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Cellular and Navigational Antenna
2 Vehicle Communication Interface Module (VCIM) (UE1)
3 Radio Antenna Module - Case Ground
4 Radio Antenna Module - Right (Convertible)
5 Radio Antenna Module - Case Ground
6 Vehicle Communication Interface Module (VCIM)
7 Radio Antenna Module - Left (Coupe)
8 Loop Antenna (Convertible)
9 Loop Antenna (Coupe)
10 Loop Antenna Ground
11 Radio Antenna Module - Right (Coupe)
12 Theft Deterrent Alarm Siren (UA2)
13 Digital Radio Receiver (Coupe)
14 Digital Radio Receiver (Convertible)
15 Global Positioning System (GPS) Antenna (U3U)
Fig 6: Driver Seat Components
GM1653854Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Inflatable Restraint Seat Position Switch - Left
2 Seat Rear Vertical Motor - Driver
3 Seat Rear Vertical Position Sensor (AAB)
4 Seat Front Vertical Motor - Driver
5 Seat Front Vertical Position Sensor (AAB)
6 Memory Seat Module - Driver (AAB)
7 Heated Seat Module - Driver (KA1)
8 Seat Horizontal Motor Position Sensor (AAB)
9 Seat Horizontal Motor - Driver
10 Inflatable Restraint Side Impact Module - Left (AJ7)
11 Lumbar Switch - Driver
12 Seat Adjuster Switch - Driver
13 Seat Belt Pretensioner - Left and Seat Belt Switch - Driver
Fig 7: Passenger Seat Components
GM1653853Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Seat Front Vertical Motor - Passenger (AG2)
2 Seat Rear Vertical Motor - Passenger (AG2)
3 Inflatable Restraint Seat Position Switch - Right
4 Inflatable Restraint Front Passenger Presence System (PPS) Module
5 Heated Seat Module - Passenger (KA1)
6 Seat Horizontal Motor - Passenger (AG2)
7 Seat Belt Pretensioner - Right and Seat Belt Switch - Passenger
8 Heated Seat Cushion - Passenger
9 Seat Adjuster Switch - Front Passenger
10 Lumbar Switch - Passenger
11 Inflatable Restraint Side Impact Module - Right (AJ7)
Fig 8: Folding Top Components - 1 of 2
GM1580375Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Folding Top Cover Latch Actuator
2 Folding Top Cover Pulldown Actuator (CM7)
Fig 9: Rear Window (Coupe/Z06)
GM1653866Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Rear Window Defogger Grid
2 Rear Closure
3 Latch Assembly
Fig 10: Rear Window (Convertible)
GM1653865Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Power Folding Top
2 Rear Window Defogger Grid
Fig 11: Folding Top Components - 2 of 2
GM1491966Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Folding Top Cover Open Switch (CM7)
2 Folding Top Cover
3 Folding Top Pump and Valve Assembly
4 Luggage Barrier Switch (CM7)
Fig 12: Right Side of Power Folding Top
GM1653876Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Top Closed Switch (CM7)
2 5 Bow Lowered Switch (CM7)
3 5 Bow Raised Switch (CM7)
4 Top Open Switch (CM7)
Fig 13: Folding Top Harness Routing Components
GM1479628Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Hydraulic Cylinder
2 Header Latched Switch
3 Hydraulic Cylinder
4 Folding Top Cover Latch Actuator
5 Hydraulic Cylinder
6 Pump and Valve Assembly (CM7)
7 Luggage Barrier Switch Connector (CM7)
8 Actuator
9 Folding Top Cover Pulldown Actuator (CM7)
10 Folding Top Control Module (FTM) (CM7)
11 Actuator
12 Folding Top Cover Open Switch (CM7)
13 Actuator
