Communication Interface Module Battery Replacement

WARNING: This page is about a different car, the 2010 Chevrolet HHR. However, it is still accessible from the selected car via links, so may be relevant.

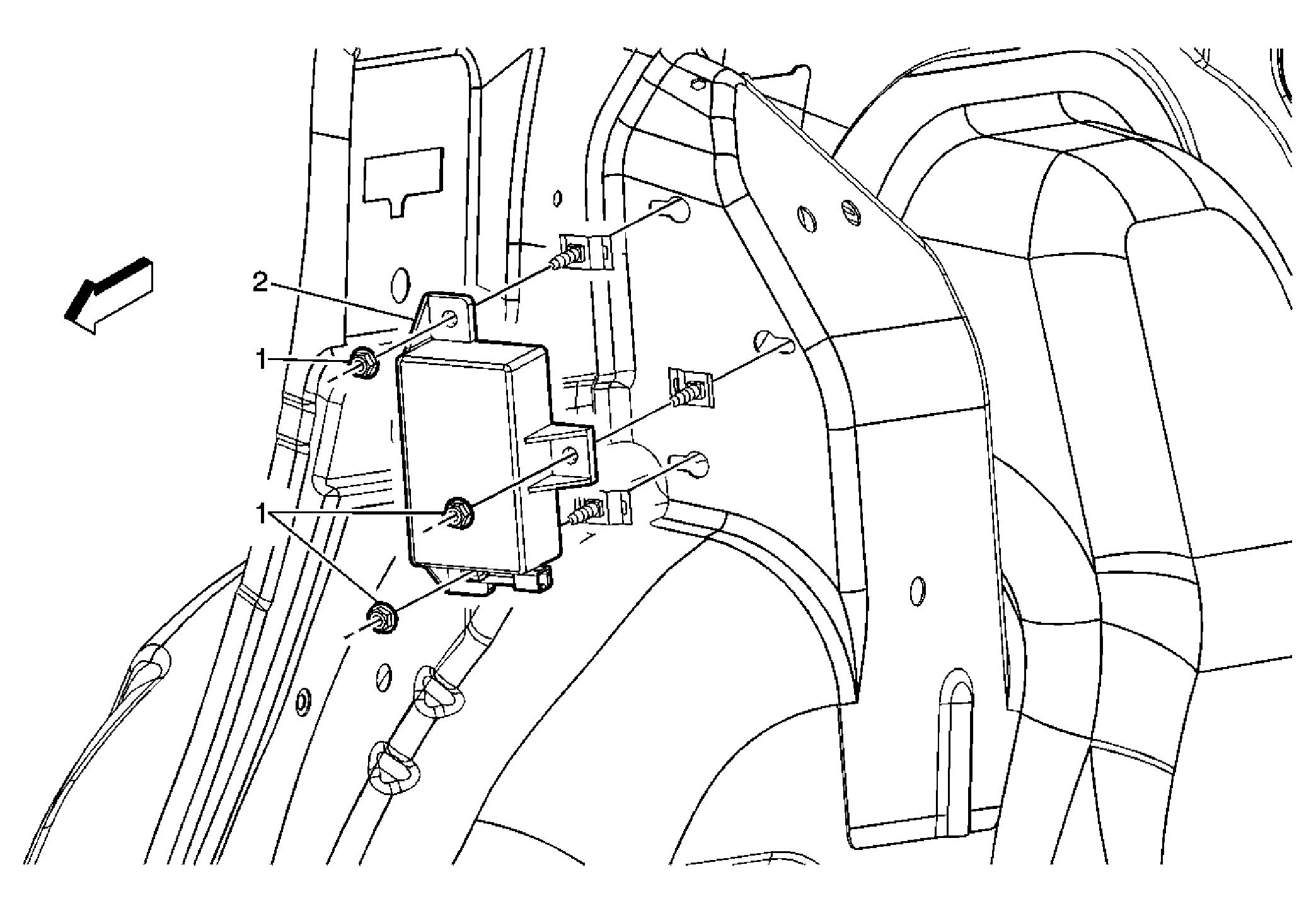

Fig 1: Communication Interface Module Battery

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Remove the rear seat. Refer to Rear Seat Replacement . Remove the right rear quarter lower trim panel. Refer to Quarter Lower Rear Trim Panel Replacement .
1	Communication Interface Module Battery Nut (Qty: 3) CAUTION: Refer to Fastener Caution . Tighten: 10 N.m (89 lb in)
2	Communication Interface Module Battery Tip: Disconnect the electrical connector.

Callout

Component Name

Preliminary Procedures

Remove the rear seat. Refer to Rear Seat Replacement .
Remove the right rear quarter lower trim panel. Refer to Quarter Lower Rear Trim Panel Replacement .

Communication Interface Module Battery Nut (Qty: 3)

CAUTION: Refer to Fastener Caution .

Tighten: 10 N.m (89 lb in)

Communication Interface Module Battery
Tip: Disconnect the electrical connector.
