Communication Interface Module Replacement

WARNING: This page is about a different car, the 2010 Chevrolet HHR. However, it is still accessible from the selected car via links, so may be relevant.

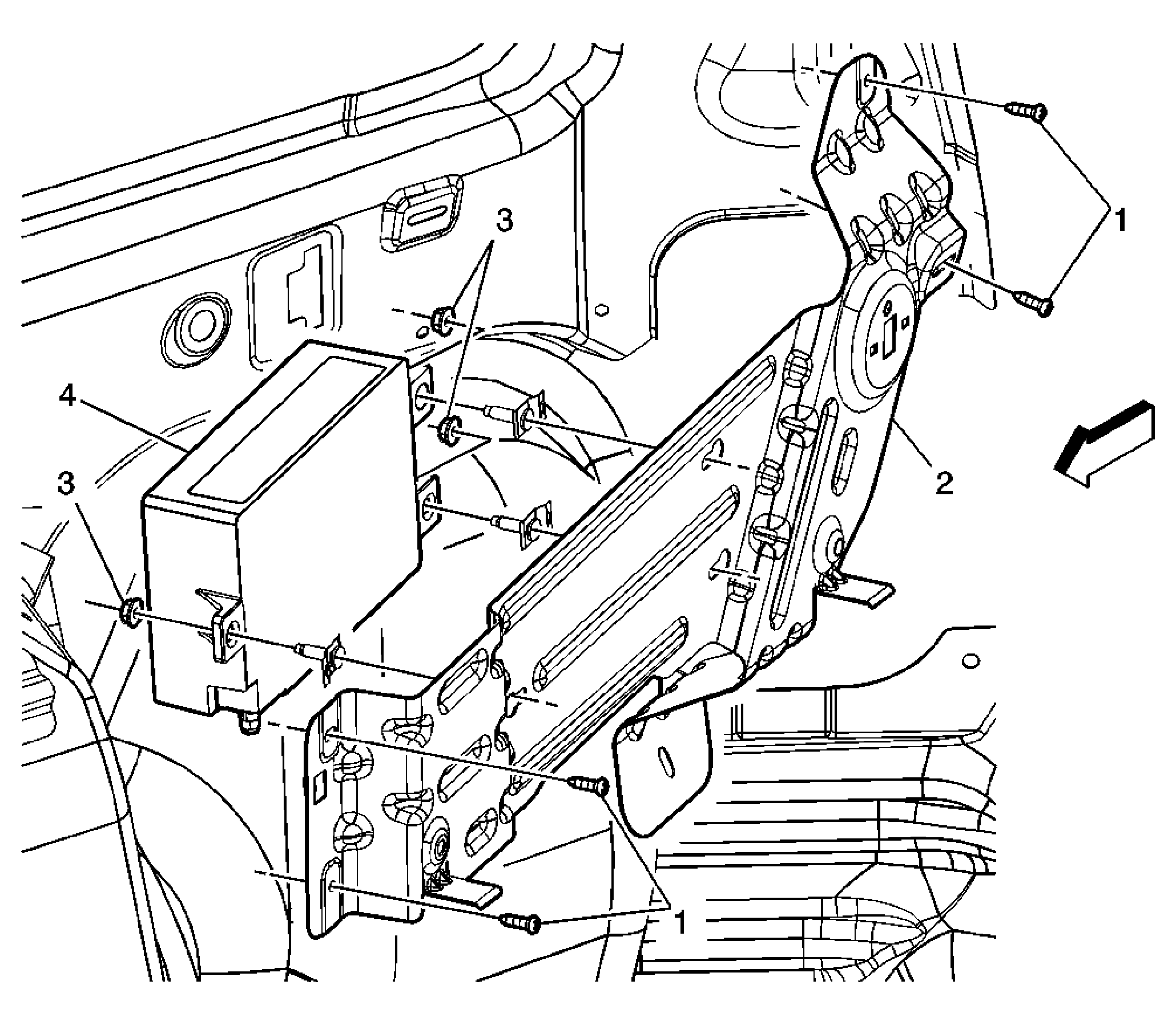

Fig 1: Communication Interface Module

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Remove the rear seat. Refer to Rear Seat Replacement . Remove the right rear quarter lower trim panel. Refer to Quarter Lower Rear Trim Panel Replacement .
1	Quarter Inner Trim Panel Bracket Screw (Qty: 4) CAUTION: Refer to Fastener Caution . Tighten: 10 N.m (89 lb in)
2	Quarter Inner Trim Panel Bracket
3	Communication Interface Module Nut (Qty: 3) Tighten: 10 N.m (89 lb in)
4	Communication Interface Module Procedure Disconnect the electrical connector. Reprogram the communication interface module after installation. Refer to Control Module References . When replacing the communication interface module be sure to transfer Bluetooth Antenna, if equipped.
