Digital Radio Receiver Replacement

WARNING: This page is about a different car, the 2010 Chevrolet HHR. However, it is still accessible from the selected car via links, so may be relevant.

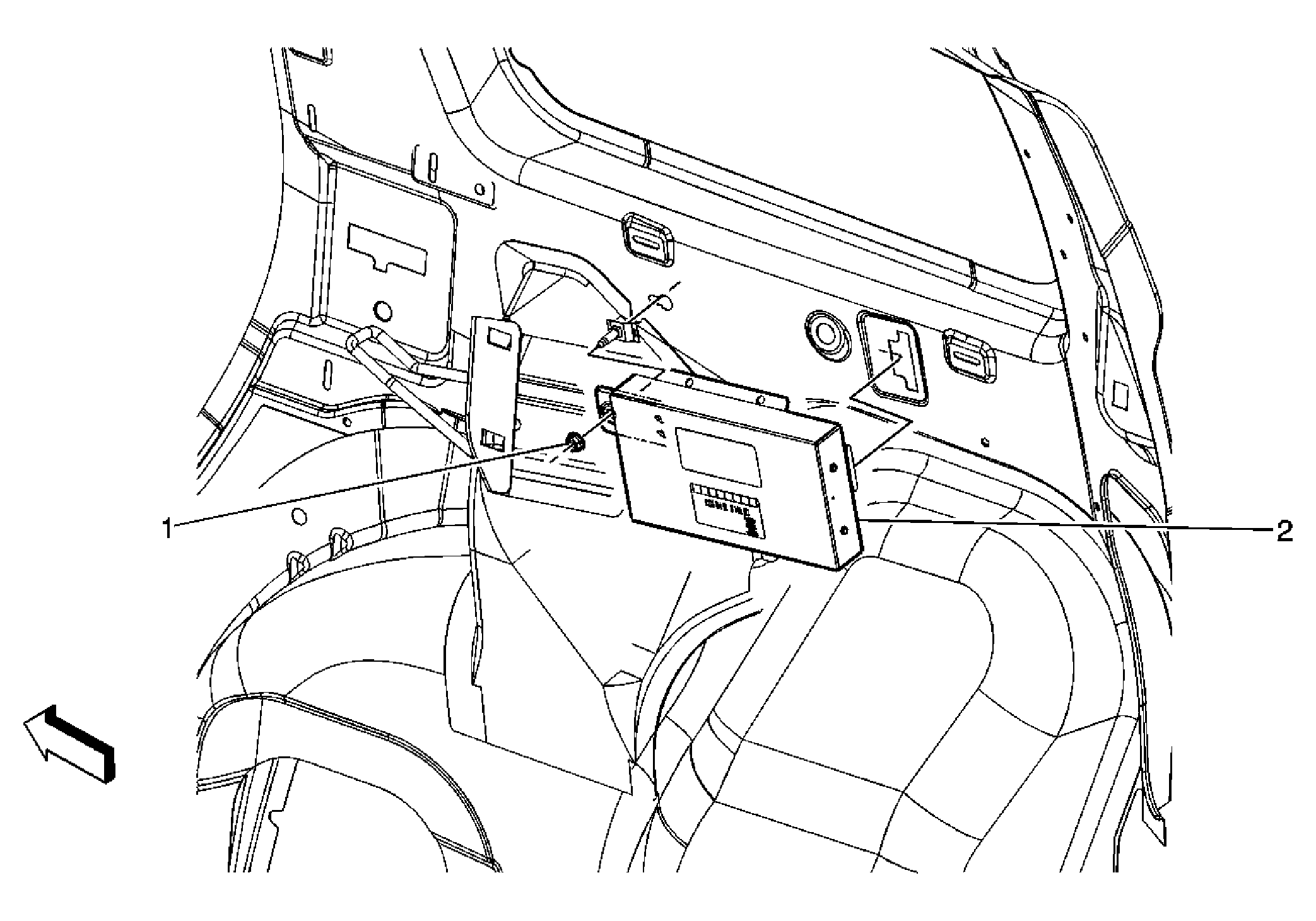

Fig 1: Digital Radio Receiver

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures: Remove the right rear quarter upper trim panel. Refer to Quarter Upper Trim Panel Replacement (With AXS) or Quarter Upper Trim Panel Replacement (Except AXS) .
1	Digital Radio Receiver Nut CAUTION: Refer to Fastener Caution . Tighten: 10 N.m (89 lb in)
2	Digital Radio Receiver Assembly Procedure Disconnect the antenna cable. Disconnect the electrical connector. Reprogram the digital radio receiver after installation. Refer to Control Module References .

Callout

Component Name

Preliminary Procedures:
Remove the right rear quarter upper trim panel. Refer to Quarter Upper Trim Panel Replacement (With AXS) or Quarter Upper Trim Panel Replacement (Except AXS) .

Digital Radio Receiver Nut

CAUTION: Refer to Fastener Caution .

Tighten: 10 N.m (89 lb in)

Digital Radio Receiver Assembly

Procedure

Disconnect the antenna cable.
Disconnect the electrical connector.
Reprogram the digital radio receiver after installation. Refer to Control Module References .
