Video System Schematics

WARNING: This page is about a different car, the 2010 Chevrolet HHR. However, it is still accessible from the selected car via links, so may be relevant.

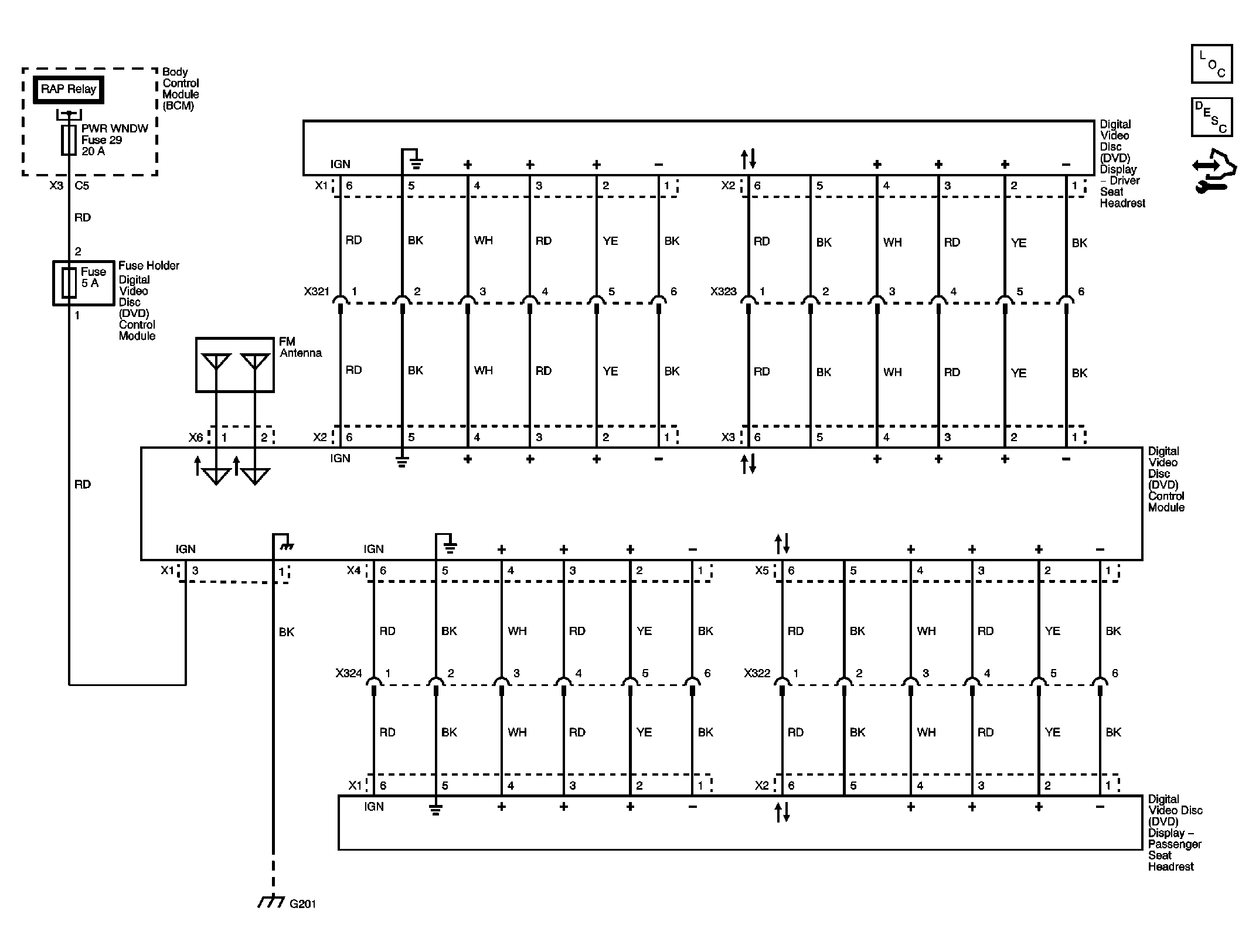

Fig 1: Headrest DVD (SPO Accessory)
GM2286025Courtesy of GENERAL MOTORS CORP.
