Radio/Navigation System Schematics

WARNING: This page is about a different car, the 2008 Saturn Sky and 2008 Pontiac Solstice. However, it is still accessible from the selected car via links, so may be relevant.

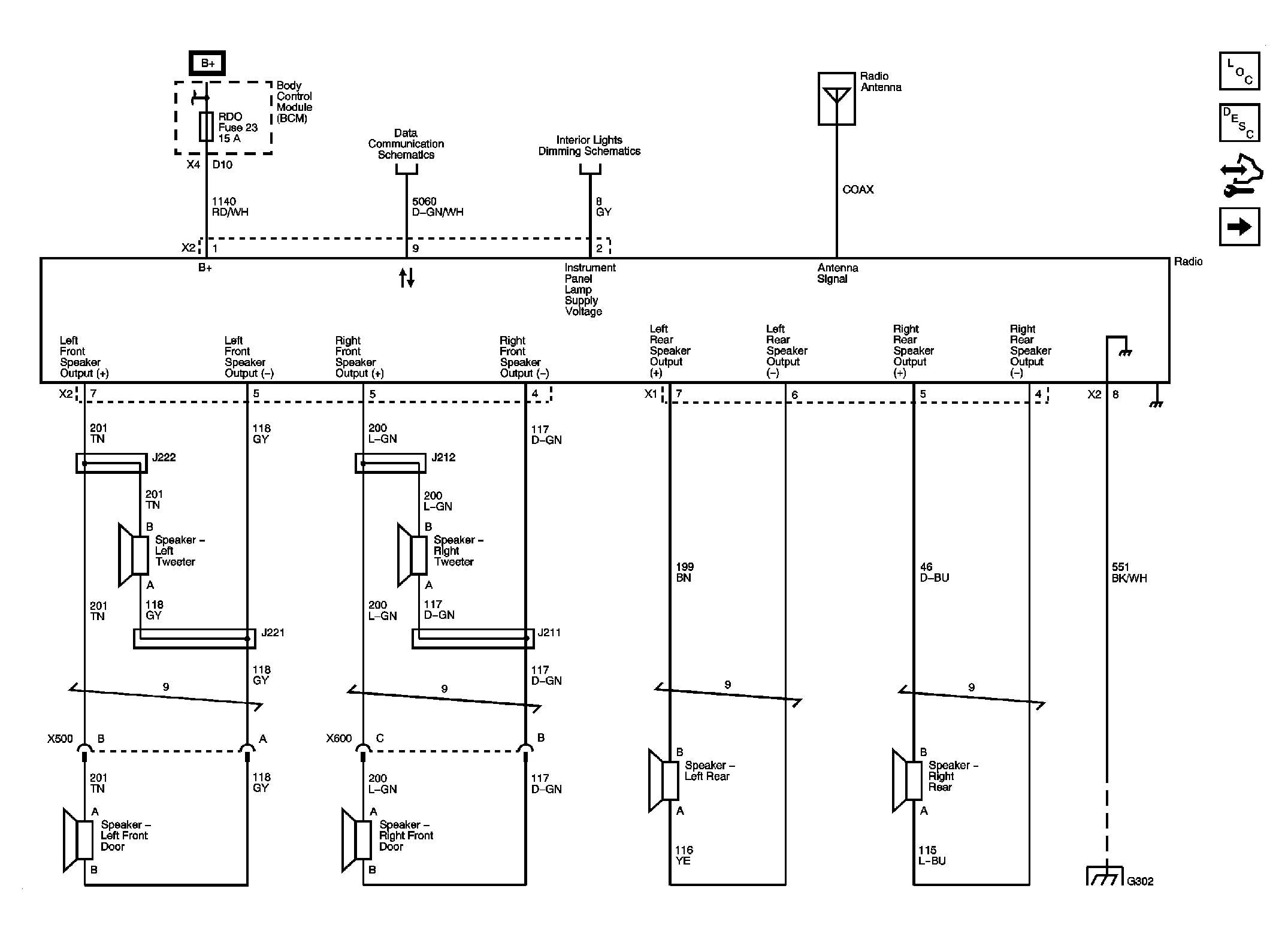

Fig 1: Radio Schematic - UW5

Courtesy of GENERAL MOTORS CORP.

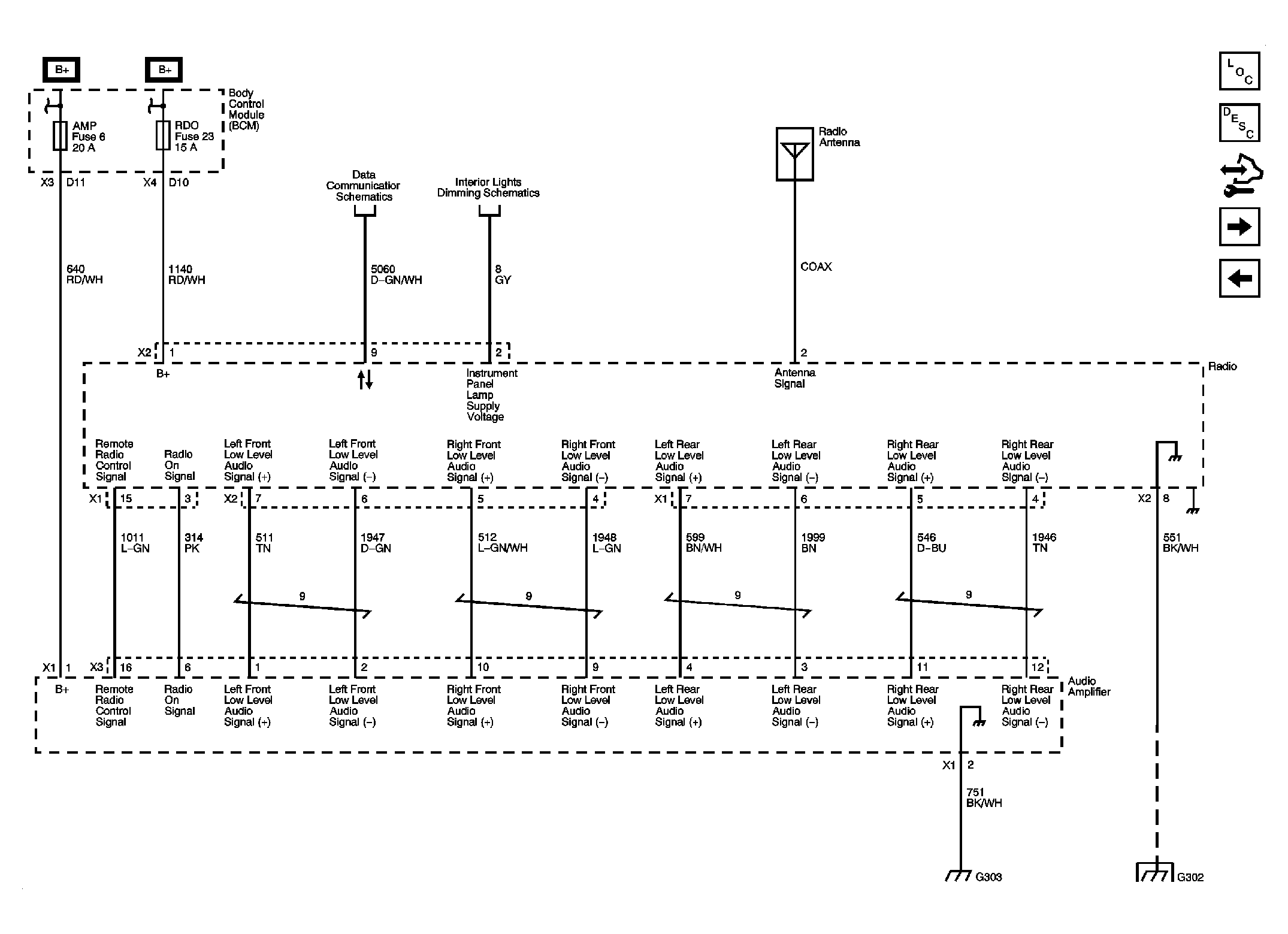

Fig 2: Radio Power, Ground and Communication Schematic - UQ3

Courtesy of GENERAL MOTORS CORP.

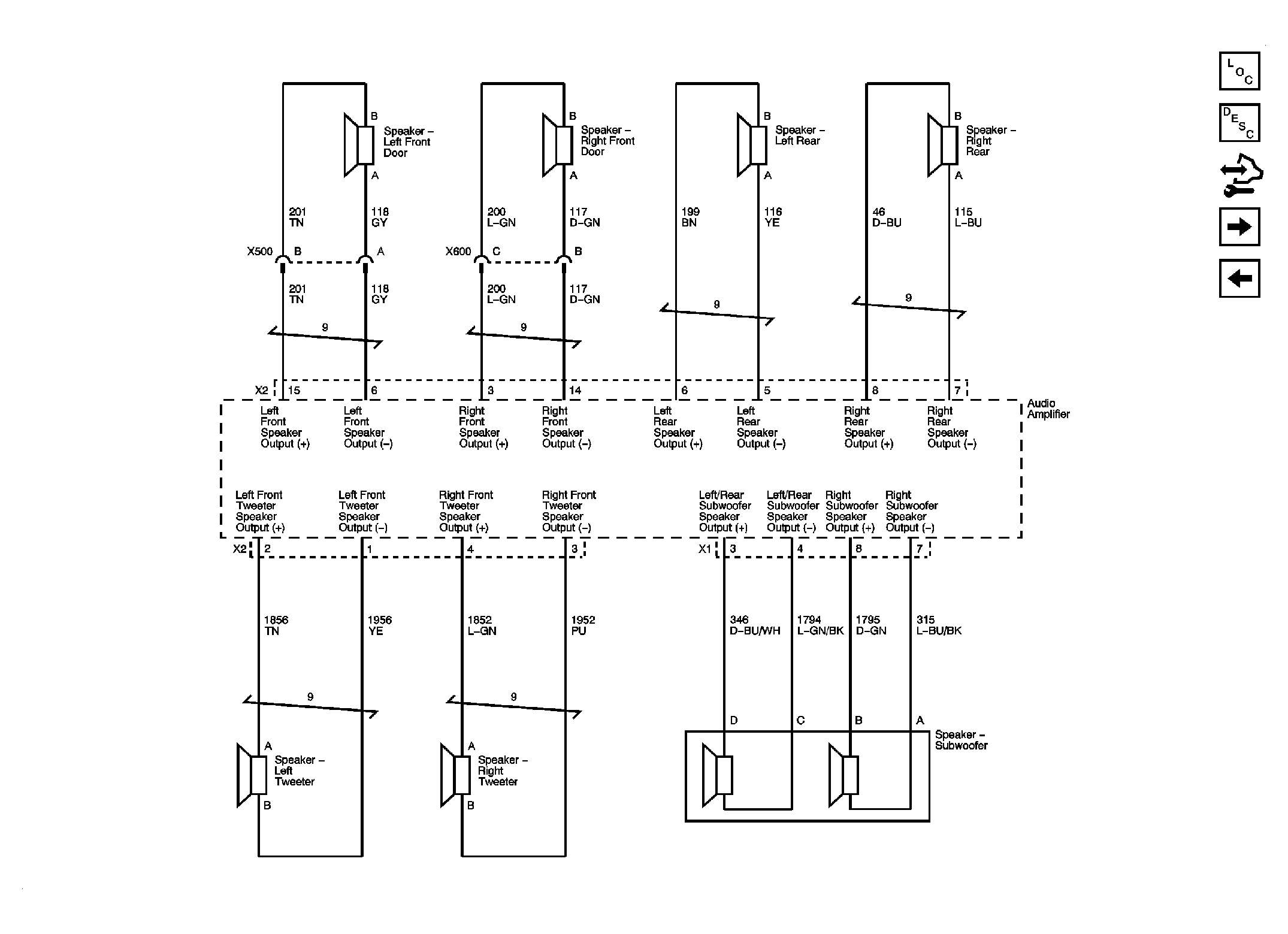

Fig 3: Amplifier Power, Speakers Schematic - UQ3

Courtesy of GENERAL MOTORS CORP.

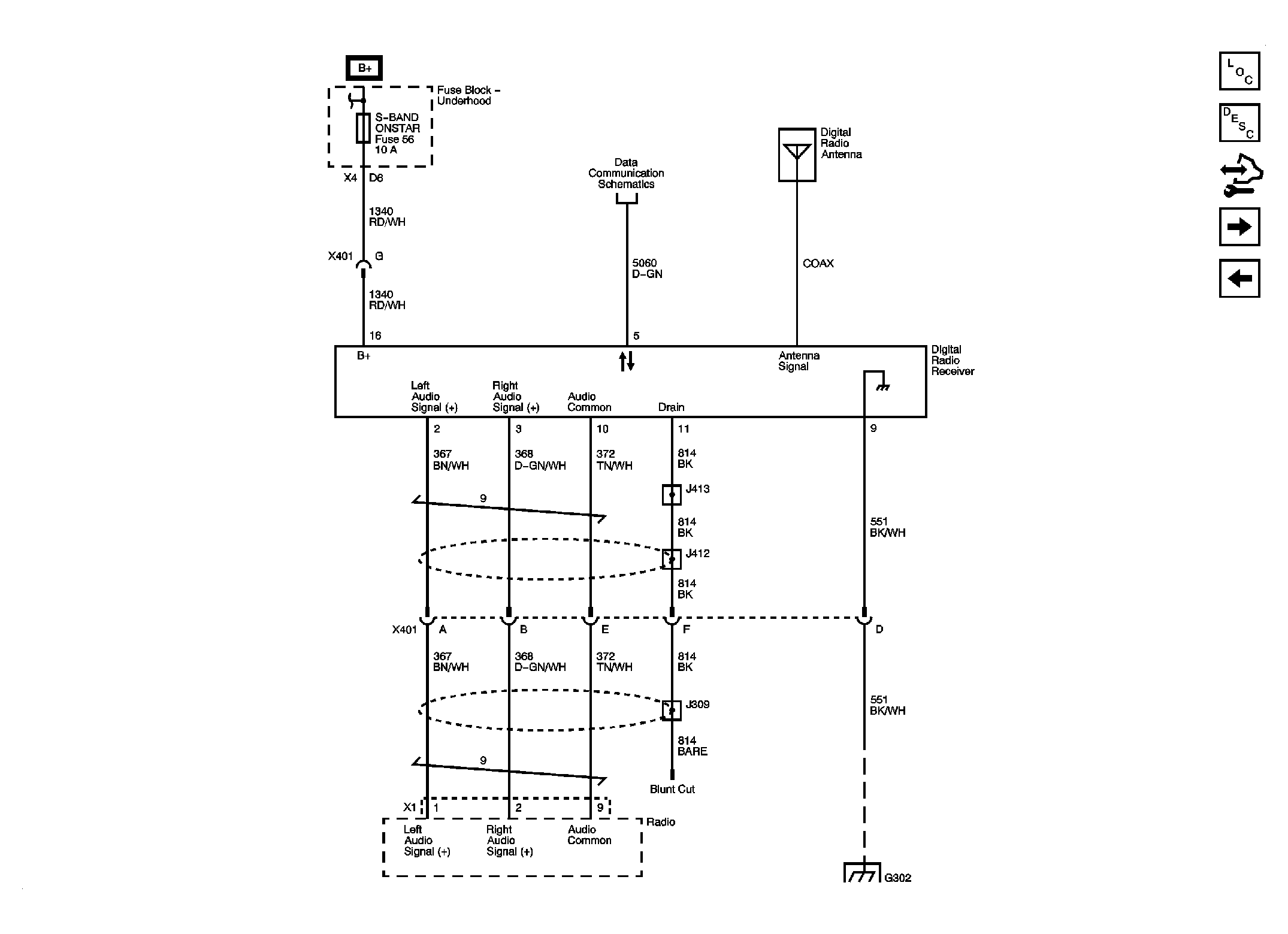

Fig 4: Digital Radio Receiver Schematic - U2K

Courtesy of GENERAL MOTORS CORP.

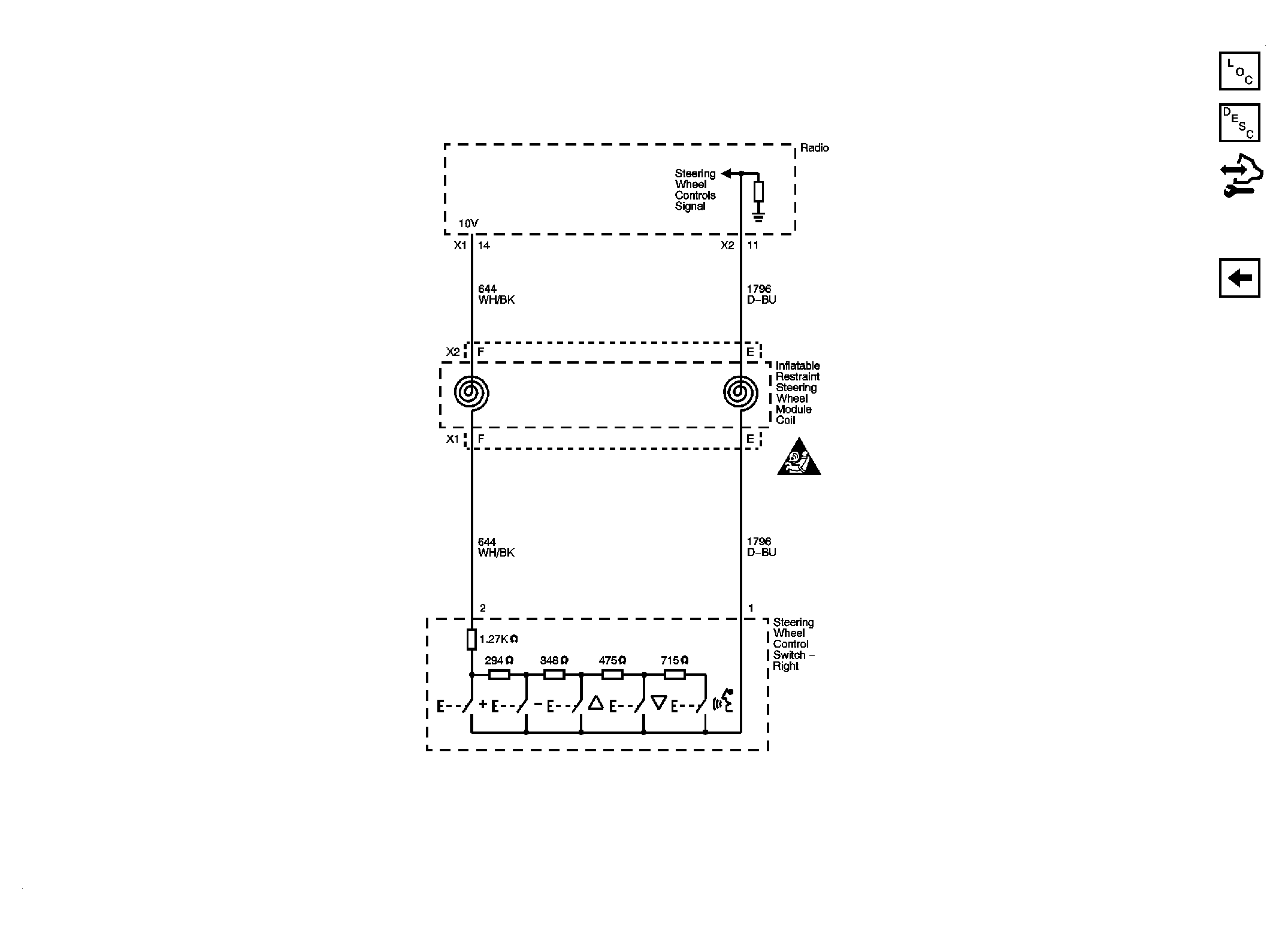

Fig 5: Redundant Radio Controls Schematic

Courtesy of GENERAL MOTORS CORP.
