Instrument Panel/Center Console Component Views

Fig 1: I/P Harness

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Instrument Panel
2	Ambient Light Sensor
3	J201
4	J200
5	J206
6	G203
7	G201
8	X201
9	Data Link Connector (DLC)
10	JX205
11	Body Control Module (BCM) X2
12	Body Control Module (BCM) X4
13	X210
14	X206
15	X200 (KA1, UE1, U2K)
16	J204
17	J205 (UE1)

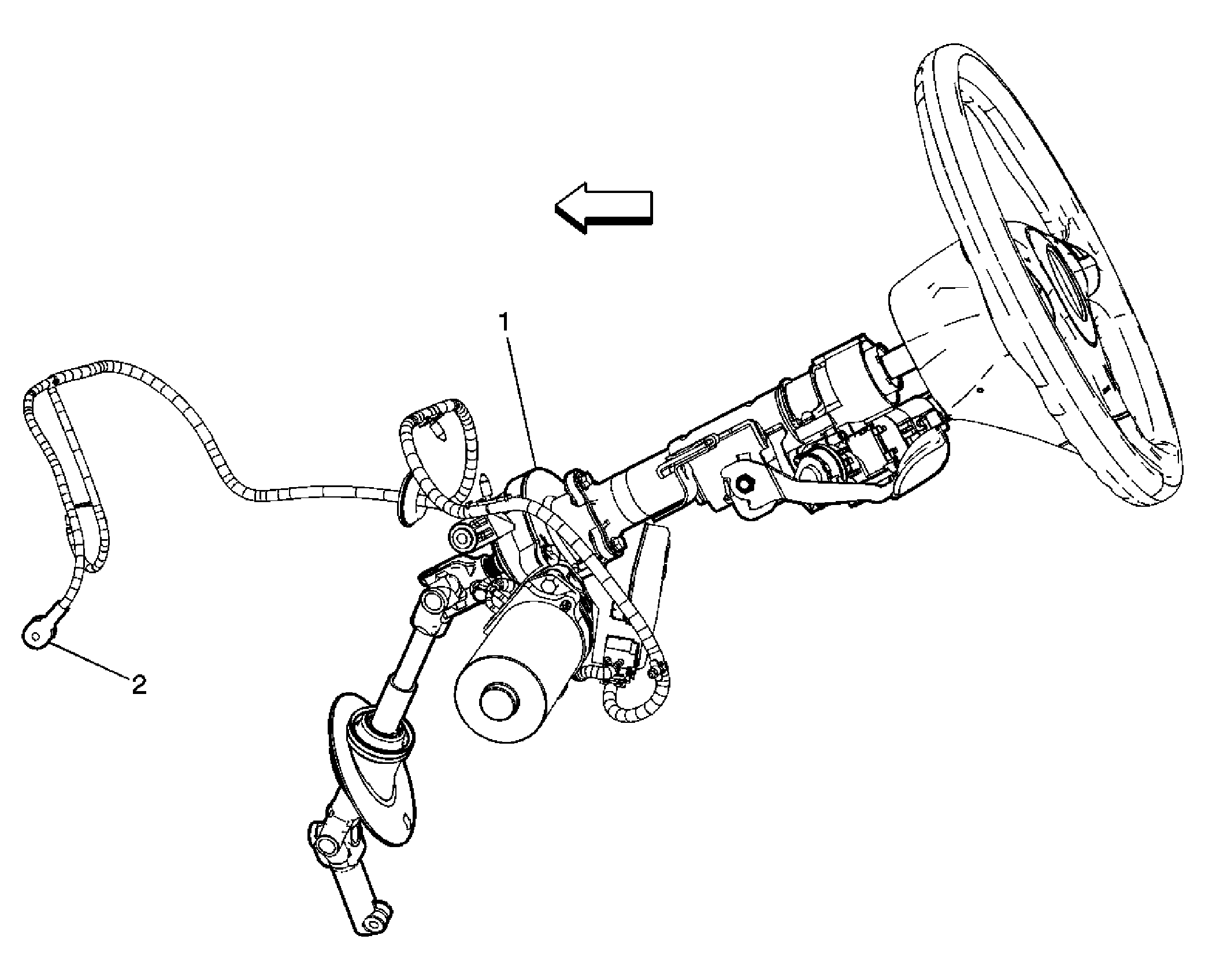

Fig 2: Power Steering Harness

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Steering Column
2	G109

Fig 3: Steering Column Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Turn Signal / Multifunction Switch
2	Inflatable Restraint Steering Wheel Module Coil
3	Windshield Wiper / Washer Switch
4	Ignition Lock Control Actuator (MN5)
5	Power Steering Control Module (PSCM)
6	Electronic Power Steering (EPS) Motor
7	Ignition Switch

Fig 4: Steering Wheel Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Steering Wheel Controls - Left
2	Steering Wheel Controls - Right
3	Horn Switch

Fig 5: G201 And G203

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	I/P Trim Panel
2	Instrument Panel Cluster (IPC)
3	G201
4	G203

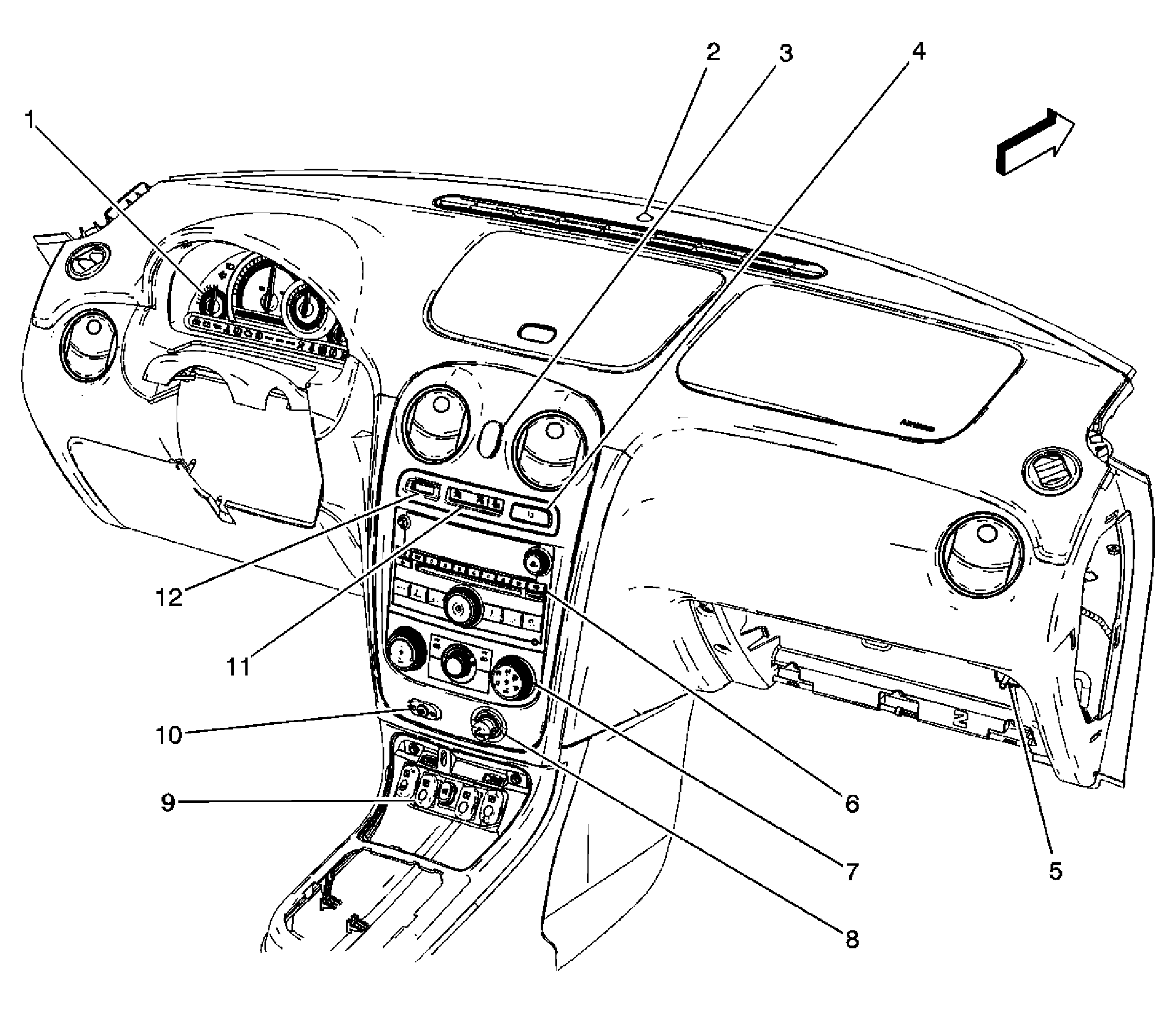

Fig 6: I/P Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Instrument Panel Cluster (IPC)
2	Ambient Light Sensor
3	Hazard Switch
4	Fog Lamp Switch (T37)
5	I/P Compartment
6	Radio
7	HVAC Control Assembly
8	Cigar Lighter (DT4)/Power Outlet (- DT4)
9	Master Window Switch
10	Rear Wiper/Washer Switch
11	Inflatable Restraint Passenger Air Bag ON/OFF Indicator
12	Instrument Panel (I/P) Dimmer Switch

Fig 7: Theft Deterrent Control Module

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Theft Deterrent Control Module

Fig 8: Interior HVAC Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	HVAC Box Assembly
2	Blower Motor Resistor Assembly
3	Blower Motor
4	Recirculation Actuator
5	Air Temperature Actuator
6	Mode Actuator

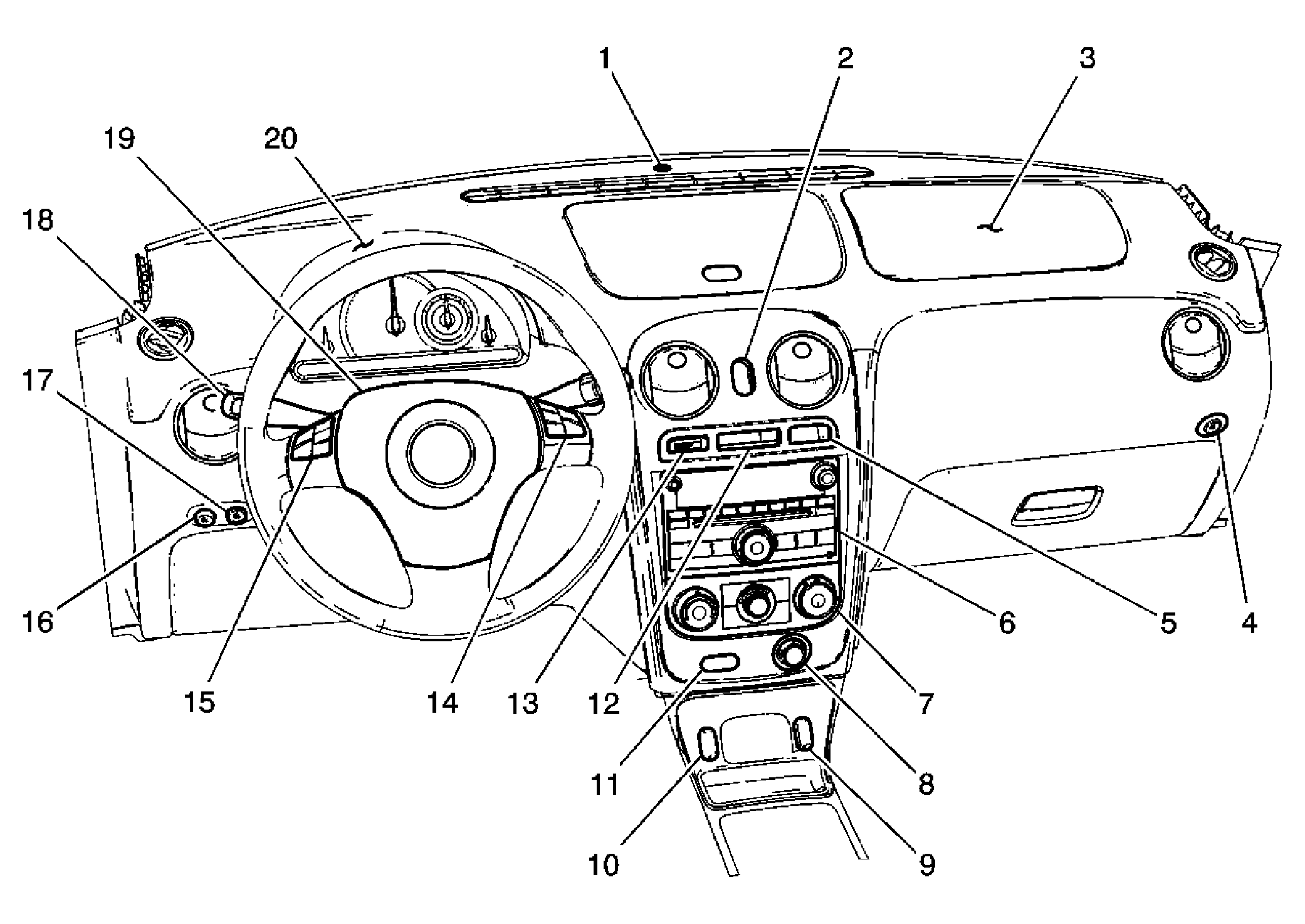

Fig 9: Instrument Panel (I/P) Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Ambient Light Sensor
2	Hazard Switch
3	Inflatable Restraint I/P Module
4	Passenger Rear Access Panel Switch - Right Rear Panel (Panel Van)
5	Fog Lamp Switch (T37)
6	Radio/Navigation Unit
7	HVAC Control Assembly
8	Cigar Lighter (DT4)/Power Outlet (- DT4)
9	Window Switch - Front Passenger/Window Switch - Right Rear
10	Master Window Switch
11	Rear Wiper/Washer Switch
12	Inflatable Restraint Passenger Airbag ON/OFF Indicator
13	I/P Dimmer Switch
14	Steering Wheel Controls - Right (UK3)
15	Steering Wheel Controls - Left
16	Driver Rear Access Panel Switch - Left Rear Panel (Panel Van)
17	Driver Rear Access Panel Switch - Right Rear Panel (Panel Van)
18	Turn Signal/Multifunction Switch
19	Inflatable Restraint Steering Wheel Module
20	Instrument Panel Cluster (IPC)
