Instrument Panel/Center Console Component Views

Fig 1: Identifying Upper Center I/P Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Remote Control Door Lock Receiver (RCDLR)
2	Instrument Panel Carrier

Fig 2: Exploded View Of Lower Left Side of I/P

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	G301
2	X223 - Taped to Harness (9C1/9C3)
3	X250
4	X203
5	Terminator Resistor-Taped to Harness (- UE1)

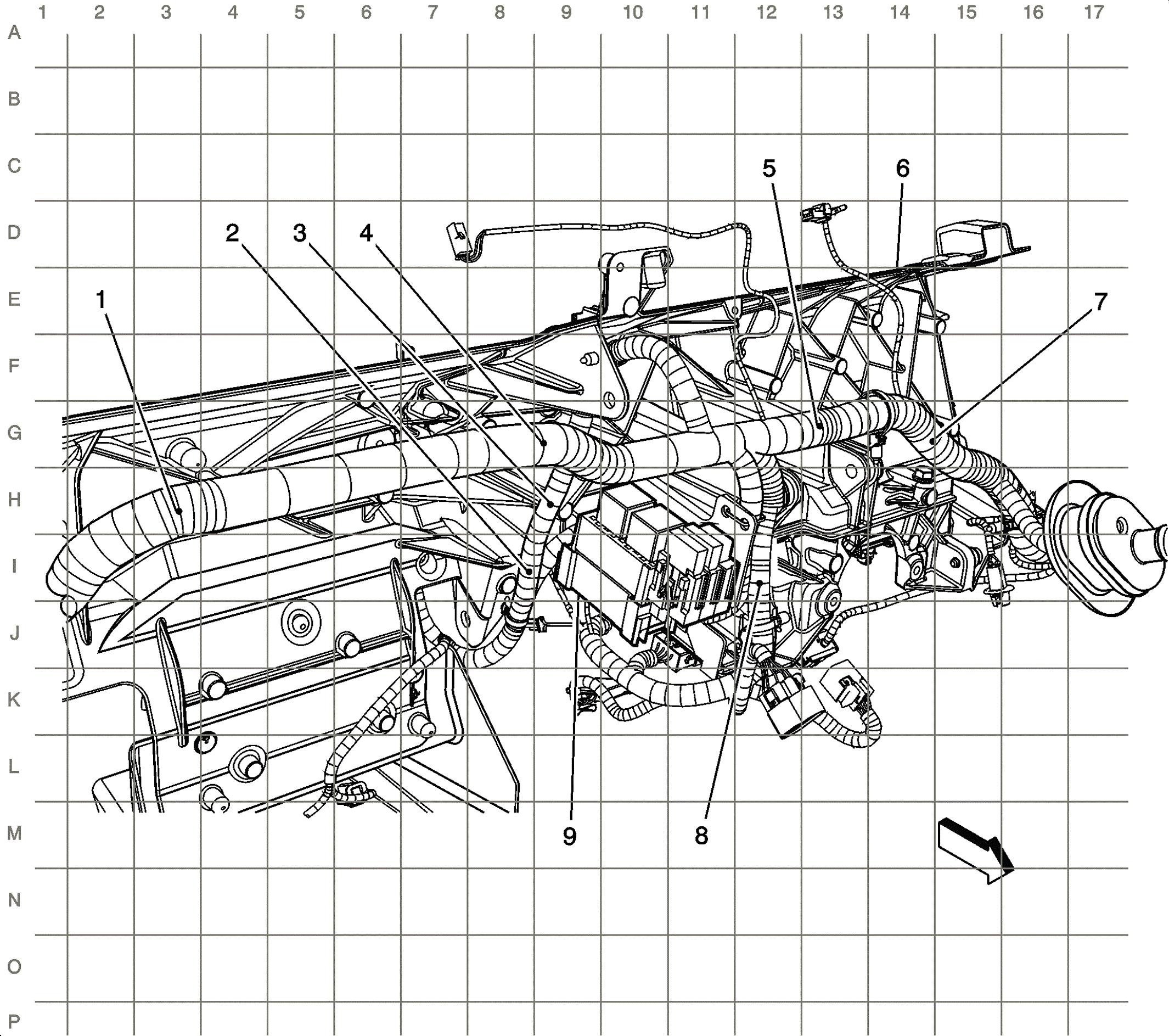

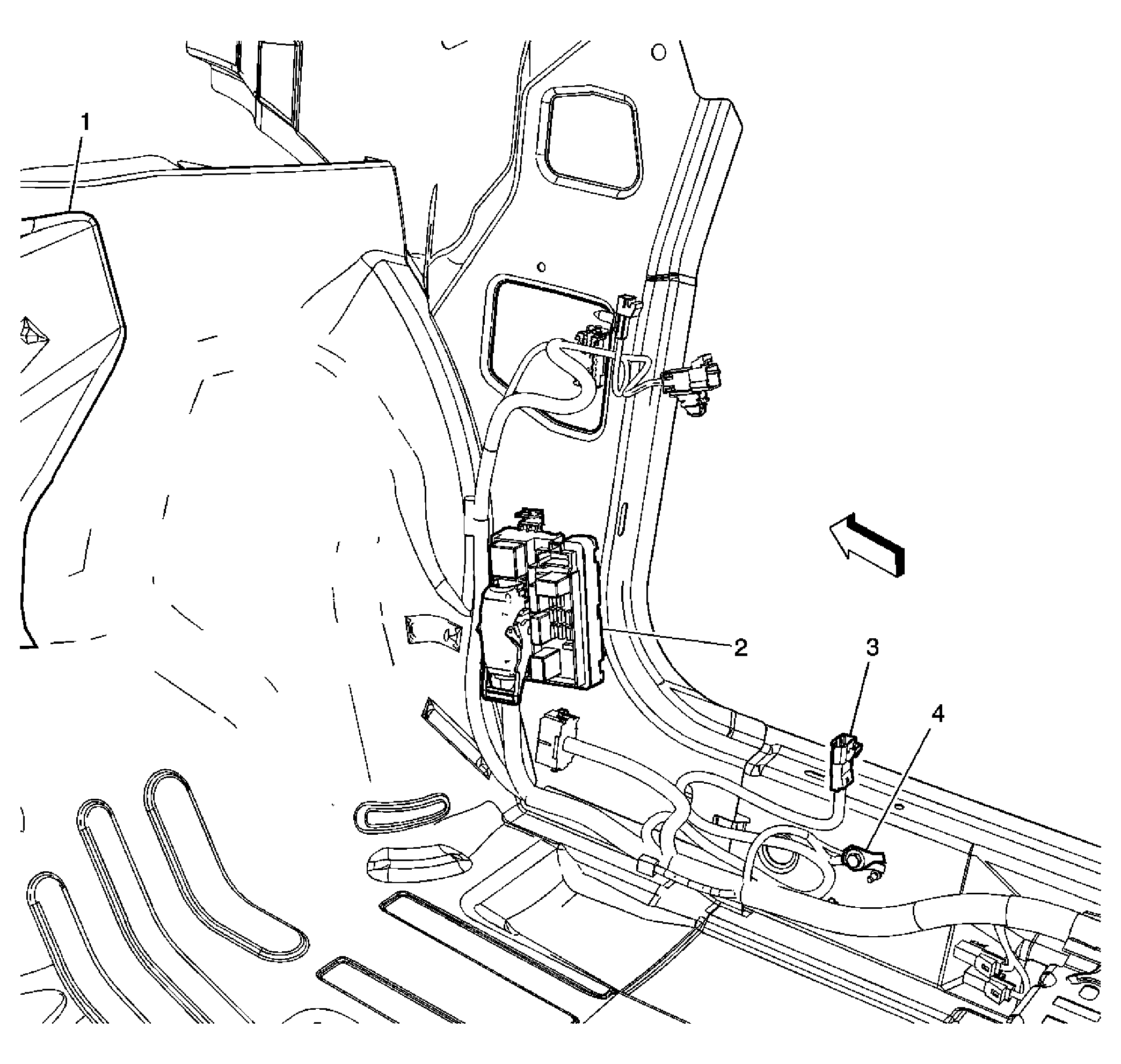

Fig 3: View Of I/P Harness - Rear Of I/P Carrier

Courtesy of GENERAL MOTORS CORP.

Fig 4: Identifying I/P Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Headlamp Switch
2	Instrument Panel Cluster (IPC)
3	Inflatable Restraint Steering Wheel Module Coil
4	Driver Information Center (DIC) Switch
5	Ambient Light Sensor
6	Inflatable Restraint Passenger Air Bag On/Off Indicator (- 9C1/9C3)
7	Radio
8	Inflatable Restraint Instrument Panel Module
9	Instrument Panel Trim Panel
10	Heated Seat Switch - Passenger (KA1)
11	HVAC Control Module
12	Heated Seat Switch - Driver (KA1)
13	Turn Signal/Multifunction Switch

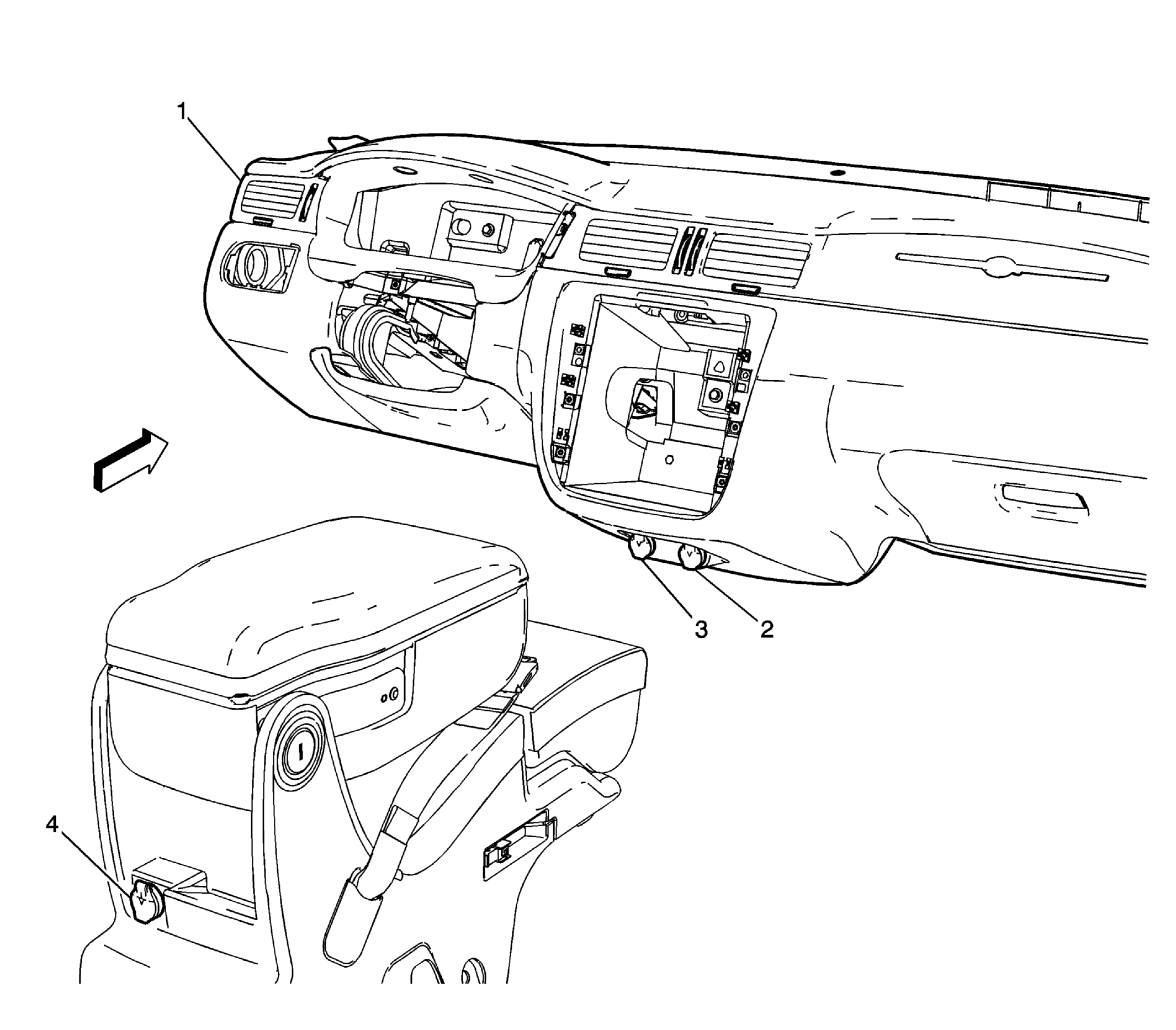

Fig 5: Locating Auxiliary Power Outlets Sedan (w/Column Shifter)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Instrument Panel
2	Auxiliary Power Outlet - Right
3	Auxiliary Power Outlet - Left
4	Auxiliary Power Outlet - Seat

Fig 6: Locating Auxiliary Power Outlets (w/Floor Shifter)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Auxiliary Power Outlet - Front
2	Auxiliary Power Outlet - Front 2
3	Auxiliary Power Outlet - Rear

Fig 7: Identifying Center Console - Floor Shifter Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Floor Shifter
2	A/T Shift Lock Control Solenoid

Fig 8: Identifying Pedal Assemblies

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Park Brake Switch
2	Dash Panel
3	Brake Pedal Position Sensor
4	Accelerator Pedal Position (APP) Sensor

Fig 9: View Of Components In Left Front Footwell

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Instrument Panel Courtesy Lamp - Left

Fig 10: View Of Components In Right Front Footwell

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Instrument Panel Courtesy Lamp - Right

Fig 11: View Of Steering Wheel Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Steering Wheel
2	Steering Wheel Controls - Right
3	Steering Wheel Control - Left
4	Horn Switch Contacts

Fig 12: Identifying Steering Column & Supplemental Inflatable Restraints

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Instrument Panel Carrier
2	Inflatable Restraint Steering Wheel Module
3	Steering Column
4	Body Control Module (BCM)

Fig 13: Left Front of the Passenger Compartment, in the Steering Column Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Ignition Switch
2	Theft Deterrent Exciter Module
3	Ignition Lock Cylinder Control Actuator

Fig 14: View Of Lower Steering Column Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	A/T Shift Lock Control Solenoid
2	Steering Column

Fig 15: View Of Interior HVAC Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	HVAC Module
2	Mode Actuator
3	Air Temperature Actuator (C67), Air Temperature Actuator - Right (CJ3)
4	Recirculation Actuator
5	Blower Motor
6	Blower Motor Control Processor
7	Air Temperature Actuator - Left (CJ3)

Fig 16: View Of Right Front Of Passenger Compartment

Courtesy of GENERAL MOTORS CORP.
