Antilock Brake System Schematics

Fig 1: Power, Ground, and Brake Pressure Modulator Valves Schematic

Courtesy of GENERAL MOTORS CORP.

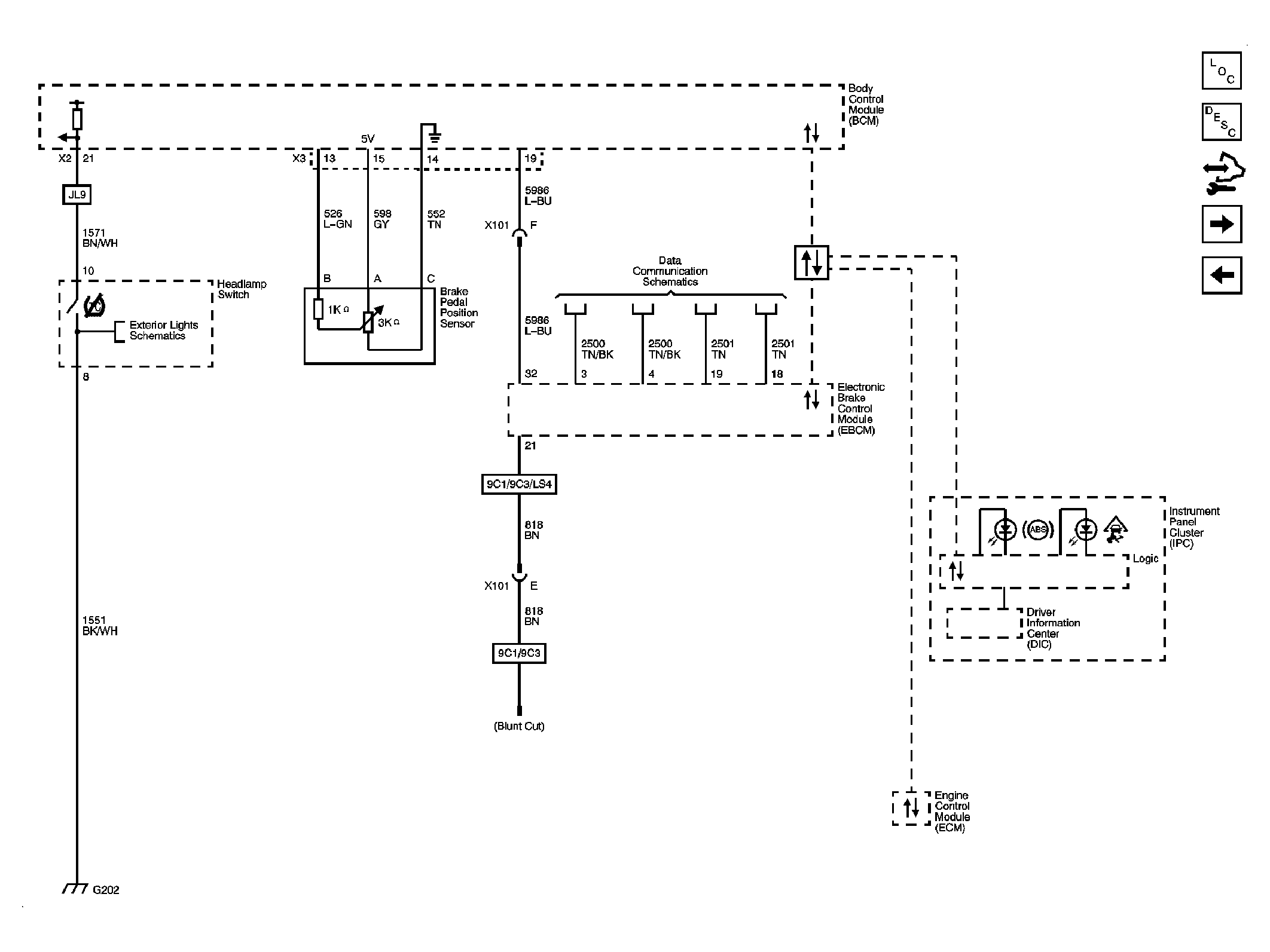

Fig 2: Indicators, ABS, and Traction Control Schematic

Courtesy of GENERAL MOTORS CORP.

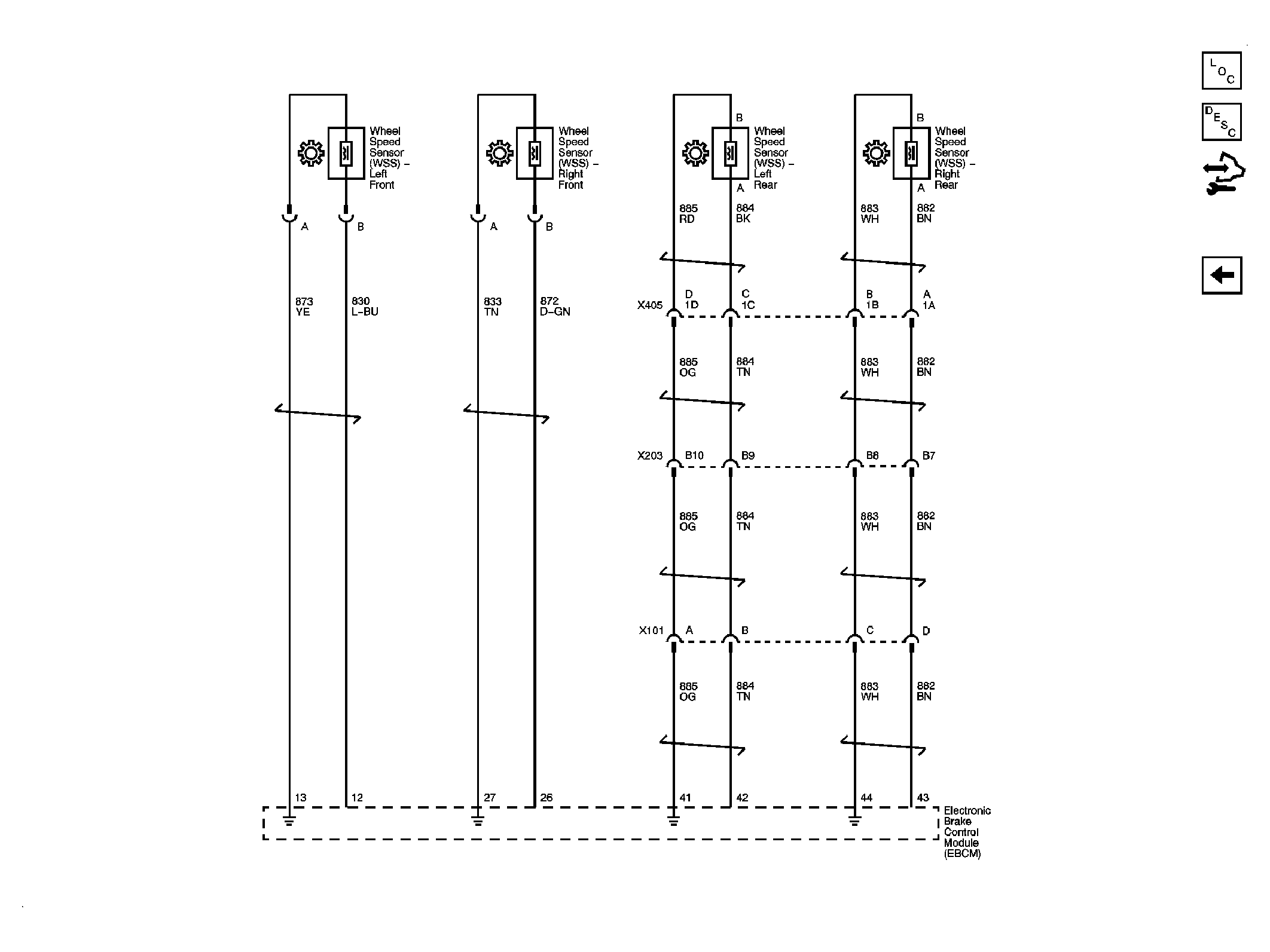

Fig 3: Wheel Speed Sensors Schematic

Courtesy of GENERAL MOTORS CORP.
