Antenna Cable Replacement

WARNING: This page is about a different car, the 2008 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

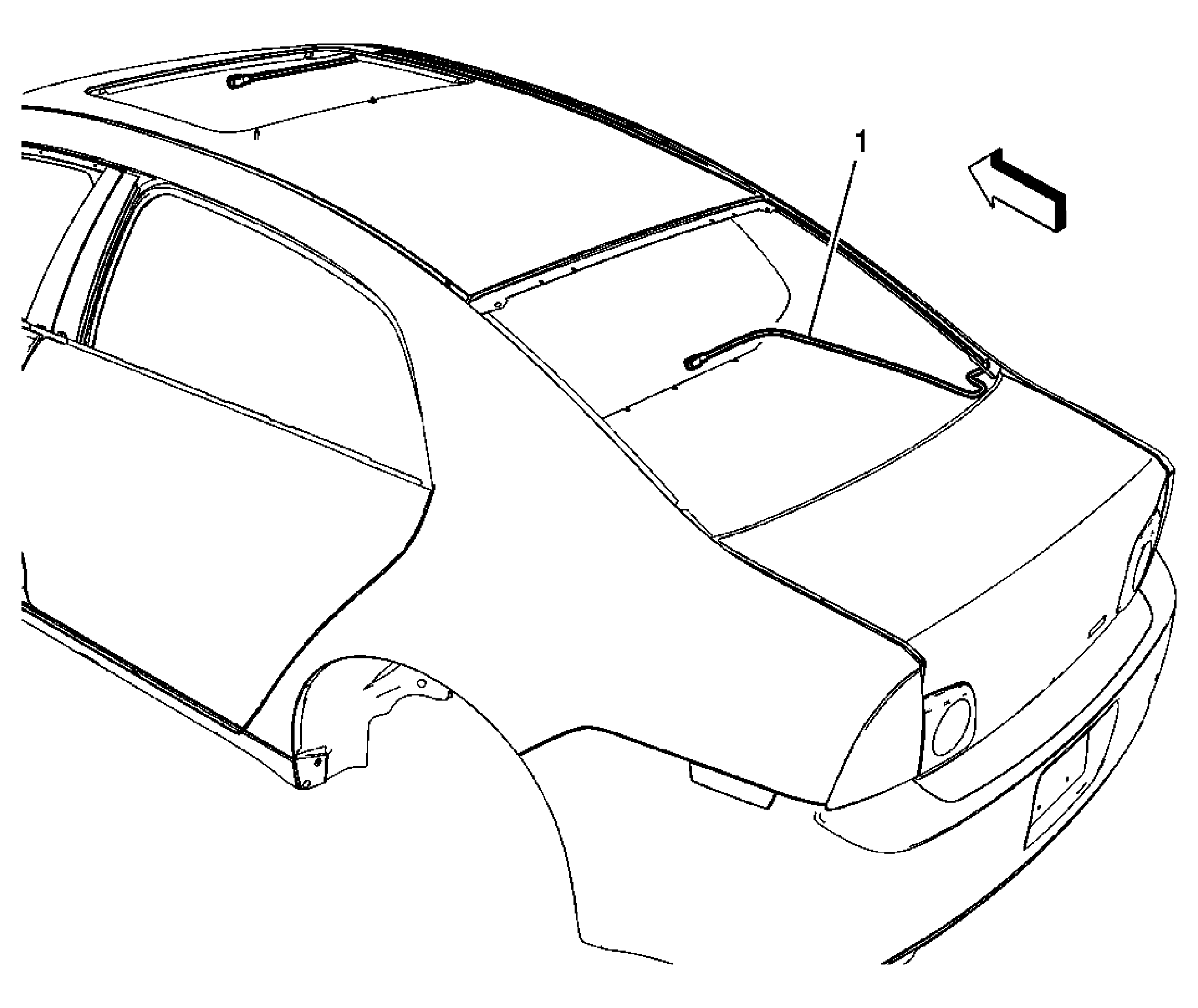

Fig 1: Locating Antenna Cable
GM2003011Courtesy of GENERAL MOTORS CORP.
Callout Component Name

Preliminary Procedures

  1. Remove the headlining trim panel. Refer to Headlining Trim Panel Replacement (with DE1) or Headlining Trim Panel Replacement (without DE1) .
  2. Remove the rear window shelf trim panel. Refer to Rear Window Shelf Trim Panel Replacement .
1 Antenna Cable
