Communication Interface Module Bracket Replacement

WARNING: This page is about a different car, the 2008 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

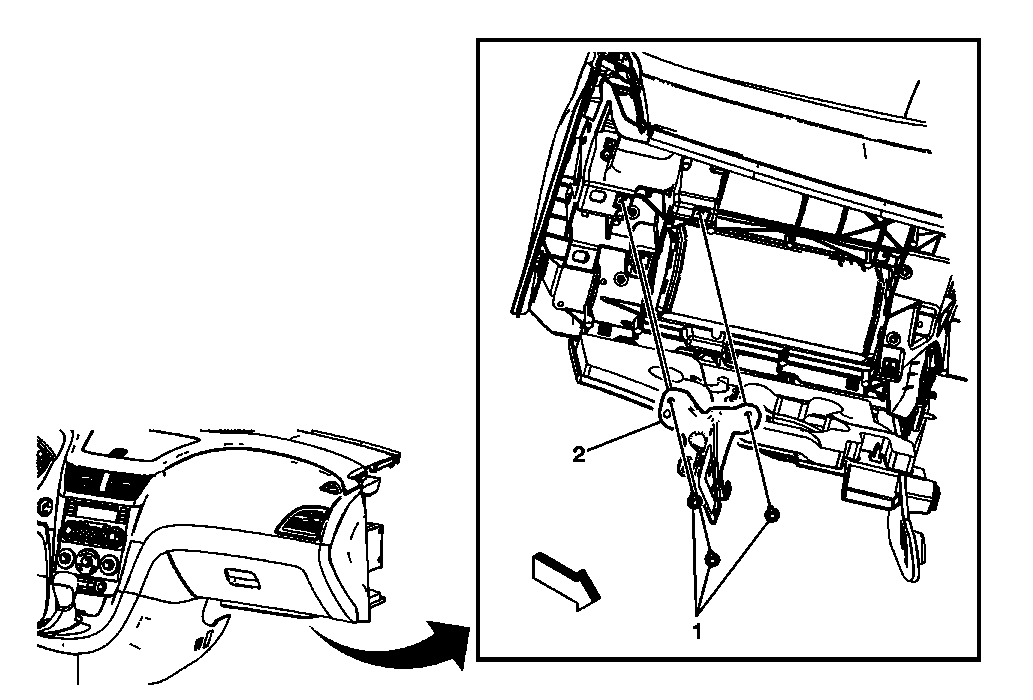

Fig 1: View Of Communication Interface Module Bracket

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Remove Communication Interface Module. Refer to Communication Interface Module Replacement .
1	Onstar Module Bolt (Qty: 3) NOTE: Refer to Fastener Notice . Tighten: 6 N.m (53 lb in)
2	Onstar Module Bracket
