Digital Radio Antenna Cable Replacement

WARNING: This page is about a different car, the 2008 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

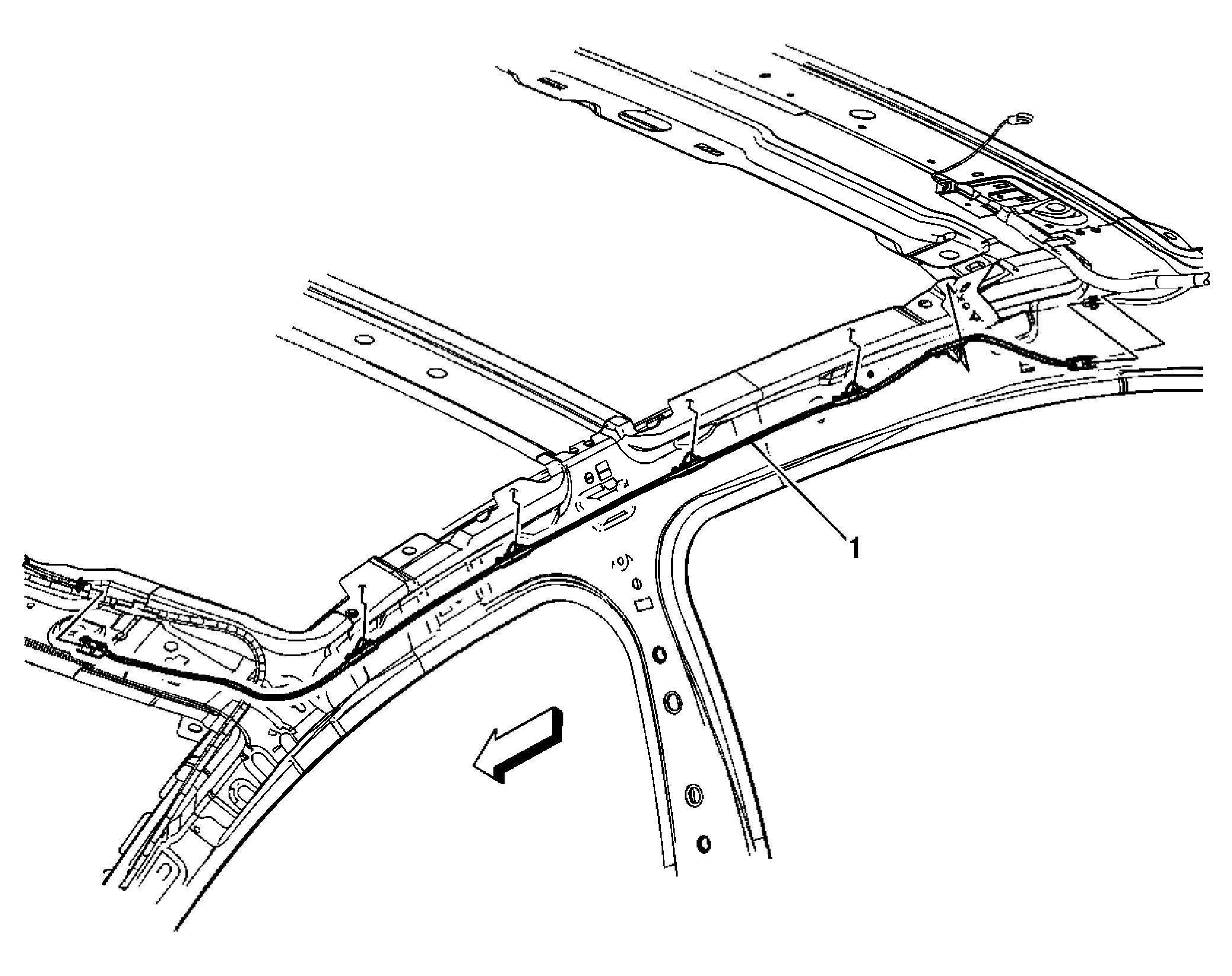

Fig 1: View Of Radio Antenna Cable

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure Lower the headliner with wiring harness attached. Refer to Headlining Trim Panel Replacement (with DE1) or Headlining Trim Panel Replacement (without DE1) . Remove the rear window shelf panel. Refer to Rear Window Shelf Trim Panel Replacement .
1	Digital Radio Coaxial Cable Procedure: Remove the coaxial cable from the front roof bow and the inner body side.

Callout

Component Name

Preliminary Procedure

Lower the headliner with wiring harness attached. Refer to Headlining Trim Panel Replacement (with DE1) or Headlining Trim Panel Replacement (without DE1) .
Remove the rear window shelf panel. Refer to Rear Window Shelf Trim Panel Replacement .

Digital Radio Coaxial Cable
Procedure:
Remove the coaxial cable from the front roof bow and the inner body side.
