Mobile Telephone Microphone Replacement
WARNING: This page is about a different car, the 2008 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

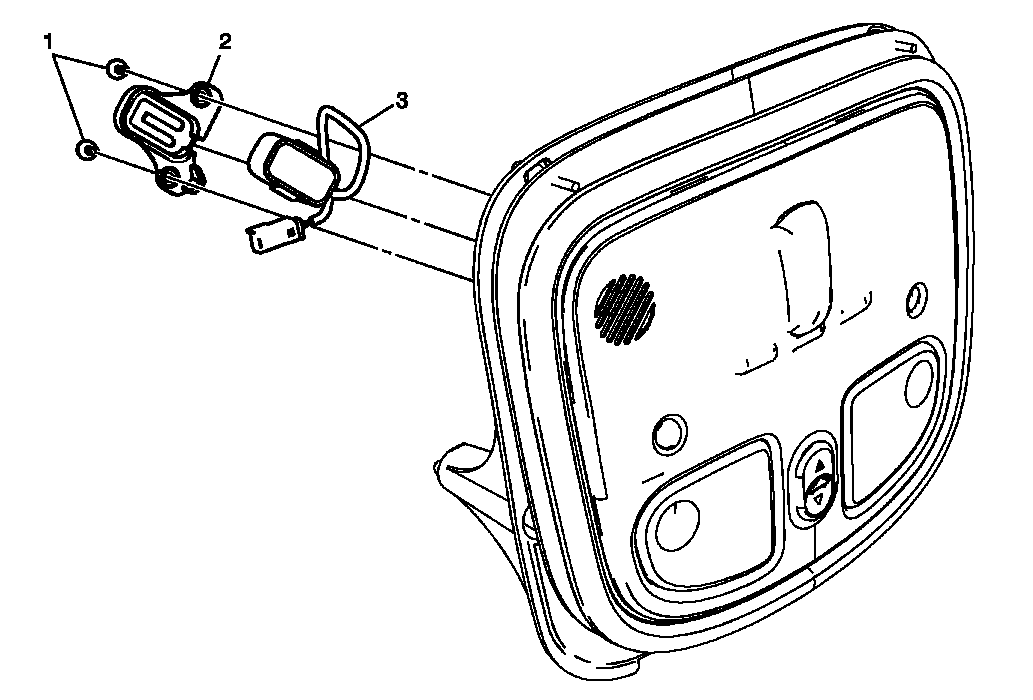

| Callout | Component Name |
|---|---|
| Preliminary Procedure: Remove Overhead Console. Refer to Roof Console Replacement . |
|
| 1 | Mobile Telephone Microphone Bracket Screw (Qty: 2)
NOTE:
Refer to Fastener Notice
.
Tighten: 2 N.m (18 lb in) |
| 2 | Mobile Telephone Microphone Bracket |
| 3 | Mobile Telephone Microphone |
