Radio Antenna Module Replacement
WARNING: This page is about a different car, the 2008 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

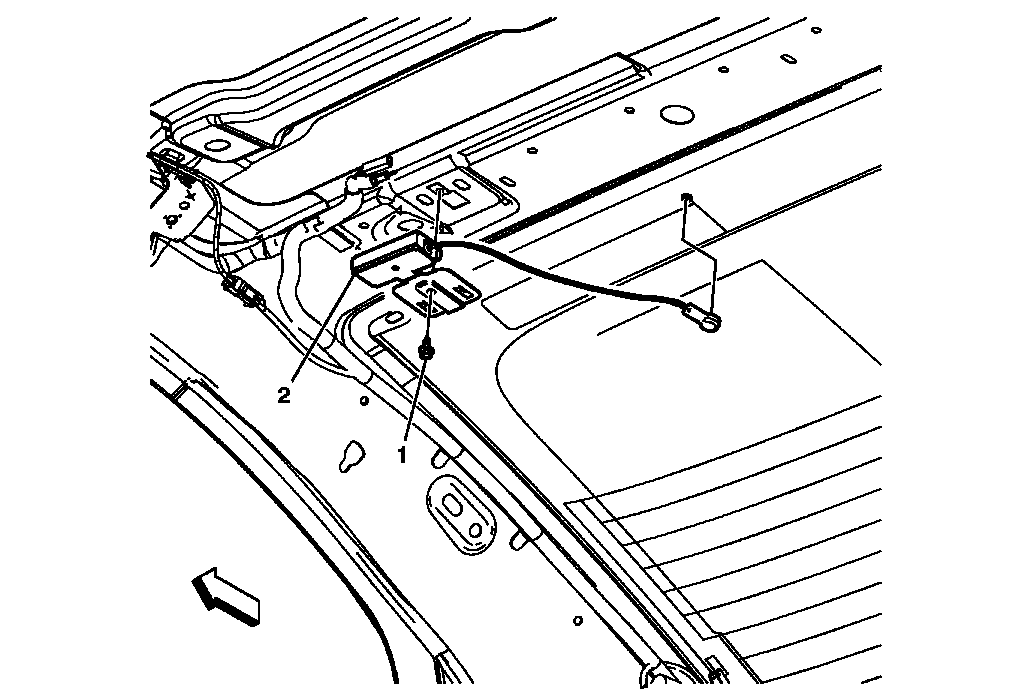

| Callout | Component Name |
|---|---|
| Preliminary Procedure: Lower the rear of the headliner. Refer to Headlining Trim Panel Replacement (with DE1) or Headlining Trim Panel Replacement (without DE1) . |
|
| 1 | Radio Antenna Module Screw
NOTE:
Refer to Fastener Notice
.
Tighten: 3 N.m (27 lb in) |
| 2 | Radio Antenna Module |
