Roof Side Rail Inflatable Restraint Module Replacement

WARNING: This page is about a different car, the 2010 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

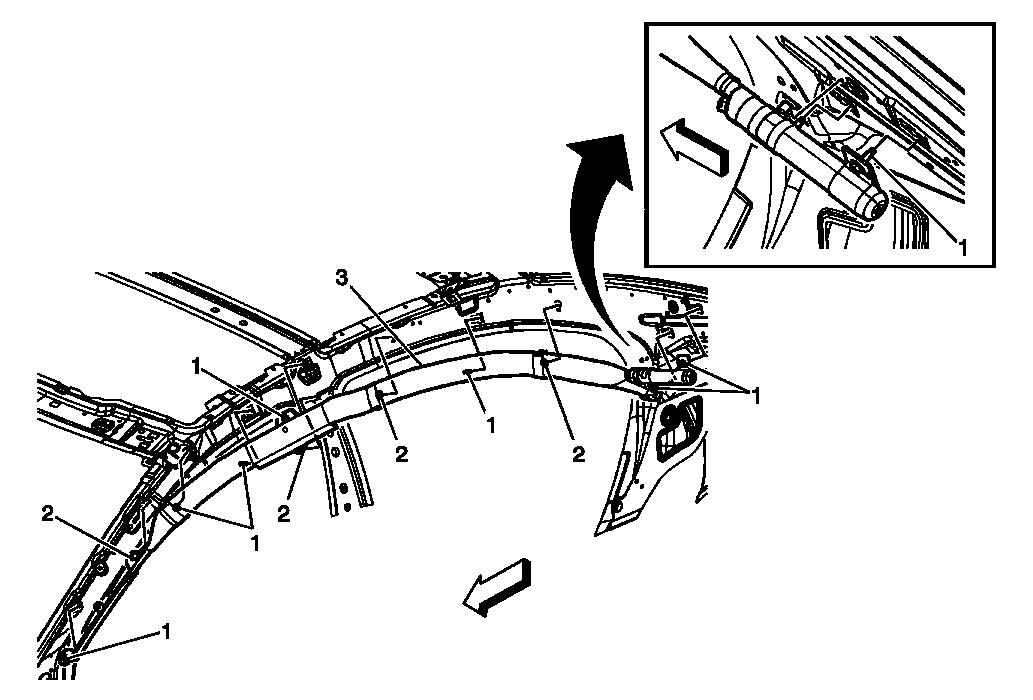

Fig 1: View Of Roof Side Rail Inflatable Restraint Module

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
WARNING: In order to prevent SIR deployment, personal injury, or unnecessary SIR system repairs, do not strike the door or the door pillar in the area of the side impact sensor (SIS). Turn OFF the ignition and remove the key when performing service in the area of the SIS. WARNING: When installing the roof rail airbag, do not twist or turn the airbag 360 degrees. Securing the roof rail airbag with an airbag twisted or turned 360 degrees may cause the airbag not to deploy correctly and could cause personal injury. WARNING: Refer to SIR Warning . WARNING: Refer to SIR Inflator Module Handling and Storage Warning . Preliminary Procedures Disable the SIR system. Refer to SIR Disabling and Enabling . Remove the windshield garnish molding. Refer to Windshield Pillar Garnish Molding Replacement . Remove the upper center pillar trim panel. Refer to Center Pillar Upper Garnish Molding Replacement . Remove the rear corner upper molding. Refer to Body Rear Corner Upper Garnish Molding Replacement . Remove the coat hooks. Refer to Coat Hook Replacement . Lower the side of the headliner. Refer to Headlining Trim Panel Replacement (without DE1) or Headlining Trim Panel Replacement (with DE1) .
1	Inflatable Restraint Roof Rail Bolt (Qty: 6) CAUTION: Refer to Fastener Caution . Tighten: 9 N.m (80 lb in)
2	Inflatable Restraint Roof Rail Retainer (Qty: 2)
3	Inflatable Restraint Roof Rail Module Assembly Procedure Release the connector position assurance (CPA) retainer. Disengage the remaining retainers that slide into the roof rail. Disconnect the electrical connectors. Ensure the roof rail inflator has been fully deployed before disposal. Refer to Inflatable Restraint Module Handling and Scrapping .
