Installation Procedure

WARNING: This page is about a different car, the 2010 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
    Fig 1: Identifying Upper Strut Nuts
    GM2010688Courtesy of GENERAL MOTORS CORP.
  1. Install the front strut assembly (2).
    2. CAUTION: Refer to Fastener Caution .
  2. Install the upper strut nuts (1) and tighten to 25 N.m (18 lb ft).

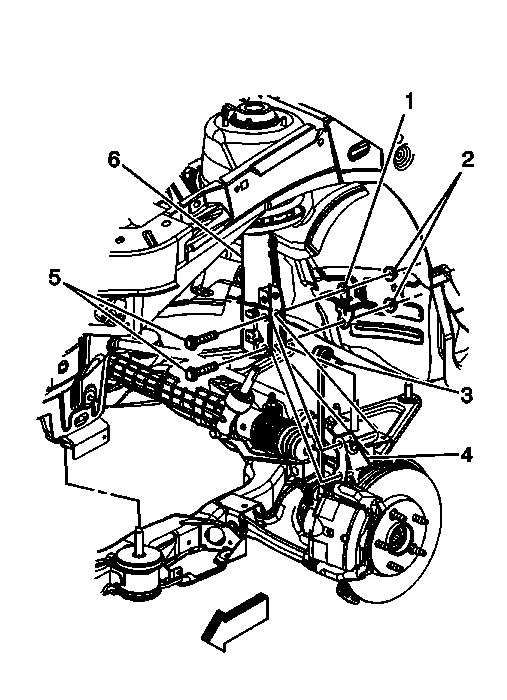

    3. Fig 2: Identifying Front Strut, Knuckle & Bolts
    GM2010684Courtesy of GENERAL MOTORS CORP.
  3. Insert the front strut (6) in the knuckle (4).
  4. Install the strut bolts (5).
  5. Install the wheel speed sensor bracket (1).
  6. Install the front strut nuts (2) on the bolts (5) and tighten to 120 N.m (89 lb ft).
    7. Fig 3: Identifying Wheel Speed Sensor Electrical Connector
    GM1919656Courtesy of GENERAL MOTORS CORP.
  7. Reconnect the wheel speed sensor electrical connector at the wheel speed sensor bracket, if equipped.
  8. Install the stabilizer shaft link (3). Refer to Stabilizer Shaft Link Replacement
  9. Remove the support from the lower control arm.
  10. Install the front tire and wheel assembly. Refer to Tire and Wheel Removal and Installation .
  11. Lower the vehicle.
  12. Check the front end alignment specifications. Refer to Wheel Alignment Specifications .
