Front of Vehicle/Engine Compartment Component Views

Fig 1: View Of Front Of Vehicle

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Marker Lamp - Right Front
2	Headlamp - Low Beam - Right
3	Headlamp - High Beam - Right
4	Park/Turn Signal Lamp - Right Front
5	Park/Turn Signal Lamp - Left Front
6	Headlamp - High Beam - Left
7	Headlamp - Low Beam - Left
8	Marker Lamp - Left Front
9	Fog Lamp - Left Front
10	Front Fascia
11	Fog Lamp - Right Front

Fig 2: Identifying Under Hood Latch Trim Panel Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Ambient Air Temperature Sensor
2	Hood Ajar Switch

Fig 3: View Of Left Side Of Right Headlamp Assembly (9C1, 9C3)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Headlamp Flasher Module (6J7)

Fig 4: Identifying LF Engine Compartment

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Mass Air Flow (MAF)/Intake Air Temperature (IAT) Sensor
2	Brake Booster Vacuum Sensor (LZ8/LS4)
3	Windshield Wiper Motor
4	Electronic Brake Control Module (EBCM)
5	A/C Refrigerant Pressure Sensor
6	Transmission Control Module (TCM)
7	Engine Control Module (ECM)
8	G101
9	Inflatable Restraint Front End Sensor - Left

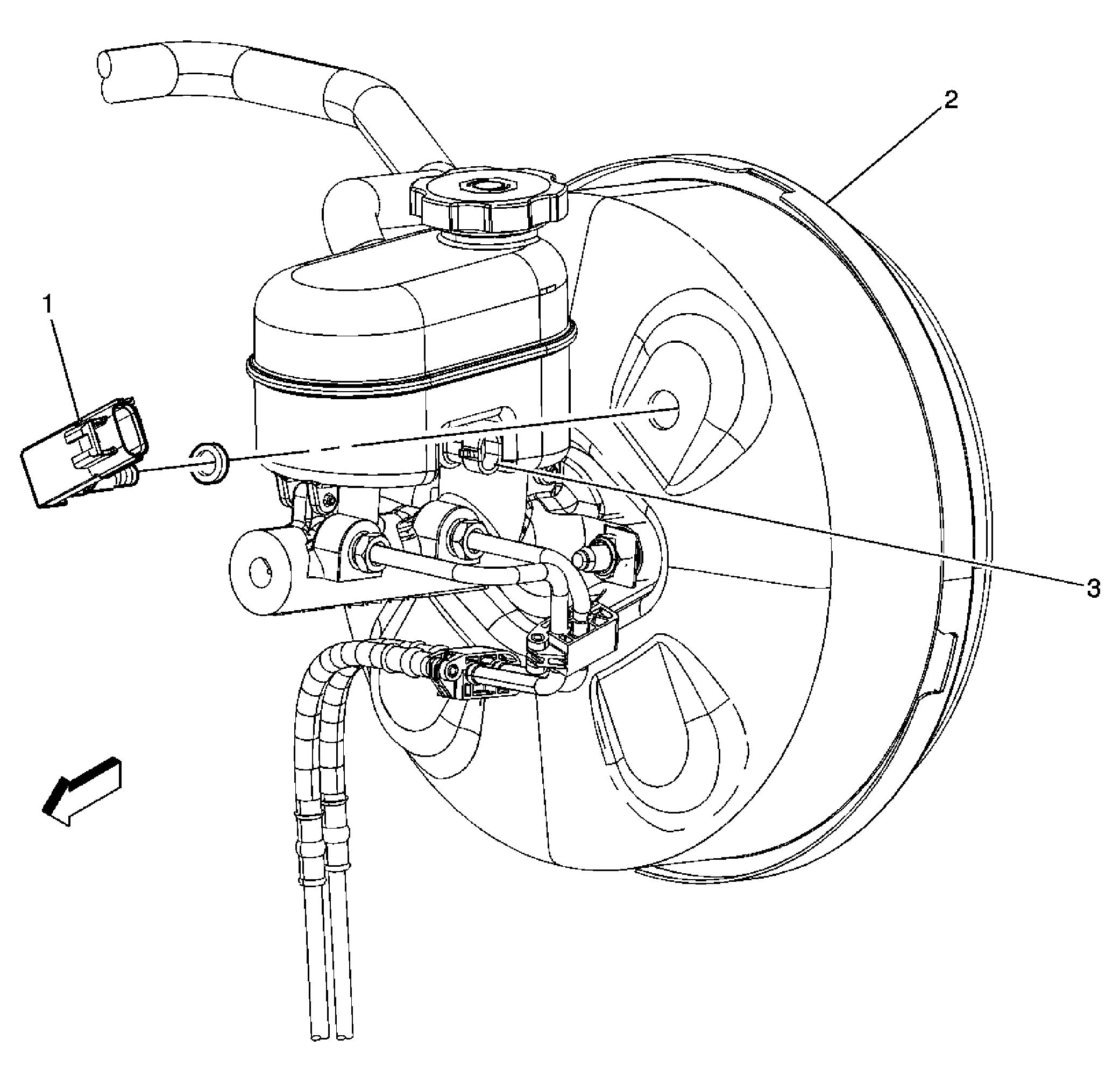

Fig 5: Identifying Left Rear of Engine Compartment

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Brake Booster Vacuum Sensor (LZ8/LS4)
2	Brake Booster
3	Brake Fluid Level Switch

Fig 6: Identifying RF Engine Compartment

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Fuse Block - Underhood
2	Generator
3	Brake Fluid Level Switch
4	Battery
5	Inflatable Restraint Front End Sensor - Right
6	G100
7	Horn Assembly
8	Windshield Washer Fluid Container
9	Windshield Washer Fluid Level Switch
10	Windshield Washer Fluid Pump
11	Battery Current Sensor
12	G102

Fig 7: Identifying Battery Attachments (LZE, LZ4, LZ9)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	G102
2	X105
3	Fuse Block - Underhood Positive Battery Cable Terminal
4	Battery
5	Battery Current Sensor

Fig 8: View Of Base Of A-Pillars (9C1, 9C3)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Spot Lamp - Left (7X6, 7X7)
2	Spot Lamp - Right (7X7)
